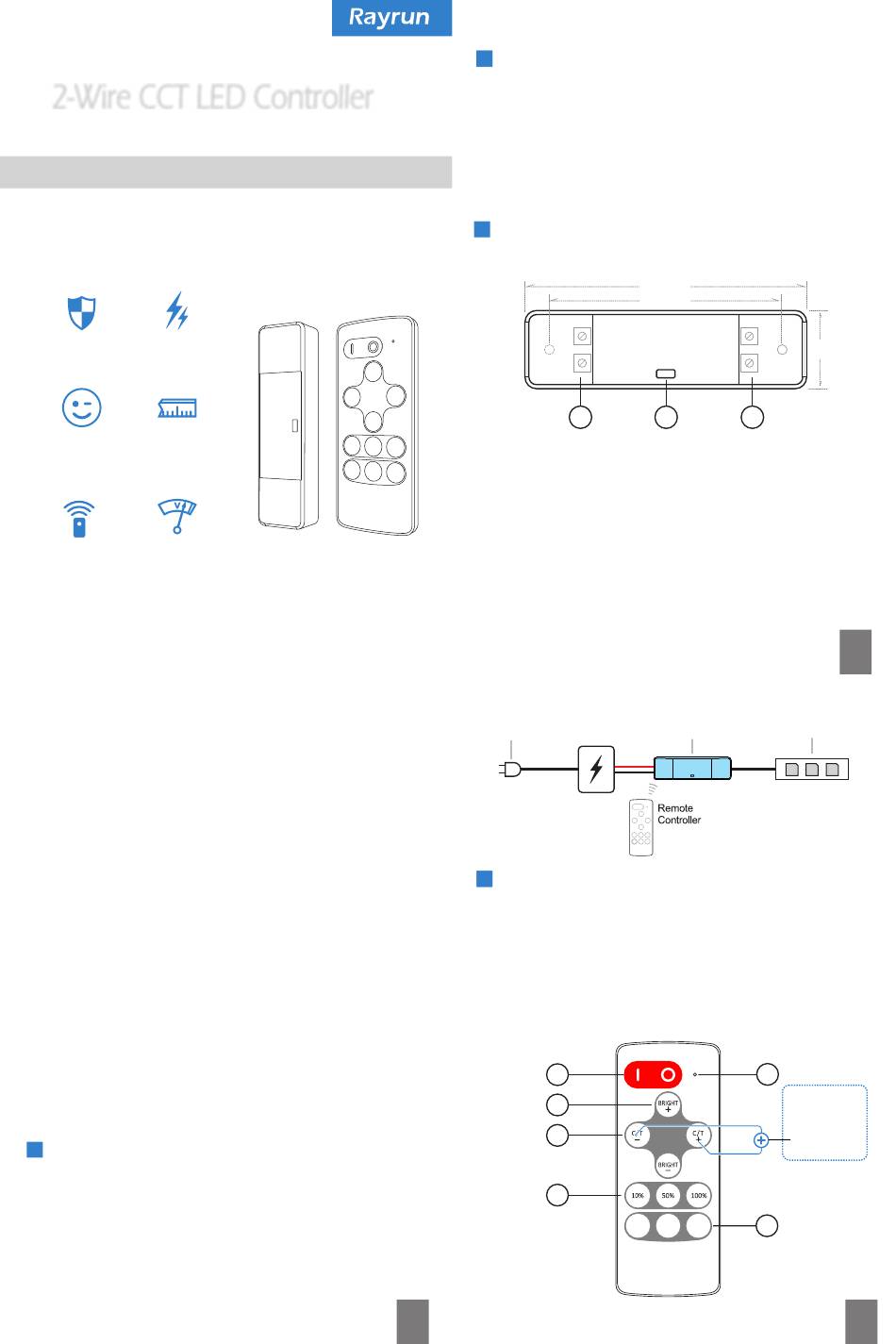

Wireless Remote Control
2-Wire CCT LED Controller
Model: N21
Full Protection High Power
Easy Operation Compact Size
Wide Voltage Range

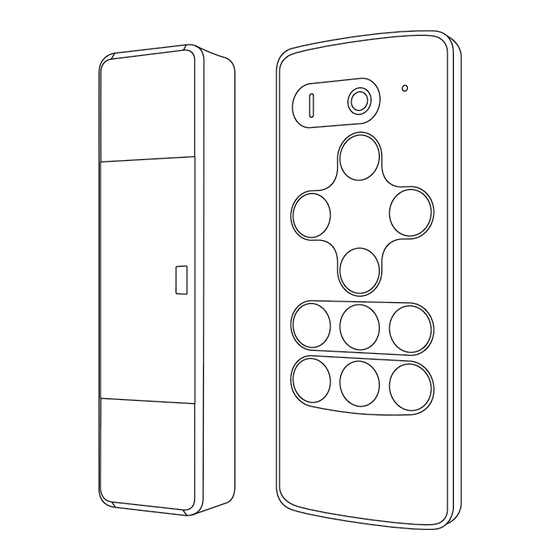

Wireless Remote
2. Work status indicator
This indicator shows all working status of the
controller. It displays different events as following:
Steady green: Normal working.
Single green blink: Command received.
Long single yellow blink: Brightness or CCT limit.
Red flash: Overload protection.
Yellow flash: Over heat protection.
Green flash 3 times: New remote controller paired.
3. LED output
Connect LED loads to this terminal. Install LED positive
cable into the terminal marked with '+' and negative LED
cable into the terminal marked with '-'. Please make sure
the LED rated voltage is same as the power supply and
each channel's maximum load current is in range of the
controller's rated current.
If the light color temperature is reversed from the
remote controller operation, Please reverse the + and -
cable to correct.
Wiring
Please connect the controller output to LED loads
and power supply to the controller power input. The
power supply voltage must be same as the LED load's
rated voltage. Check all cables to be well connected
and insulated before power on.
Introduction
N21 LED controller is designed to drive 2-wire tunable
white (CCT) constant voltage LED products in voltage range
of DC5-24V. With the RF remote controller, user can setup
LED brightness and color temperature with + - and
shortcut keys.
Function & Size
1. Power supply input
Install positive power cable into the terminal marked
with '+' and negative power cable into the terminal marked
with '-'. The controller can accept DC power from 5V to
24V, the output voltage is the same as the power supply,
please make sure the LED rated voltage is same as the
power supply.
To 110/230
5-24V DC output
AC power Power supply
Functions
4. Turn ON / OFF
Press 'I' key to turn on unit or press 'O' key to turn off.
The controller will memorize the on/off status and will
restore to the previous status on next power on.
Please use remote controller to turn on the unit if it
was switched to off status before power cut.
4
5
6
7
2
87mm
72mm
1 2
N21 LED
Controller
5-24V DC 5-24V Driving
WARM NEUTRAL COLD
24mm
3
1 1
2-wire
CCT LED Strips
9
Press in 10
seconds once
receiver powered
Pair new
remote
8
3
