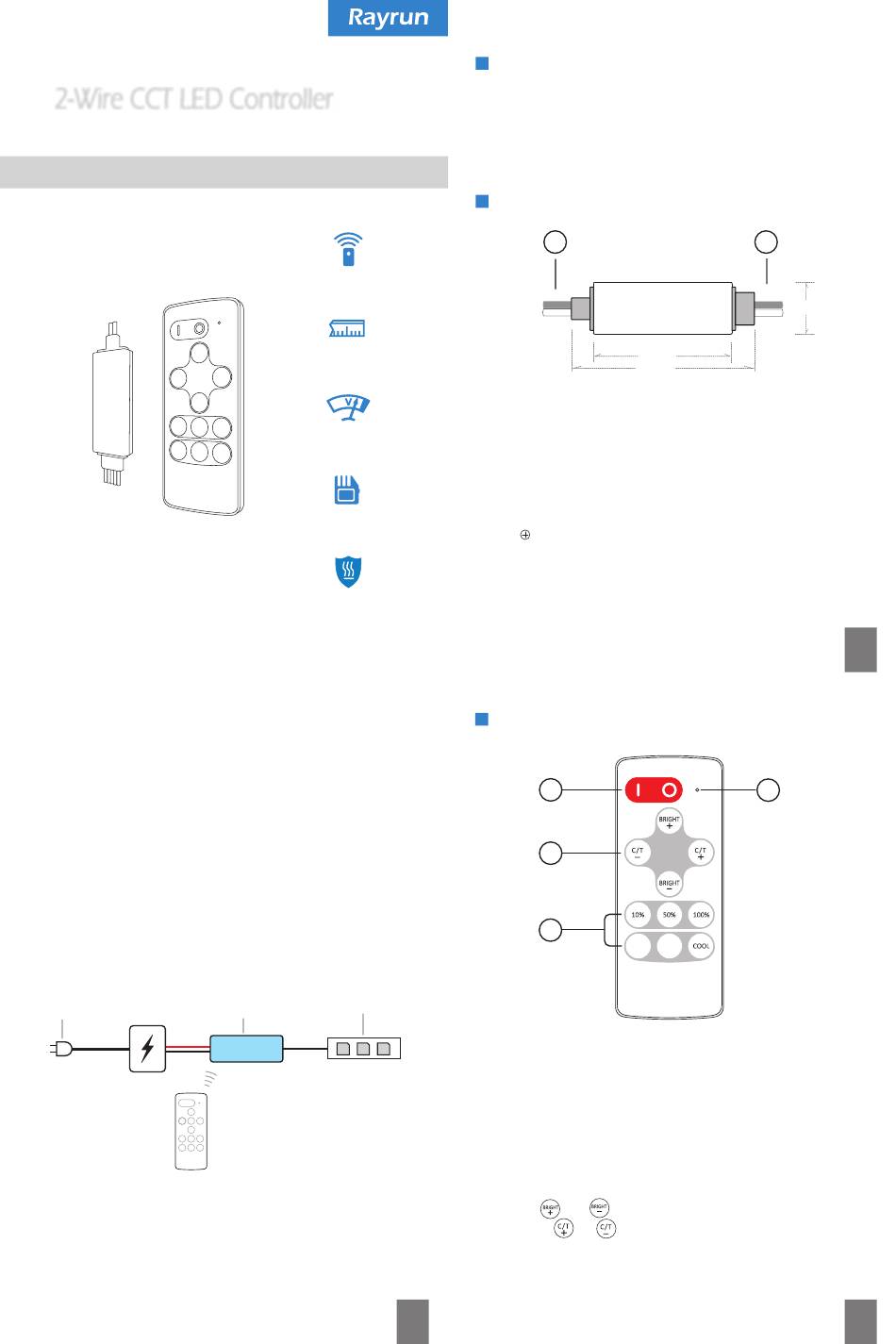

Advanced RF Remote
2-Wire CCT LED Controller
Model: T122(-H)
according polarity. Please make sure the LED rated voltage is
same as the power supply and the maximum load current is
below the controller rated current.
CAUTION! The controller might be permanently
damaged if output cables short circuit. Please ensure the
cables are well insulated to each other.
3. Wiring diagram
Please connect the controller output to LED loads and
power supply to the controller power input. The output
voltage of power supply must be same as the LED load's
rated voltage. Check all cables to be well connected and
insulated before power on.
To 110/230
5-24V DC output
AC power
Power supply
5-24V DC
Wireless Remote
Ultra Compact
Wide Voltage Range
Memory Function
Overheat Protection
T122 LED
LED Loads
Controller
5-24V Driving
LED Controller
Remote
Controller
Introduction

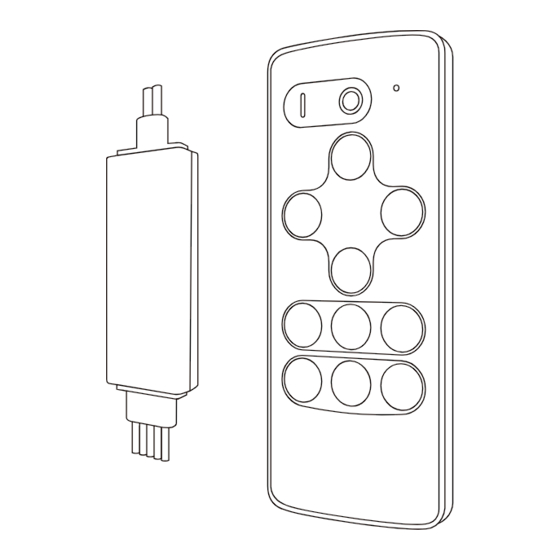

T122 tunable white LED controller
wire tunable white (CCT) constant voltage LED products in
voltage range of DC5-24V.
remote controller, user can setup LED brightness and white
color temperature via the remote controller.
Receiver & wiring
1
1. Power supply input
The controller supply voltage range is from DC 5V to 24V.
Please refer to the print on the controller for cable polarity.
The output voltage is at the same level as the power voltage,
please make sure the power supply voltage is correct and the
power wattage is capable for the load wattage. Please be
noted the positive power cable is directly connected to the
output cable inside the controller.
2. LED output
Connect to LED loads. Please refer to the print on the
controller for cable polarity and connect LED load with
Remote controller function
4
5
6
4. Turn ON / OFF
Press 'I' key to turn on controller or press 'O' key to turn
off. The controller will memorize the on/off status and will
restore to the previous status on the next power on. Please
use remote controller to turn on the unit if it was switched to
off status before power cut.
5. Brightness and color temperature adjust
Press
and
press these
down.
2
is designed to drive 2-
The receiver works with the
38mm
50mm
WARM
NEUTRAL
keys to adjust brightness up and down,
or
key to adjust color temperature up and
2
15mm
* H version picture
1
7
3
