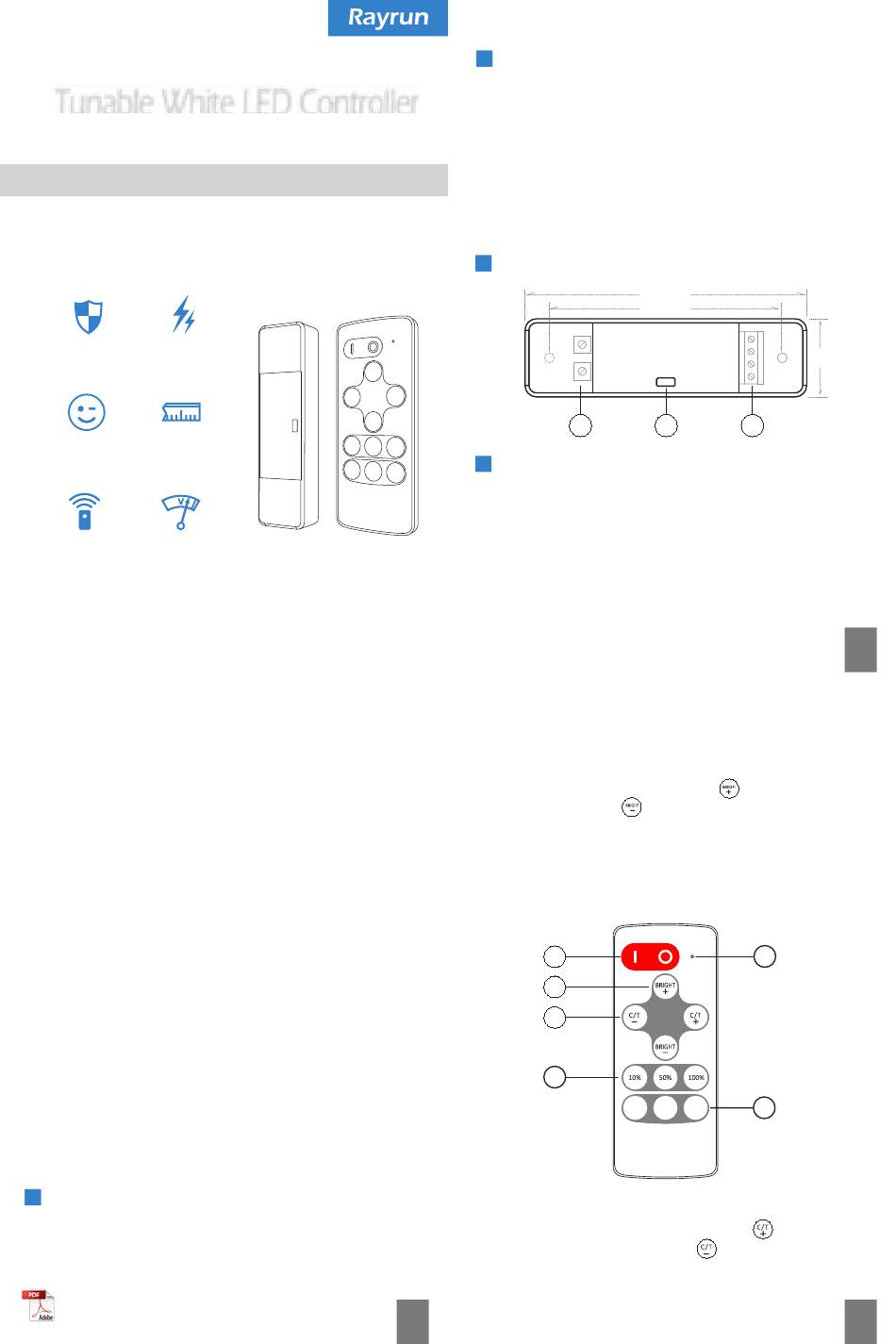

Rayrun N20 User Manual

Wireless Remote Control
Tunable White LED Controller
Model: N20
Full Protection High Power
Compact Size
Easy Operation
Wireless Remote
Wide Voltage Range
2. LED output
Connect LED fixtures to this terminal. Install LED
positive cable into the terminal marked with '+' and cool /
warm white negative LED cable into the terminal marked
with '-' at cool and warm marked section. The two '+'
terminals are connected inside the controller. Please make
sure the LED rated voltage is same as the power supply
and each channel's maximum load current is below the
controller rated current.
The controller will run into protection if the output
been overloaded or short circuited. The indicator will flash
red color and stop working in this case, Please check the
wiring and load current to remove the fault.
3. Work status indicator
This indicator shows all working status of the
controller. It displays different events as following:
Steady green: Normal working.
Single green blink: Command received.
Long single green blink: Mode or color cycle edge.
Long single yellow blink: Brightness or speed limit.
Red flash: Overload protection.
Yellow flash: Over heat protection.
Green flash 3 times: New remote controller paired.
Functions
4. Turn ON / OFF
Press 'I' key to turn on unit or press 'O' key to turn off.
Main unit will memorize the on/off status and will restore
to the previous status on next power on.
Introduction
N20 tunable white LED controller is designed to drive
constant voltage LED products with common anode
connection in voltage range of DC5-24V. The main unit
works with a RF remote controller, user can setup white
tunable LED brightness and color temperature on the
remote controller, the main unit is powered by DC power
supply and receives remote controller commands to drive
LED fixtures.
Dimension
Wiring & Indicator
1. Power supply input
Install positive power cable into the terminal marked
with '+' and negative power cable into the terminal marked
with '-'. The controller can accept DC power from 5V to
24V, the output voltage is the same as the power supply, so
please make sure the LED rated voltage is same as the
power supply.
Please use remote controller to turn on the unit if it
was switched to off status before power cut.
5. Brightness control
Adjust overall brightness. Press
brightness and press
temperature will keep unchanged when adjust brightness.
The controller applies brightness gamma correction on
dimming control, makes the brightness tuning more
smooth to human sense.
4
5
6
7
6. Color temperature control
Adjust LED color temperature. Press
the color temperature and press
overall brightness will keep unchanged when adjusting
color temperature.
2
87mm
72mm
1 3
to increase
to decrease. The color
WARM NEUTRAL COLD
to decrease. The
24mm
2
1 1
9
8
to increase
3
