Rayrun RQ210 Series User Manual

RF Remote Control
4-CH LED Controller
RQ210 Series
RGBW 4-ch Output
Independent White Control
Plenty Preset Color

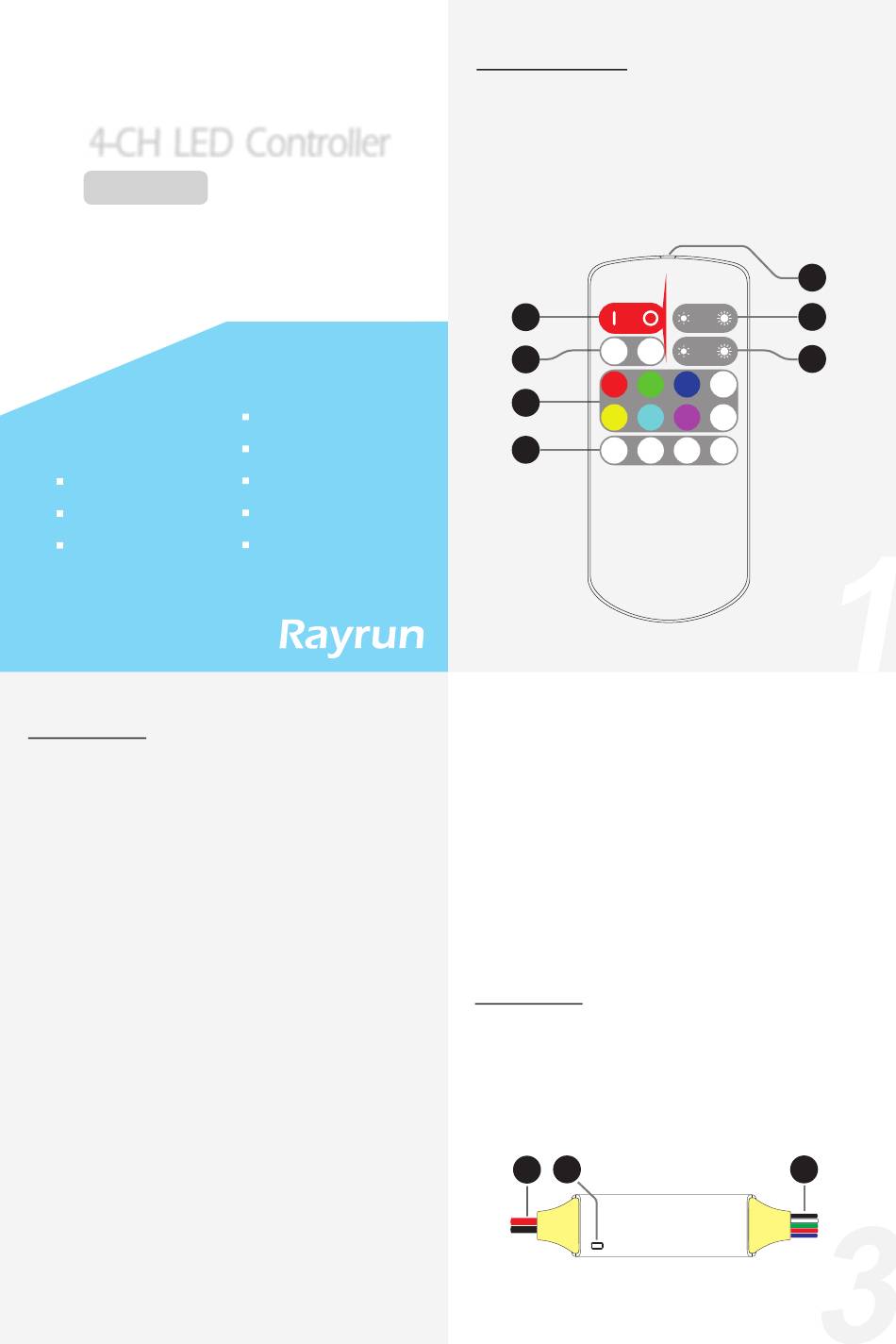

Functions
1. Turn On/ Standby
Press 'I' key to turn on unit or press 'O' key to turn off. At power
on moment, unit will automatically restore to previous status
before power cut.
2. White Mode
These two keys control white LED working mode. Press
'WHITE ONLY' key, all RGB color will turn off and only white
LED lights up. Press 'WHITE OFF' key, the white LED will turn
off and RGB LED remain it's previous status.
3. White Brightness
Adjust white LED brightness. Press the right side key to
increase white LED brightness and the left side key to
decrease.
4. Static RGB Color Selection
These keys control the RGB static color.
a) Press color printed keys will set the RGB LEDs to
correspond color light as the key. There are 6 shortcut color
keys to make direct color selection.
b) Press 'COLOR+' and 'COLOR-' to scroll over all preset static
colors, including the 6 shortcut key colors.
5. Color Brightness
Adjust RGB color brightness. Press the right side key to
increase RGB LED brightness and the left side key to decrease.
User's Manual
Full Protection
Waterproof Option
RF Remote Controller
Ultra Slim Design
Dynamic Color Mode
2
Introduction
Thank you for purchasing our products. RQ210 4-ch RGBW
LED controller is designed to drive constant voltage LED
products with common anode connection in voltage range of
DC6-24V. It contains a main unit and a RF remote controller,
user can setup white brightness or RGB color and brightness
independently, to get flexible mixing of RGB and white or run
color dynamic modes.
1
WHITE
2
ONLY
4
6
MODE
-
6. RGB Dynamic Modes Control
These keys control the RGB dynamic modes.
a) Press 'MODE+' and 'MODE-' key to select preset dynamic
modes.
b) Press 'SPEED+' and 'SPEED-' to control the dynamic
mode running speed.
7. Remote Controller Indicator
This blue indicator will blink when remote controller works.
The remote controller works at radio frequency, the signal can
pass through barrier, so it's not necessary to aim at the
controller when operate the remote.
Installing
8. Power Supply
The red power cable should be connected to power positive
and black to negative. The controller unit can work from DC
6V to 24V, P lease make sure the power supply voltage is
same as the LED load and the power is capable for the load
wattage.
10
8
7
3
WHITE
WHITE
COLOR
5
OFF
COLOR
+
COLOR
-
MODE SPEED SPEED
-
+ +
9
