Rayrun P10 User Manual

Wireless Remote Control
Single Color LED Controller
Model: P10(-S)
Full Protection High Power
Waterproof Compact Size
Wireless Remote Wide Voltage Range
2. LED output
Connect constant voltage LED loads. Please connect
red cable to LED+ and black cable to LED-. Please make
sure the LED rated voltage is same as the power supply
and each channel's maximum load current is in range of
the controller rated current.
3. Work status indicator
This indicator shows all working status of the
controller. It displays different events as following:
Steady blue: Normal working.
Short white blink: Command received.
Long single white blink: Mode cycle edge.
Single yellow flash : Edge of the content.
Red flash: Overload protection.
Yellow flash: Overheat protection.
White blink for 3 times: New remote paired.

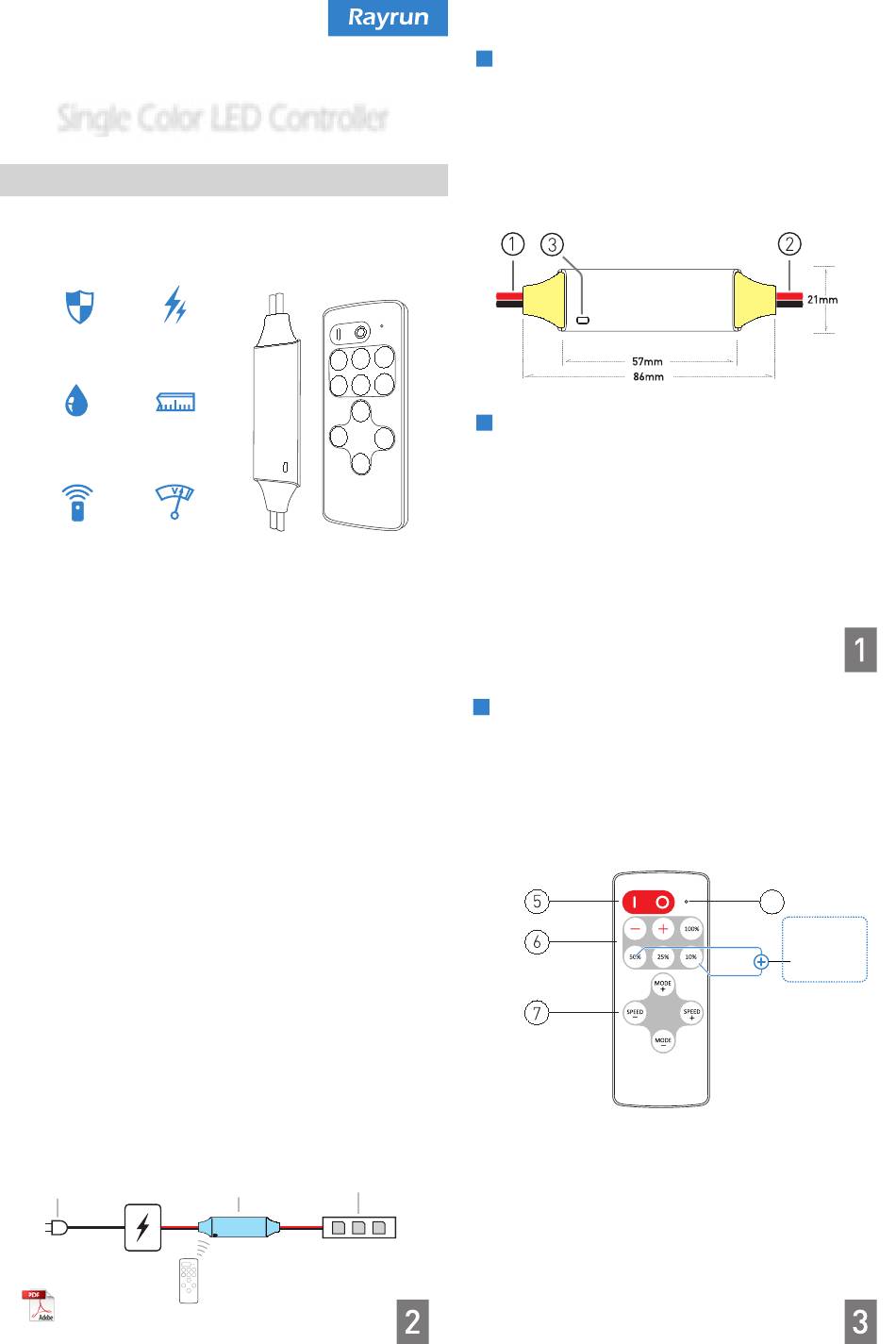

4. Wiring diagram
Please connect the controller output to LED loads
and power supply to the controller power input. The
power supply voltage must be same as the LED load's
rated voltage. Check all cables to be well connected
and insulated before power on.
To 110/230 5-24V DC output
AC power
Power supply
5-24V DC
Constant voltage
P10 LED
LED load
Controller
5-24V Driving
Remote
Controller
Introduction

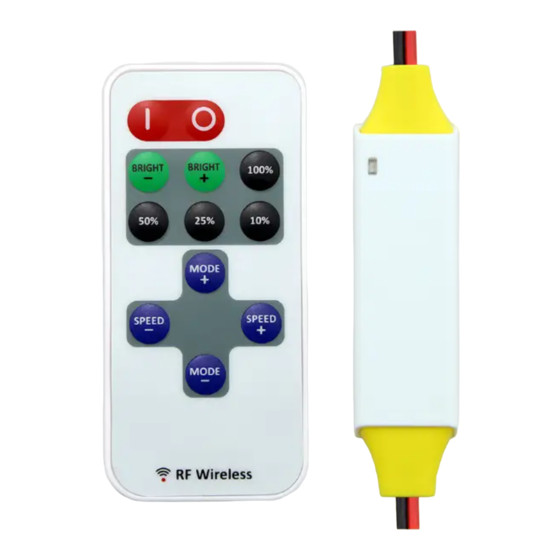

P10 single color LED controller is designed to drive
constant voltage LED products in voltage range of DC5-
24V. The main unit works with a RF remote controller, user
can setup LED brightness and dynamic modes on the
remote controller. The main unit is powered by DC power
supply and receives remote controller commands to drive
LED fixtures.
Wiring & Indicator
1. Power supply input
The controller supply voltage range is from DC 5V to
24V. The red power cable should be connected to power
positive and black to negative. (For other cable color,
please refer to the labels). The LED output voltage is at
same level as the power voltage, please make sure the
power supply voltage is correct and the power rating is
capable for the load.
Functions
5. Turn ON / OFF
Press 'I' key to turn on unit or press 'O' key to turn off.
Controller will memorize the on/off status and will restore
to the previous status on next power on.
Please use remote controller to turn on the unit if it
was switched to off status before previous power cut.
6. Brightness control
Press '+' key to increase brightness and press '-' key
to decrease. There are 4 brightness shortcut key to set
brightness to 100%, 50%, 25% and 10% of full brightness.
The controller applies brightness gamma correction on
dimming control, makes the brightness tuning more
smooth to human sense. The brightness shortcut level is
valued to human sense, and not proportional to the LED
output power.
8
Press within 10
seconds after
receiver powered on
Pair new
remote
