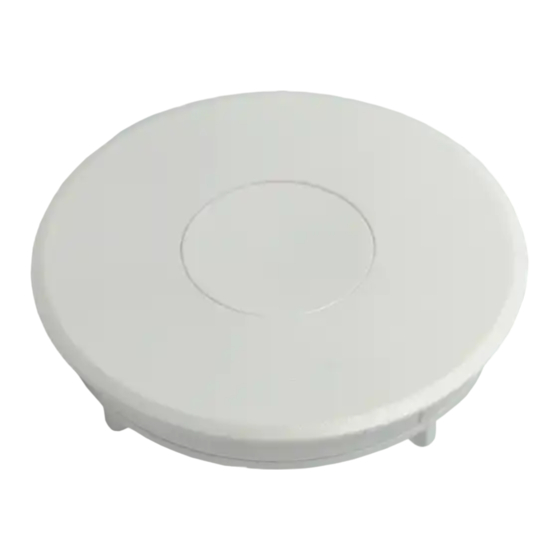

Rayrun BR11 Quick Installation Manual

Umi Smart Wireless
LED Remote Controller
Model: BR11
Quick installation guide



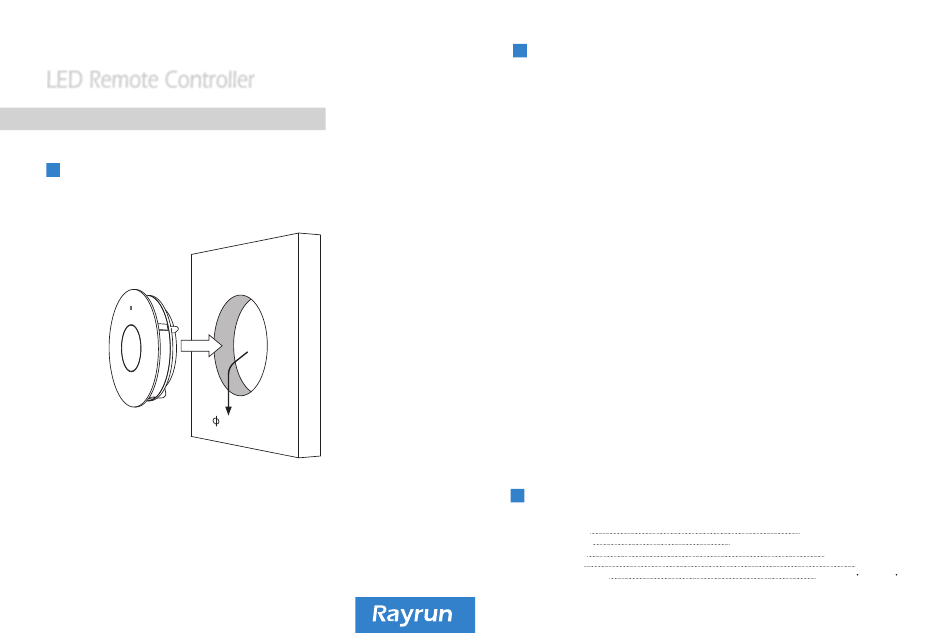

3 5 m
M i n i m
u m
d e
General Purpose
Dimming &
Color Control
m
h o l
e ,

p t h
9 m
m .

Operation

1. Pair and unpair to receiver

The remote controller needs to be paired to receiver to work. User can pair up to 5
remote controllers to one receiver and each remote can be paired to any receiver.
To pair or unpair remote to the receiver, please operate with 2 steps:
1). Cut off the power of receiver and power on again after more than 5 seconds.
2). Within 10 seconds after receiver powered on, Press the button for 5 times
continuously and quickly to pair the remote; To unpair the remote, please press 7
times instead of 5.

2. Turn on/off the lights

Single press the button to turn on/off the lights.

3. Dim up and down

Hold press the button to dim up or down. The dimming direction will change on each
hold pressing. The dimming will stop once brightness reach top or bottom limit.

4. Adjust color

For working with multi-color receivers, user can double click the button to activate
the color adjusting mode. The indicator will flash at color adjusting mode, at this mode
the hold pressing will swap to color adjusting shortly. The hold pressing operation will
swap back to dimming function after no operation for a while.

5. Change RGB/White mixing mode

For RGB+White and RGB+CCT application, user can switch the color mixing mode
between white(CCT), RGB and White(CCT)+RGB mode.
To click the button 3 times rapidly, the color mixing mode on receiver will change.

Specification

Working voltage
Wireless protocol
Frequency band
Wireless power
Working temperature
DC 3V, CR2032 battery
Umi protocol based on SIG BLE Mesh
2.4GHz ISM band
< 7dBm
-20-55 C(-4-131 F)
