Technical Support and E-Warranty Certificate
www.vevor.com/support

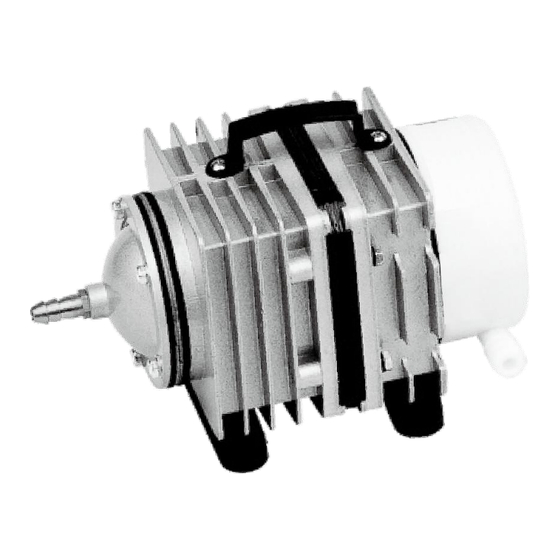

ELECTRICAL MAGNETIC AIR PUMP
MODEL: ACO-005
We continue to be committed to providing you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represent an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and do not necessarily mean to cover all categories of tools offered by us. You are
kindly reminded to verify carefully when you are placing an order with us if you are actually
saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR ACO-005
Summary of Contents for VEVOR ACO-005
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ELECTRICAL MAGNETIC AIR PUMP MODEL: ACO-005 We continue to be committed to providing you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 3 IMPORTANT SAFEGUARDS WARNING： Read all safety warnings, instructions, illustrations and specifications provided with this pond aeration. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. Basic Safety Information: 1. Pulling or dragging the product with the power line is not allowed. 2.
- Page 4 gases that can corrode metals or exert chemical charges. Check the compatibility of the gas with the materials of the electrical magnetic air pump and its accessories. Always use protective gloves and eyewear when handling corrosive materials. 12. Do not use a damaged plug or outlet, as this can cause electrical shock or fire.
-
Page 5: Scope Of Use
INSTRUCTION MANUAL PREFACE Dear Customers: Many thanks for your choice of ACO series magnetic air pump. For more efficient performance and safety, please kindly read this manual carefully and keep it good for future reference. Hope the air pump could satisfy you well. -
Page 6: Directions For Use
DIRECTIONS FOR USE Installation and connection instructions: The air pump is plugged in first, the hose is plugged in the air pump, the distributor is plugged in the hose, the soft tube is plugged in the distributor, and the stop valve is plugged in the soft tube。 Air pump Connecting hose Air distributor... - Page 7 The working environmental temperature should be within 0 ℃~35 ℃, and maintaining good ventilation and smoothness to prevent excessive temperature rise. The air pump should be prevented from being rain-drenched and soaked with water, not in the heat of the sun or the dusty environment.
- Page 8 If you find an electricity leak, please cut off the power at once. You should use it after it is repaired. The pump must be installed flatly 20 centimeters above the water level and kept immovable in order to prevent liquid from flowing back and the pump from breaking.
- Page 9 You should clear the filter sponges at least once every month. The general acreage of the tube should not be less than 85% of the acreage of the pump outlet. Try to equip the tube with a bend of fewer than 120 degrees to avoid excessive pressure losses and affect results.
- Page 10 The machine generates heat during operation, which can slightly warm the air and water. If temperature sensitivity is critical for the aquatic environment, it is recommended to pass the air tube through a simple chiller water tank before entering the aquarium to prevent an increase in aquarium temperature.
-
Page 11: Troubleshooting
Troubleshooting： Issue of Possible causes Recommended solutions working The noise Follow horizontal installation becomes louder Improper installation causes wear of instructions, use rubber feet after a period of moving parts for shock absorption. time Avoid installation in open area and avoid water. Avoid installing water levels Fuselage water damage higher than the machine. - Page 12 OUTLOOK DIMENSIONS L (mm) N (mm) H (mm) M (mm) (Model) K (mm) I (mm) ACO-005 - 11 -...
-
Page 13: Structure Diagram
STRUCTURE DIAGRAM NAME NAME NAME Vibration Outlet Nozzle Film Counteract Bracket Compressing Outlet Cover Front Casing Spring Free Gasket (one) Maintenance Spring Block Bearing (one) Outlet Board Guide Shaft Steel Ball Film Handle Steel Ball Bracket Outlet Flange Stator Coil Filter Sponge Gasket (two) Winding... - Page 14 FUNCTION CURVES FOR YOUR REFERENCE FOR YOUR REFERENCE - 13 -...
-
Page 15: Technical Table
TECHNICAL TABLE (Model) (Voltage) (Power) (Pressure) (Output) (Weight) (Dimensions) ACO-005 220V/50Hz 0.035MPa 70L/min 2.8kg 212x99x132mm FCC statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. - Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support...
