Ultra electronics HyperSpike MA-2 Manual

MA-2
3200W Omni Directional Loudspeaker
High Power Speaker Array
Features:

148 dB SPL peak acoustic output

2-mile radius

STI 0.91 out of 1.0

UL1480A listed

Hazardous Location Certified: Class I Division 2 (CID2),
Groups A, B, C, and D outdoor wet listed

5-, 3-, 2-, and 1-sided configurations available
Description:
®

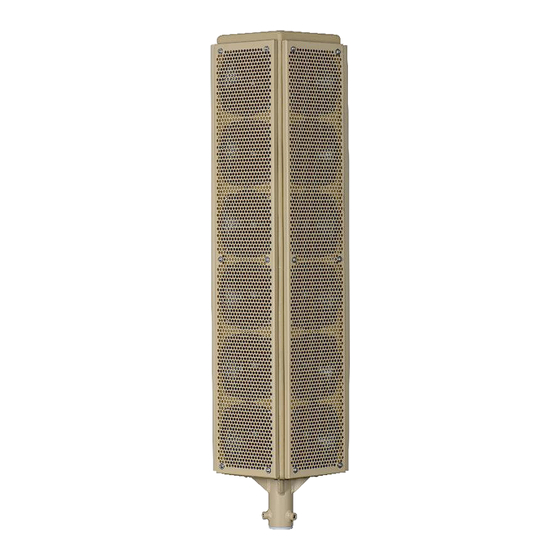

The HyperSpike MA-2 is a customizable, omni-directional
high power speaker array that broadcasts live and pre-
recorded voice commands and tones over a 12 square mile
area. Leading the industry in voice intelligibility, the MA-2
speaker design achieves an exceptional STI of 0.91/1.0,
ensuring commands are clearly heard, even in high noise
environments. The battle tested MA-2 comes with a
waterproof, rugged, and UV-resistant enclosure; ensuring
durability in harsh environments.
Input Voltage
Input Power
Frequency Response
Beam Width
Dimensions
Weight
Certifications
Environmental
Architect and Engineer Specifications:
The High Power Speaker Array shall be a HyperSpike
recorded or live voice announcements at ___ dB, measured at 1 meter from the source. The emitter shall be a ___ sided
unit weighing no more than 100 lbs (45.36 kg) with one (1) 2" outside diameter (OD) pipe and pedestal, pole, or wall
mounting hardware. The emitter shall be able to transmit an 80 dB (LAeq) audible signal up to 3,280 feet and operate at a
power of 640 W to 3200 W. Equipment shall be suitable for indoor or outdoor wet locations and approvals shall include
UL1480A listing with Class I Division 2, Groups A, B, C, and D Hazardous Location Certification; or Non-Hazardous
locations only.
90080A-SS-MA2 Rev A
41 VRMS Multi Channel
90 VRMS Single Channel
640 W, max per side, continuous
alert tone
100 Hz – 7 kHz
120° – 360°
12.8" DIA x 45.5" H
36 – 100 lbs (16.33 – 45.36 kg)
CID2 – Groups A, B, C, and D
UL1480A Listed
CSA C22.2 No. 205
CAN/CSA C22.2 No. 213-15
ANSI/ISA 12.12.01-2015
-20°C to 60°C
Ultra Electronics – USSI • 4868 East Park 30 Drive • Columbia City, IN 46725-8861
Impedance/Power Rating:
MA-2
90080A
90163A
-801
-802
-803
-804
MA-2
Multi Channel
90224A
-801
-802
-803
-804
®
MA-2 model 90______-80__-__, providing alarm tone, pre-
Impedance
Power
(Ω per
Directionality
(Watts)
channel)
5 3200
8 1920
12 1280
24 640
Impedance
Power
(Ω per
Directionality
(Watts)
channel)
6 3200
6 1920
6 1280
6 640
360°
230°
185°
120°
360°
230°
185°
120°
Page 1 of 3
