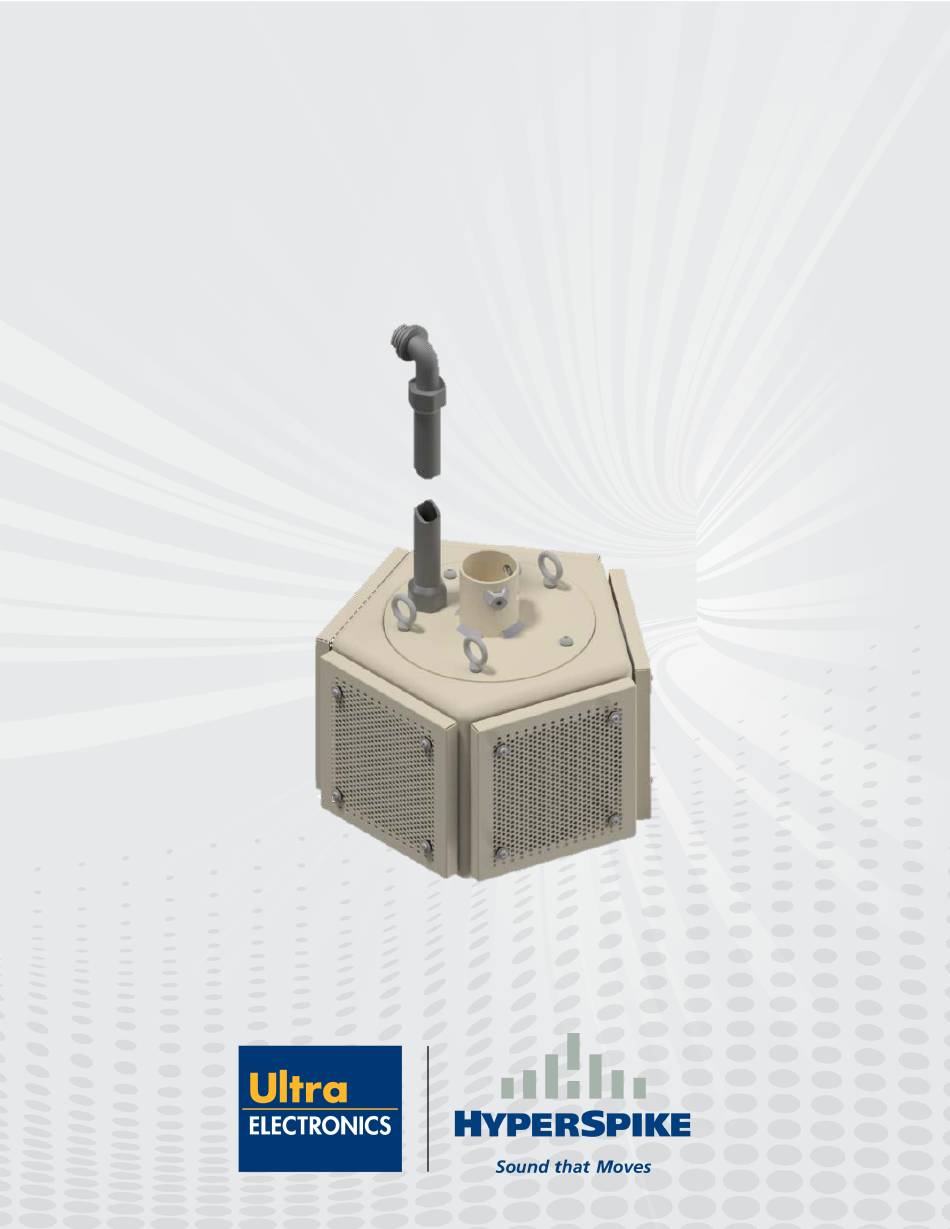

- Page 1 INSTALLATION AND MOUNTING MANUAL ® HyperSpike MA-Micro REV A Copyright © Ultra Electronics – USSI Columbia City, IN 46725 USA PART NO.: xxxxxxxxx...
- Page 2 ® HyperSpike MA-Micro Installation and Mounting Manual This manual contains information that is proprietary to Ultra Electronics – USSI. It is intended solely for the education and use of parties operating and maintaining the equipment described herein. Copyright © Ultra Electronics – USSI , Columbia City, IN 46725 USA...
- Page 3 This equipment is suitable for indoor or outdoor wet location use in Class I Division 2, Groups A, B, C, D; or Non-Hazardous locations only. Temperature Code: T3A CAUTION: SOUND LEVEL EXCEEDS 120 dBA. Copyright © Ultra Electronics – USSI , Columbia City, IN 46725 USA Page 1 90145A-MAN-MAMICRO Rev A...
- Page 4 1) To rigidly mount the MA-Micro, slide it into position with the mast mount around a 2” OD pipe (not included). Figure 1: Location of the 2” mast mount Copyright © Ultra Electronics – USSI , Columbia City, IN 46725 USA Page 2 90145A-MAN-MAMICRO Rev A...
- Page 5 Figure 2: Location of screw to tighten to 2” pipe 3) Eyelets have been provided to secure a safety cable to the MA-Micro. The safety cable is a customer-supplied item. Copyright © Ultra Electronics – USSI , Columbia City, IN 46725 USA Page 3 90145A-MAN-MAMICRO Rev A...
-
Page 6: Field Wiring
Route the conduit to a junction box approved by local electrical codes and standards. Follow your integrator’s instructions for installing into an appropriate junction system. Figure 3: Example of field wiring Copyright © Ultra Electronics – USSI , Columbia City, IN 46725 USA Page 4 90145A-MAN-MAMICRO Rev A... - Page 7 The MA-Micro has 14 AWG leads coming out of the speaker as depicted below (Figure 5). The red/black pair is used for attaching to the customer-supplied amplifier or the optional ® HyperSpike amplifier kit. Figure 5: MA-Micro Copyright © Ultra Electronics – USSI , Columbia City, IN 46725 USA Page 5 90145A-MAN-MAMICRO Rev A...
- Page 8 HyperSpike amplifier kit. Pin A – Channel 1 (-) Pin B – Channel 1 (+) Pin C – N/A Pin D – N/A Copyright © Ultra Electronics – USSI , Columbia City, IN 46725 USA Page 6 90145A-MAN-MAMICRO Rev A...
-
Page 9: Warranty
MA-Micro Installation and Mounting Manual 4.0 WARRANTY Ultra Electronics – USSI warrants its products to be free from defects in material and workmanship for a period of one (1) year from the date of shipment from USSI’s facility. This warranty is extended to the original purchaser and all subsequent owners, provided a copy of the original dated bill of sale is presented when service is requested under warranty. - Page 10 Ultra Electronics USSI 4868 East Park 30 Drive Columbia City, IN 46725 USA +1-260-248-3666...
