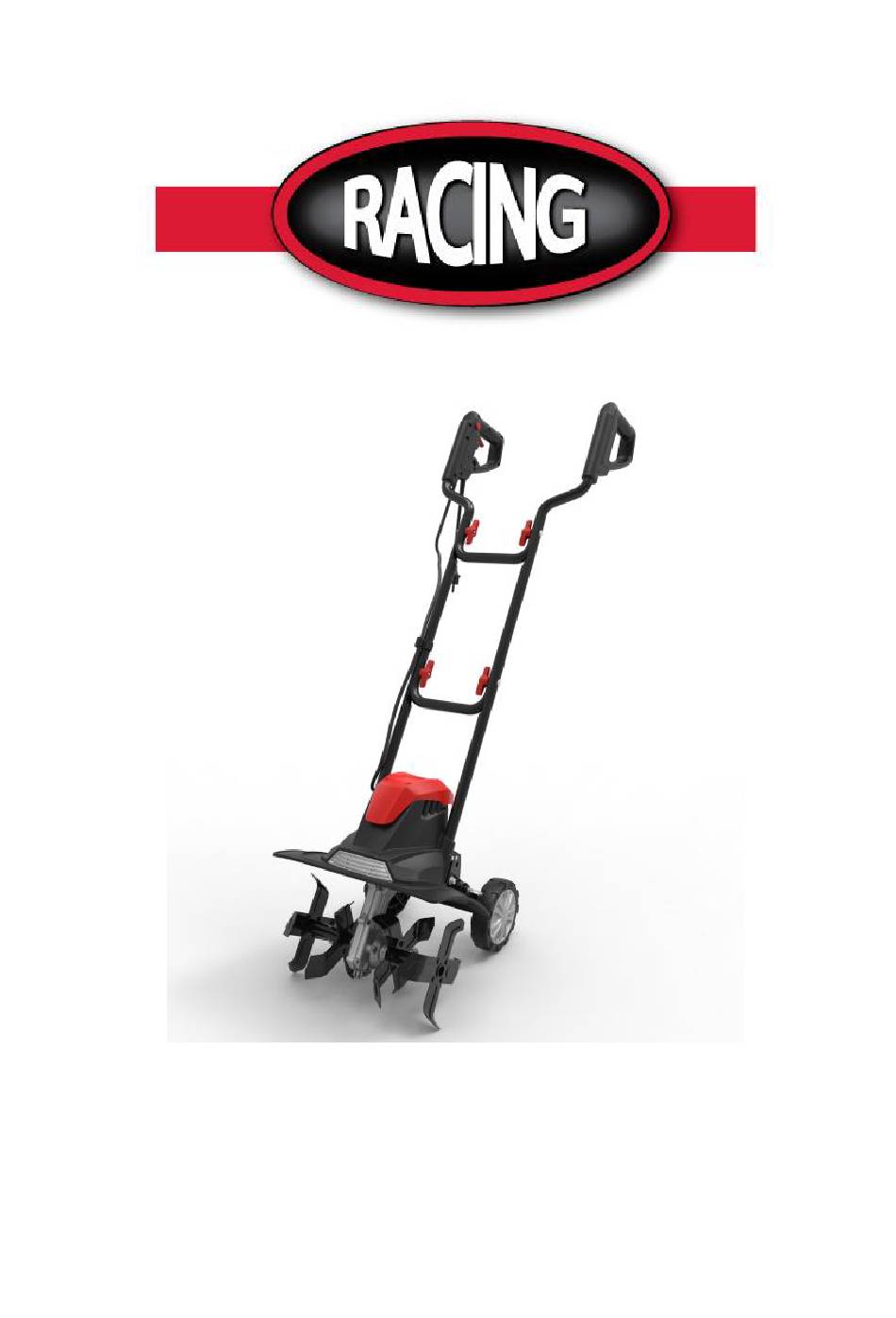

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRIC TILLER RAC1200ET USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE ........................... 3 2. SAFETY INSTRUCTIONS ........................3 3. YOUR PRODUCT ..........................4. ASSEMBLY……………………………………………………………………………………………………..13 5. OPERATION ............................6. MAINTENANCE AND STORAGE ...................... 7. TROUBLESHOOTING…………..…………………………………………………………………………….18 8. DISPOSAL ............................9. DECLARATION OF CONFORMITY ....................10. WARRANTY ............................. 11. PRODUCT FAILURE ........................12. -
Page 3: Intended Use
1. INTENDED USE This device is only intended as an electric tiller for aerating lawns and grassy areas in private domestic and hobby gardens. It is not designed for use in public areas, parks, sports areas, and in agriculture and forestry. Using the application for any other purpose is considered incorrect and unapproved. - Page 4 b) Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown up by the machine. c) Before using, always visually inspect to see that the tools are not worn out or damaged. Replace worn out or damaged elements and bolts in sets to preserve balance.
- Page 5 5) BEFORE OPERATION a) The machine should always be used according to the manufacturer's instructions in the instruction manual. b) The machine must be stopped when carrying out maintenance and cleaning operations, when changing tools or when transported by means other than under its own power.
- Page 6 a) People not acquainted with the operating instructions, children, juveniles who have not yet reached the minimum age for using this device, and people under the influence of alcohol, drugs or medication are not allowed to use the device. b) Children and adolescents under the age of 16 and persons unfamiliar with the instruction manual are not allowed to use the device.
- Page 7 o) Be aware that the application may unexpectedly bounce upward or jump forward if the tines should strike extremely hard, packed soil, frozen ground, or buried obstacles such as large stones, roots or stumps. p) Do not put hands, feet or any body part or clothing in the vicinity of rotating tines.
- Page 8 7) ELECTRICAL SAFETY a) The mains voltage must correspond to the one marked on the technical data plate (230V~50Hz). Do not use other sources of power. b) The use of a safety circuit-breaker is recommended for the power supply line for an intervention range of 10 to 30 rated mA.
-
Page 9: Safety Instructions
such as a timer, or connected to a circuit that is regularly switched on and off by the utility. 8) DOUBLE INSULATION The application has double insulation. This means that all external metal parts are insulated from the electrical supply. This is achieved by introducing an insulation layer between electrical and mechanical parts. - Page 10 Guarantee sound power level Danger! Keep hands and feet away from the cutting equipment! Always switch off the device, disconnect the power and wait till the machine comes to a standstill prior to maintenance, cleaning or repair work! Danger! Rotating blades. Keep hands and feet out of openings while machine is running.
-
Page 11: Your Product
3. YOUR PRODUCT 3.1 DESCRIPTION(FIG.1) 01. Handle 07. Blade roller 13. Nut M8 02. Power cord 08. Carriage bolt 14. Screw M8 03. Frame tubing 09. Wing nut 15. Drive shaft 04. lower bar 10. Cable clip 16.wheel 05. Tapping screw 11. - Page 12 3.2 TECHNICAL DATA RAC1200ET Model Rated voltage 230-240V~ Rated frequency 50Hz Input power 1200W Working width 360mm Wheels Ø150mm 8.15kg Weight Measured Sound pressure level 81,3 dB(A) Uncertainty K=3.0 dB(A) Measured Sound power level 91,64 dB(A) Uncertainty K=1,31dB(A) Guaranteed sound power level 93 dB(A) Left handle: 0.764 m/s...
-
Page 13: Assembly
4. ASSEMBLY IMPORTANT! You must fully assemble the appliance before using it for the first time! - Page 14 ⚫ Attach the lower bars (04) as shown in picture 2 and tighten the screws (05). (fig. 2) ⚫ Connect the bar (03) and the handle (01) to the lower bars (04) using the wing nut (09) and lock screw (08) (fig. 3,4) ⚫...
- Page 15 ⚫ Install the wheel ◼ Remove the pre-assembled split pin (20) and the washer (18). Place the wheel (16) on the wheel holder (19). Secure it with the washer (18) and the split pin (20). Then mount the wheel cap (17). (fig. 8,9) ◼...
-
Page 16: Operation
5. OPERATION 5.1 START AND STOP ● To prevent an accidental start-up of the implement, the throttle handle (01) is equipped with a safety release switch (11) which must be pressed before the On/Off switch (12) can be pressed. If the On/Of switch (12) is released, the equipment switches off. -
Page 17: Maintenance And Storage
➢ For breaking sod or deep tilling, allow the tines to pull the tiller forward to the end of your arm’s reach, then firmly pull the tiller back towards you. By repeatedly allowing the tiller to move forward and then pulling back to you, the tiller will be most effective. ➢... -
Page 18: Troubleshooting
can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock. STORAGE Store the Tiller in a dry, clean area out of reach of children. During extended periods of storage, ensure that the tiller/ cultivator is protected against corrosion and frost. -
Page 19: Declaration Of Conformity
9. DECLARATION OF CONFORMITY BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France declare that the machine Electric tiller Model: RAC1200ET Serial number: 20221216351-20221216810 20230200231-20230200480 Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU RoHs Directive (EU)2015/863 amending 2011/65/EU Noise Directive 2000/14/EC amended by 2005/88/EC, Article 12, Annex III item 40. -
Page 20: Warranty
10. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 21: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 22: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 23 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC 2022...
