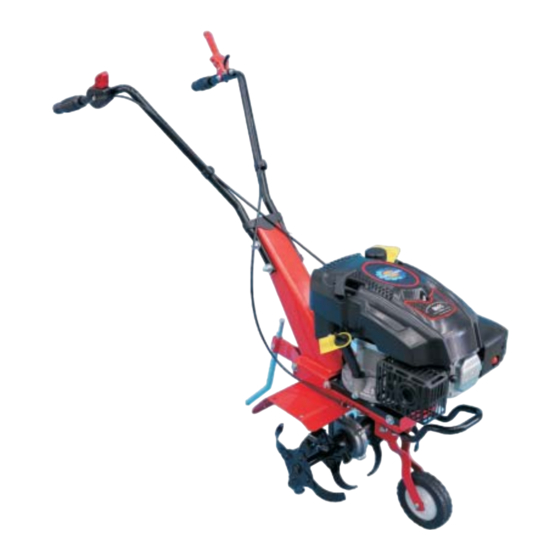

- Page 1 GASOLINE TILLER RAC139PTIL-A/ RAC139PTIL6C-B ORIGINAL INSTRUCTION MANUAL BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC WARNING: Read and understand all instructions before use.
- Page 2 WARNING SYMBOLS The following symbols are used in this manual and/or on the machine: Warning, read the instruction manual before use the machine. Risk of injury due to flying parts! Keep bystanders away! Risk of injury caused by rotating machine parts. Guaranteed sound power level.
- Page 3 Instruction handbook Comprehensive instructions and information on all aspects of maintenance and safe use of the machine shall be provided in the instruction handbook. It shall comply with 5.5 of EN 292-2:1991. In particular, the following points shall be emphasised; a) That the machine shall always be used in accordance with the manufacturer’s instructions laid down in the instruction handbook;...
- Page 4 b) Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown up by the machine; c) WARNING – Petrol is highly flammable; Store fuel in containers specifically designed for this purpose; Refuel outdoors only and don not smoke while refueling;...
- Page 5 To reduce the fire hazard, keep the engine, silencer, battery compartment and petrol storage area free of vegetative material and excessive grease; e) Replace worn or damaged parts for safety; f) If the fuel tank has to be drained, this shall be done outdoors. Technical Data: Tiller Model: RAC139PTIL-A RAC139PTIL6C-B Engine Model: DB475 DB475 Type-approval No:...
-
Page 6: Table Of Contents
Content DESCRIPTION ASSEMBLY OF HANDLE BLADE ASSEMBLY GENERAL SAFETY INSTRUCTIONS OPERATION TRANSPORTATION AND STORAGE TROUBLES-CAUSES-TROUBLESHOOTING INSPECTIONS AND MAINTENANCE EXPLODED DIAGRAM 10/ CE DECLARATION OF CONFORMITY 11/ WARRANTY 12/ PRODUCT FAILURE 13/ WARRANTY EXCLUSIONS... - Page 7 1-DESCRIPTION 1, Clutch Handle 2, Left Handle 3, Gasoline Engine 4, Right Handle 5, Blade 6, Aluminum Gearbox...
-
Page 8: 2-Assembly Of Handle
2-ASSEMBLY OF HANDLE Used for cutting 590mm... -
Page 9: 3-Blade Assembly
3-BLADE ASSEMBLY Cutting width 360mm Cutting width 590mm... -
Page 10: 4-General Safety Instructions
Note: L means left blade, which is different from right blade(R). L and R are engraved on the blade. 4-GENERAL SAFETY INSTRUCTIONS * Do not use the machine until you have read the instruction manual carefully. * Observe any safety instruction included in the manual. * Be responsible to the others * The unit is provided a foot-operated brake than stops the blades within 3 seconds after the drive lever tripping. - Page 11 5-OPERATION Engine Oil Engine Oil Warning: Engine delivered without oil, please add 0.50 liter of oil before use. Oil should be changed for the first time after 2 hours, then replace engine oil every 30 hours. Inspect oil lever before each time use.
- Page 12 Gasoline Gasoline Tank Capacity: 1200ml Gasoline Type: Fresh and unleaded gasoline Warning! Never fill gasoline into fuel tank while the machine is in an enclosed area; Warning! Do not fill gasoline into fuel tank while the engine is running or still hot; Warning! Never smoke while you fill up gasoline into the fuel tank;...
- Page 13 Guiding wheel in work position Put the wheel in pos.B for tilling. CAUTION! Transport the unit with the wheel in position A. The wheel should be adjusted with engine off only!
- Page 14 Cold Engine Start Put the lever on the choke position. Pull the starter cable evenly. The engine should start up after 3-5 pulls. Put the lever at the required speed, FAST or SLOW and pull the clutch handle in 2 steps against the handle. Notice: If the engine is heated up, it is possible to start up in the slow/fast position.
-
Page 15: 6/ Transportation And Storage
6- TRANSPORTATION AND STORAGE The unit is allowed to be transported with the engine off only Clean the unit thoroughly before putting in on storage Store the unit at a dry clean place Fuel or oil may leak at transport. Secure the unit as appropriate and take preventive action to protect the environment against contamination. -
Page 16: 8/ Inspections And Maintenance
8- INSPECTION AND MAINTENANCE 8.1 Inspections and Maintenance Safety Instructions The machine will serve as a sufficient aid only if maintained and care for appropriately. Insufficient maintenance and care may result in accidents and injuries. Prior to any works on the unit, always switch the engine off and pull the spark plug socket out! Never use aggressive detergents for cleaning. -
Page 17: 9/ Exploded Diagram
9- EXPLODED DIAGRAM... -
Page 18: 10/ Ce Declaration Of Conformity
Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machinery designated below: GASOLINE TILLER Model: RAC139PTIL-A Serial number: 20210171966-20210172215 The people name holding the technical file：Mr. Olivier Patriarca Complies with the provisions of the Directive & quot; machinery & quot; 2006/42 / EC and national laws transposing it;... - Page 19 11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.
- Page 20 12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
- Page 21 13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
