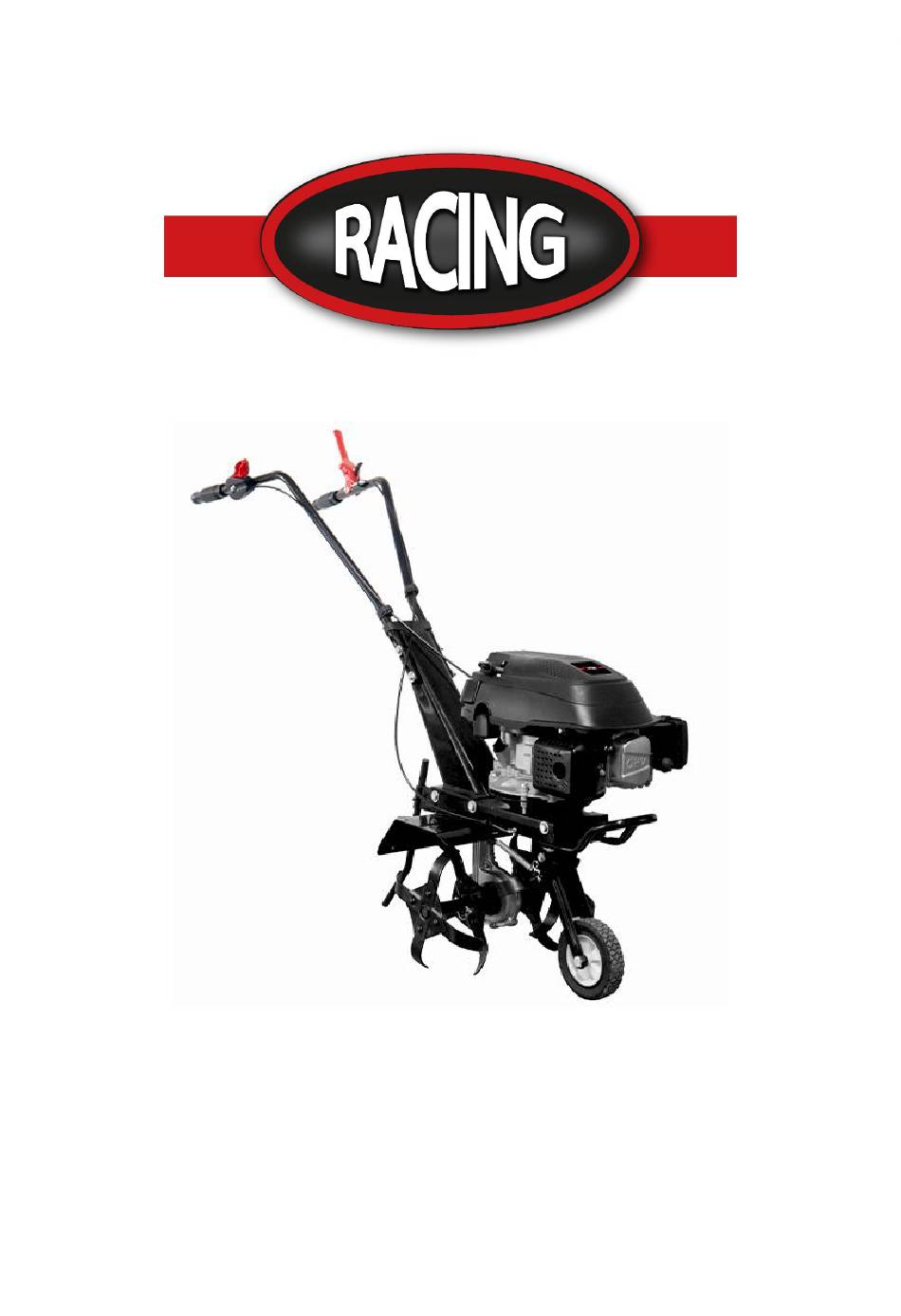

- Page 1 ORIGINAL INSTRUCTIONS>EN PETROL TILLER RAC139PTIL-B USER GUIDE CAUTION: Read the instructions before using the machine.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY WARNINGS……………………………………………………………3 2. INTENDED USE………………………………………………………………….7 3. PRODUCT DESCRIPTION……………………………………………………..7 4. TECHNICAL DATA………………………………………………………………7 5. ASSEMBLY…………………………………………………………....8 6. OIL AND FUEL FILLING…………………………………………....16 7. OPERATION…………………………………………………………………….17 8. INSPECTION AND MAINTENANCE…………………………………………19 9. TRANSPORTATION AND STORAGE……………………………………….19 10. DECLARATION OF CONFORMITY………………………………………….20 11. WARRANTY…………………………………………………………………….21 12. PRODUCT FAILURE………………………………………………....22 13. WARRANTY EXCLUSIONS………………………………………....23... -
Page 3: Safety Warnings
1. SAFETY WARNINGS WARNING! Before using this tool, please read this safety and operating instructions carefully. Knowing and mastering this information and instructions will help you to use this machine safely and reduce the risk of accidents and electric shocks. If you give this unit to another person, give them this manual as well. - Page 4 g) Do not work on excessively steep slopes. h) Use extreme caution when reversing or pulling the machine towards you. i) Do not change the engine governor settings or over speed the engine. j) Start the engine carefully according to manufacturer instructions and with feet well away from the tool(s) ;...
- Page 5 - Always transport the machine by its handle, never by another part of the machine. - Avoid using the device in bad weather conditions, especially when there is a risk of thunderstorms and lightning. - In the event of an accident, stop using the machine immediately. Turn off and check the problem. Do not use the machine while the machine is damaged.
- Page 6 SYMBOLS Read the instruction manual The fuel is flammable; keep it away from the fire. Do not add fuel while the machine is running Risk of projection; Keep bystanders Clutch lever STOP position away Clutch lever START position Warning! Rotating tools Remove the spark plug before servicing and maintenance.
-
Page 7: Intended Use
2. INTENDED USE This machine is exclusively intended to be used as a tiller to turn and loosen garden and crop soil. They can work on small plots. The tool must be used outdoors. Do not respect the instructions and requirements of use as stated in this manual will be considered as non-conform. -
Page 8: Assembly
Measured sound power level according to noise : 90,2dB(A), K=2,15dB(A) directive 2000/14/EC Guaranteed sound power level L LwA: 93dB(A) Weight 28,5 kg 5. ASSEMBLY Unpack and lift out the rotary tiller and take out other accessories and tools in the box. Read the instructions carefully and operate every step strictly according to the instructions. - Page 9 Fig. 4 Fig. 5 INSTALL THE ARMREST FIXING SEAT Install the armrest fixing seat on the armrest bracket and lock it with φ8*φ24*2 washers and hexagon head bolts M8*30 (Fig. 6). Armrest fixing seat Hexagon head bolt φ8*φ24*2 washer Fig. 6 Fig.
- Page 10 Hexagon head bolt φ8*φ24*2 washer M8 nut Left handrail Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 LOCK THE LEFT AND RIGHT HANDRAILS Lock the 4 bolts and nuts on the left and right handrails by using a wrench (Fig. 12). INSTALL THE CLUTCH CABLE Unscrew an M8 nut among the adjustment screws of clutch cable and lead it through the lug hole of the iron block of left handrail (Fig.
- Page 11 Clutch cable M8 nylon assembly self-lock nut Handle Hexagon flange bolts M8*40 Fig. 13 Fig. 14 INSTALL THE HANDLE Install the Z-shaped connector of clutch cable into the φ5 hole in the handle (Fig. 15), insert M8*40 bolt into the corresponding hole of the handle and left handrail (Fig. 16), and then tighten M8 cap nut with a wrench (Fig.
- Page 12 Fig. 18 Fig. 19 INSTALL THE THROTTLE SWITCH Bolt M6*45 Install the throttle switch in the φ6.3 hole in the right handrail (Fig. 20), insert M6*45 bolts into the corresponding holes of the throttle switch and the right handrail (Fig. 20), and then tighten the M6 cap nut with a wrench (Fig.
- Page 13 Quick release pin Right small rotary blade Fig. 21 Fig. 22 Fig. 23 Right rotary blade Blanking Fig. 24 Fig. 25 INSTALL THE LEFT AND RIGHT AUXILIARY FENDERS Remove the M8*16 bolts of the left and right auxiliary fenders (Fig. 26), place the auxiliary fenders under the main fenders (Fig.
- Page 14 Right auxiliary fender M8*16 bolt Fig. 26 Fig. 27 INSTALL THE HANDLE The handle is used to facilitate transfer and handling (Fig. 29). First, unscrew the two M8*20 bolts on the variable speed bracket of rotary tiller (Fig. 30), turn the handle upward to the corresponding hole position, and screw the two bolts in and lock with a wrench (Fig.
- Page 15 Fig. 30 Fig. 31 Fig. 32...
-
Page 16: Oil And Fuel Filling
6. OIL AND FUEL FILLING WARNING! Engine delivered without oil or fuel: Fill up with petrol and oil before starting the engine. 1) FUEL Recommended fuel: unleaded petrol with an octane rating of at least 87. Open the fuel tank cap. Pour the fuel carefully into the tank without overflowing. Never exceed the maximum level. -
Page 17: Operation
7. OPERATION Before starting the petrol engine, keep the clutch handle of rotary tiller to the disengaged position. 1) Pull down the supporting wheel frame, detach the limit round rod of support wheel frame from the slot and rotate upward to the gear position of Cultivation (Fig. 34). 2) Set up the required depth of tilling. - Page 18 clutch handle (Fig. 37) and slowly press its supporting rod into the soil, so that the rotary blade goes into the soil. Handle Fig. 37 b) To prevent damage to the rotary blade and related parts, it is strictly forbidden to make the rotary tiller walk directly when the rotary blade stays in the soil.
-
Page 19: Inspection And Maintenance
8. INSPECTION AND MAINTENANCE Warning! Always clean the appliance after use. Failure to clean it properly may cause damage to the unit or cause malfunction. Warning! Injuries may occur during work on teeth. Wear protective gloves. Before carrying out any maintenance, switch off the appliance and allow it to cool down. GENERAL MAINTENANCE - Check that the tool is not damaged. -
Page 20: Declaration Of Conformity
BUILDER 32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below PETROL TILLER RAC139PTIL-B Serial number: 20221221527-20221221626 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 &... -
Page 21: Warranty
11. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 22: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 23: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 24 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
