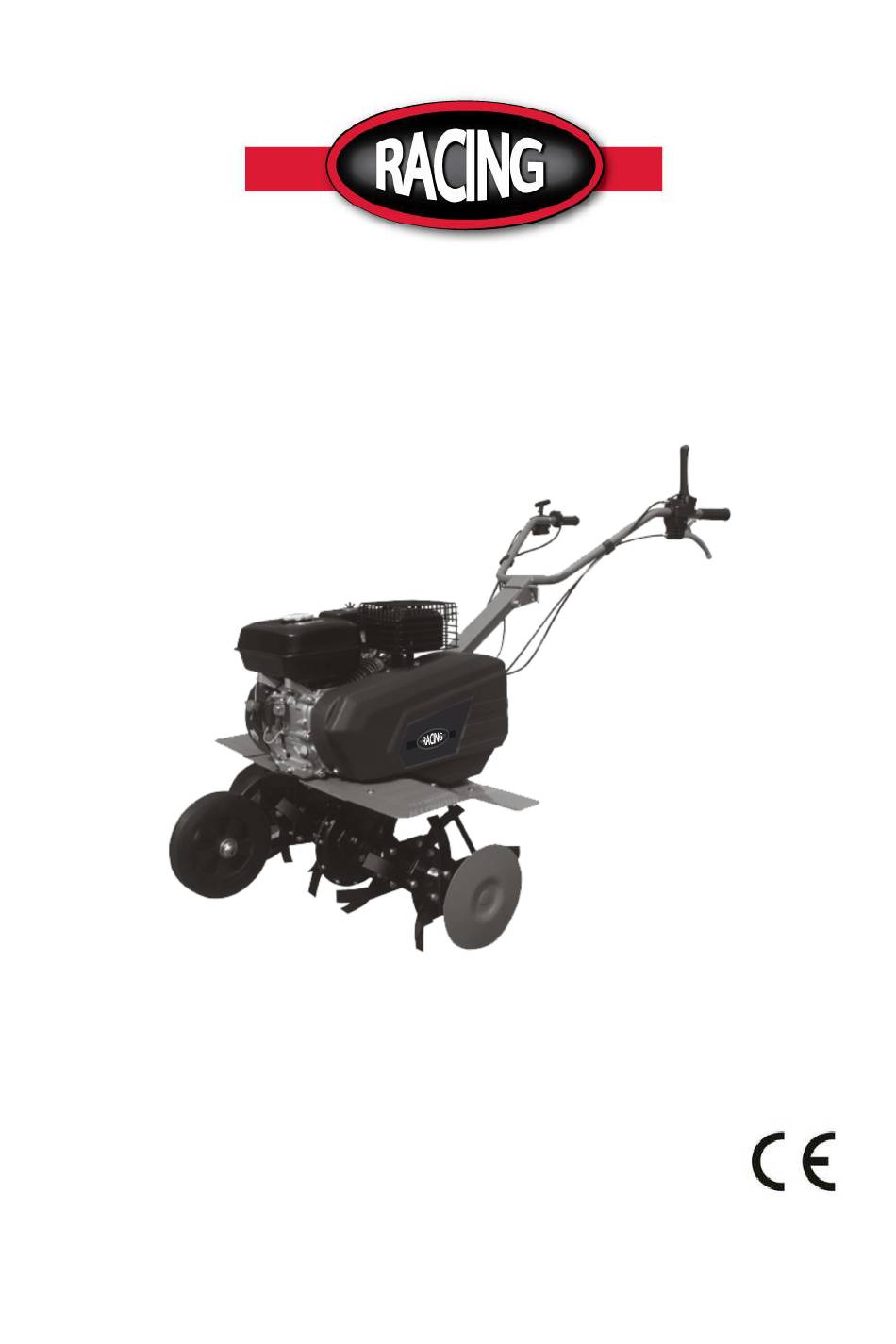

- Page 1 ORIGINAL INSTRUCTIONS Gasoline Tiller RAC196PTIL8T -1 INSTRUCTIONS MANUAL Read the instructions before use the tool BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC...
- Page 2 Read the instructions carefully. Be familiar with the controls and CAUTION: the proper use of the equipment WARNING: For your safety and safety of others please pay special attention to these precautions: Read the instruction manual before use Risk of projections! Keep bystanders at least 15 m away! Caution: rotating working tool! Danger: disconnect spark plug wire before servicing unit!
- Page 3 Check oil and fuel before start to use That the machine shall always be used in accordance with these manufacturer's instructions the instruction handbook The engine shall be stopped when carrying out maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power;...
- Page 4 b) Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown up by the machine; c) WARNING – Petrol is highly flammable: Store fuel in containers specifically designed for this purpose; ...
- Page 5 l) Never pick up or carry a machine while the engine is running; m) Stop the engine: Whenever you leave the machine; Before refuelling; n) Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of working;...
- Page 6 3. The engine and exhaust system becomes very hot during operation and remains hot after stopping. Touching them can cause burn injuries or some materials burn. 4. Avoid touching a hot engine or exhaust system. 5. Allow the engine to cool before performing maintenance or storing the tiller indoors.
- Page 7 STRUCTURAL REPRESENTATION 1.FORWARD CLUTCH 7.REAR DISC 2.REVERSE CLUTCH 8.BLADE SET(4SETS) 3.HANDLE 9.FRONT WHEEL 4.GIRDER 10.ENGINE 5.BELT COVER 11.THROTTLE SWITCH 6.OUTER MUDGUARD 12.EXTINGUISH SWITCH...
- Page 8 ASSEMBLY 1. Open the package and take the machine out carefully! 2. Install Drag Bar Put the drag bar to the hole of the back side of the frame .Fix the screw M8x16 on the side . 3. Install baldes : 4SETS BLADES,10x M10 Screw ,10xM10 nut...
- Page 9 Connect the blade set and rear disc one by one with M10x45 screws and M10 nuts . Next put the whole blade set to the shaft of the gear box . Tight it with M10x45 and M10 nuts . (Please make sure that the edges of tines forward to the front wheel). 4.
- Page 10 5. Install the Handle assemble . Fit Grider to the frame with 4xM8x16 screw . Take the bolt and pin out of the above Grider , put the Handle above the Grider and fix with bolt and pin . Fit Throttle switch , Forward clutch , Reverse Clutch to the Handle .
- Page 11 6. Fit inner mudguard : Tight left and right inner mudguard with 2pcs M6x12 screw and nut .
- Page 12 7. Install Outer Mudguard : 2pcs outer mudguard , 6pcs M6x12 Screw, 6pcs M6 nut Put outer mudguard above the inner mudguard ,and tight with M6x12 screw .
-
Page 13: Adjustment And Operation
ADJUSTMENT AND OPERATION The micro-tiller is suitable for cultivating the sandy soil and clay soil, dry land. Fill the tank with oil and gasoline after reading the engine instructions before using the tiller. Place the tiller on a flat place and turn the oil plug out, then fill the high ... - Page 14 The Height of Handle Adjustment Adjust the handle up and down to the proper height against the operator’s height. Then fix the pin. Start Up and Shut Down Make sure the switch is on the on position before starting up the extinguish engine.
- Page 15 Start Up Read the engine instructions carefully and master the starting skills before starting. Pull the starter grip lightly until resistance is felt, then pull briskly. Do not allow the starter grip to snap back against the engine and return it gently to prevent damage to the starter.
-
Page 16: Specifications
SPECIFICATIONS Engine: 4-stroke combustion engine Type: 6.5HP Displacement: 196cc Power: 3,5kW, 3600 min Fuel tank: 3.6L Hoeing tools: 8 cutting elements and two discs Working width without protection discs: 74cm Working width with protection discs: 85cm Diameter of the blade set: 30cm Rotation speed of the blade set: 142tr / min Start Mode: Manual Launcher Safety device: Mechanical clutch... -
Page 17: Maintenance
MAINTENANCE Please note that maintenance operations are scheduled for normal operating conditions. If the operation of tiller takes place under other conditions, we recommend that you communicate with your dealer to deal with the machine. 1. Turn off the engine and disconnect the spark plug prior to maintenance operations. -
Page 19: Declaration Of Conformity
Declaration of conformity BUILDER SAS ZI, 32 rue aristide Bergès – 31270 Cugnaux - France Declares that the machinery designated below: Gasoline Tiller RAC196PTIL8T -1 Serial number : 20201210183-20201210942 Complies with the provisions of the Directive "machinery" 2006/42 / EC and the national regulations transposing it;... -
Page 20: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 21: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 22: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
