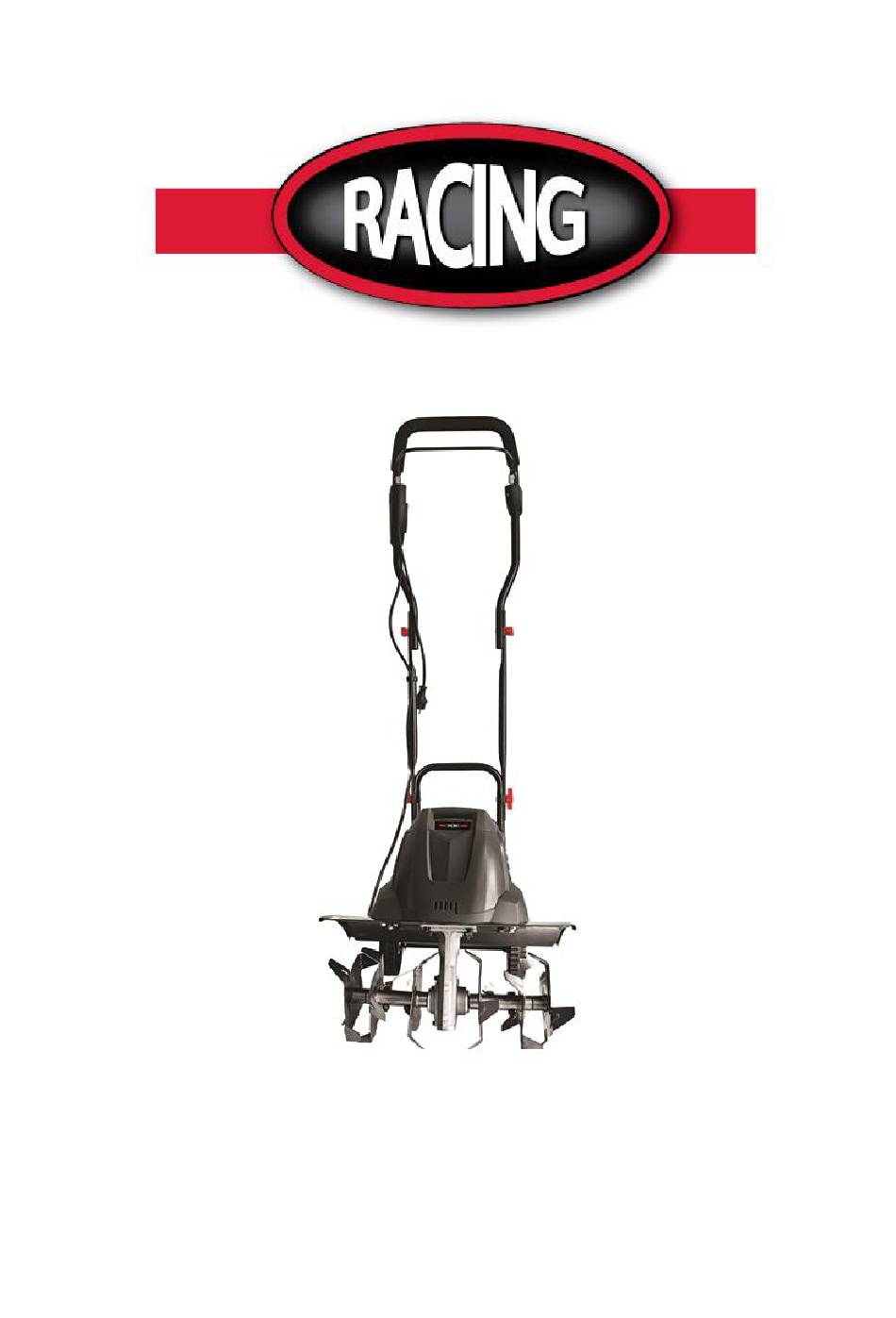

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRIC TILLER RAC1545ET USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE..............................3 2. SAFETY INSTRUCTIONS............................ 3 3. YOUR PRODUCT..............................10 4. ASSEMBLY……………………………………………………………………………………………………..12 5. OPERATION................................. 15 6. MAINTENANCE AND STORAGE........................17 7. TROUBLESHOOTING…………..…………………………………………………………………………….18 8. DISPOSAL................................18 9. DECLARATION OF CONFORMITY......................... 19 10. WARRANTY............................... 20 11. PRODUCT FAILURE............................21 12. WARRANTY EXCLUSIONS..........................22... -
Page 3: Intended Use
1. INTENDED USE This device is only intended as an electric tiller for aerating lawns and grassy areas in private domestic and hobby gardens. It is not designed for use in public areas, parks, sports areas, and in agriculture and forestry. Using the application for any other purpose is considered incorrect and unapproved. - Page 4 b) Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown up by the machine. c) Before using, always visually inspect to see that the tools are not worn out or damaged. Replace worn out or damaged elements and bolts in sets to preserve balance.
- Page 5 5)BEFORE OPERATION a) The machine should always be used according to the manufacturer's instructions in the instruction manual. b) The machine must be stopped when carrying out maintenance and cleaning operations, when changing tools or when transported by means other than under its own power.
- Page 6 a) People not acquainted with the operating instructions, children, juveniles who have not yet reached the minimum age for using this device, and people under the influence of alcohol, drugs or medication are not allowed to use the device. b) Children and adolescents under the age of 16 and persons unfamiliar with the instruction manual are not allowed to use the device.
- Page 7 o) Be aware that the application may unexpectedly bounce upward or jump forward if the tines should strike extremely hard, packed soil, frozen ground, or buried obstacles such as large stones, roots or stumps. p) Do not put hands, feet or any body part or clothing in the vicinity of rotating tines.
- Page 8 7)ELECTRICAL SAFETY a) The mains voltage must correspond to the one marked on the technical data plate (230V~50Hz). Do not use other sources of power. b) The use of a safety circuit-breaker is recommended for the power supply line for an intervention range of 10 to 30 rated mA.
-
Page 9: Safety Instructions
circuit that is regularly switched on and off by the utility. 8)DOUBLE INSULATION The application has double insulation. This means that all external metal parts are insulated from the electrical supply. This is achieved by introducing an insulation layer between electrical and mechanical parts. The double insulation guarantees you the greatest possible safety. -
Page 10: Your Product
Danger! Rotating blades. Keep hands and feet out of openings while machine is running. Caution! Unplug immediately if the power cord or plug becomes damaged! Double insulation. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. - Page 11 3.2 TECHNICAL DATA RAC1545ET Model Rated voltage 230-240V~ Rated frequency 50Hz Input power 1500W Working width 456mm wheels Ø140mm Weight 13kg Measured Sound pressure level 78,9 dB(A) Uncertainty K=3.0 dB(A) Measured Sound power level 91,39 dB(A) Uncertainty K=1,28dB(A) Guaranteed sound power level...
-
Page 12: Assembly
4. ASSEMBLY Fig.1 Fig.2 Fig.3 Fig.4... - Page 13 Fig.5 Fig.6 Fig.8 Fig.9 Fig.10...
- Page 14 This product must be assembled correctly Fig.11 before use. 1) Open the package and remove the machine from package. Taking out the main part machine accessories 2) Assembling the wheel a) Put the wheel axle through the wheel bracket, and put the gasket through the wheel axle, then put wheel through...
-
Page 15: Operation
5. OPERATION Fig.13 Fig.12 Fig.14 1) Press the safety lock button(1) 2) Lift the switch trigger (2) (See Fig.12) To start the tiller press the safety lock button (1) on the safety switch and then pull the trigger lever (2) up and against the handle bar. The motor will start and the tines will begin to rotate. To stop the tiller simply releases the lever. - Page 16 By pulling the tiller back towards yourself, the tines will dig deeper and more aggressively. To prevent tripping, take extra precautions when moving backwards and when pulling the tiller back toward yourself. If the tiller digs deep enough to stay in one spot, gently rock it side to side until it starts moving forward again.
-
Page 17: Maintenance And Storage
6. MAINTENANCE AND STORAGE Before carrying out maintenance operations, disconnect power supply. CAUTION: Always clean the tiller after each use. Failure to carry out proper cleaning can result in damage to the tiller or result in poor performance. Clean the underside of the motor support plate and housing around the tines with a scrub brush, and a soft cloth dampened with a mild soap and water mixture. -
Page 18: Troubleshooting
STORAGE Store the Tiller in a dry, clean area out of reach of children. During extended periods of storage, ensure that the tiller/ cultivator is protected against corrosion and frost. At the end of the season, or if the tiller is not being used for longer than a month, wipe over all metal surfaces with an oil impregnated cloth to protect them from corrosion or spray with a fine coat of oil. -
Page 19: Declaration Of Conformity
9. DECLARATION OF CONFORMITY BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France declare that the machine Electric tiller Model: RAC1545ET Serial number: 20220920347-20220920546 Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU RoHs Directive (EU)2015/863 amending 2011/65/EU Noise Directive 2000/14/EC amended by 2005/88/EC, Article 12, Annex III item 40. -
Page 20: Warranty
10. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 21: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 22: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 24 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC 2022...
