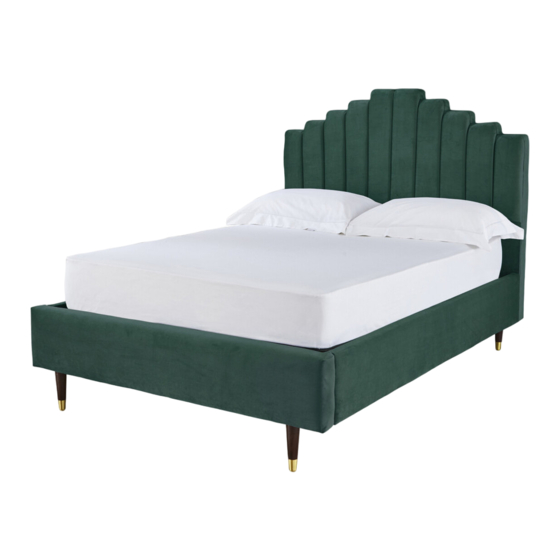

Bensons for Beds Ottoman Bedframe 135cm Assembly Instructions

Bensons for Beds Ottoman Bedframe 135cm Assembly Instructions

Advertisement

Quick Links

Minimum Two
Minimum Two
Persons Assembly
Persons Assembly
60 MINS
Approximate
Assembly Time
Regrettably self-assembly items cannot be returned once assembly is part or fully completed
unless the items are found to be faulty. Should you need to return the unassembled product,
please repack in its original packaging.
Important information
We suggest you spend a short time reading through this leaflet and then follow the simple
S
— Carefully check that you have all the parts before beginning assembly.
— Keep fittings out of children's reach and keep children well away from construction area.—
We suggest you retain these instructions for future reference.
— Upholstered Bed Using Fabric Material. Conforms to BS EN1725 & BS 5852
— Avoid exposing the furniture to excessive heat or direct sunlight as this can cause cracking
and deterioration of the color.
— Periodically check & re-tighten any fastener.
— Periodically dust lightly with a clean soft cloth.
— Any spills should be removed immediately with a damp cloth.
TAKE CARE WHEN MOVING THE FURNITURE AND NEVER DRAG THE PIECES ACROSS
THE FLOOR, AS THIS WILL CAUSE DAMAGE TO THE JOINTS
Please keep these instructions for future reference
Assembly Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ottoman Bedframe 135cm and is the answer not in the manual?

Questions and answers

Summary of Contents for Bensons for Beds Ottoman Bedframe 135cm

  • Page 1 Minimum Two Minimum Two Persons Assembly Persons Assembly Assembly Instructions Please keep these instructions for future reference 60 MINS Approximate Assembly Time Regrettably self-assembly items cannot be returned once assembly is part or fully completed unless the items are found to be faulty. Should you need to return the unassembled product, please repack in its original packaging.
  • Page 2 Assembly Instructions Required tools included in fittings pack Hardware list includes factory installed bolts and washers for side rails attachment. Please note: the fixings for the head and foot ends x1 Spanner x1 Alan Key are pre-installed. Box A Box B Box C Left Right...
  • Page 3 Step 2 Use 4 of the 20mm Bolts each side to attach the lift up arms to the siderails. Left Step 3 Screw the feet into each corner of the bed frame. Loosen Pre-Installed Bolts on metal brackets of both the footboard and headboard. Slot the side rail brackets over the bolts and re-tighten fully.
  • Page 4 Step 5 Carefully place the storage boards into the base and centralise to allow space for fingers in case of removal. Step 6 Use 4 x 20mm bolts to attach the slat support crossbar to side rails...
  • Page 5 Fig 1 Step 7 Before Placing the slatted base onto the bed frame, attach the locking bars on either end using the 4 silver connecting screws show in fig 1 Attach the slatted base to the lifting arms as shown in fig 2 Install the lifting strap for ease of lifting shown in this detail.

This manual is also suitable for:

Ottoman bedframe 150cmOttoman bedframe 180cm
