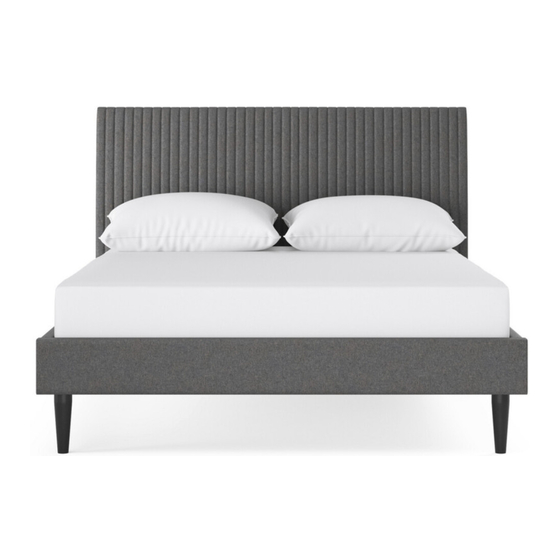

Bedframe 150cm bed with gas lift and storage

Advertisement

Quick Links

Minimum Two
Persons Assembly
60 MIN
Approximate
Assembly Time
Regrettably self-assembly items cannot be returned once assembly is part or fully completed
unless the items are found to be faulty. Should you need to return the unassembled product,
please repack in its original packaging.
Important information
— We suggest you spend a short time reading through this leaflet and then follow the simple
step-by-step instructions.
— Carefully check that you have all the parts before beginning assembly.
— Keep fittings out of children's reach and keep children well away from construction area.
— We suggest you retain these instructions for future reference.
—In the unusual event of an issue with your product would you please quote the batch I.D.
number situated on the main parts of the frame (Head End- Foot End- side Rails).
Product information
— Upholstered Bed Using Fabric Material . Conforms to BS EN1725 & BS 5852 .
Care instructions
— Avoid exposing the furniture to excessive heat or direct sunlight as this can cause cracking and
deterioration of the color.
— Periodically check & re-tighten any fastener .
— Periodically dust lightly with a clean soft cloth.
— Do not use silicone based furniture polish.
— Any spills should be removed immediately with a damp cloth.
— TAKE CARE WHEN MOVING THE FURNITURE AND NEVER DRAG THE PIECES ACROSS
THE FLOOR,AS THIS WILL CAUSE DAMAGE TO THE JOINTS.
Cohen Bedframe 150CM Bed with Gas Lift and Storage
Assembly instructions
Please keep these instructions for future reference.
Page 1 of 8
STK777802

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cohen STK777802 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bensons for Beds Cohen STK777802

  • Page 1 Cohen Bedframe 150CM Bed with Gas Lift and Storage Minimum Two STK777802 Persons Assembly Assembly instructions Please keep these instructions for future reference. 60 MIN Approximate Assembly Time Regrettably self-assembly items cannot be returned once assembly is part or fully completed unless the items are found to be faulty.
  • Page 2 Components of Carton A Please Note Most components are contained in the rear of the Head End . Please carefully Support Leg x 2 turn the head end over and remove before assembly is started Wooden Slats Double - size x 34 pcs 7 Leg x4 Page 2 of 8...
  • Page 3 Components of Carton B Footboard x 1 Side Panel x 2 Centre Rail x1 5 Side Rail x2 Support Rail x3 Single Slat Cap x 34+2 pcs Double Slat Cap x 17+1 pcs Page 3 of 8...
  • Page 4 Hardware List in Carton B Hardware List in Carton B A M6 x 20MM x 17 B M6 x 40MM x 12 C M6 x 70MM x 20 ALLEN KEY 4MM x 1 Step 1 Attach Leg to Side Panel .
  • Page 5 Step 2 Attach Leg to Headboard . Using 70mm Bolt and Allen Key as shown. Attach Leg to Footboard . Using 70mm Bolt and Allen Key as shown. Do not tighten the bolts fully until Step 4. M6X70mm Page 5 of 8 C X8 D X1...
  • Page 6 Step 3 Attach Support Leg to Centre Rail Using 20mm Bolt and Allen Key as shown. M6X20mm D X1 A X4 Step 4 Attach Centre Rail to Headboard Footboard . Using 20mm Bolt and Allen as shown. Completely tighten All the bolts. M6X20mm Page 6 of 8 A X4...
  • Page 7 Step 5 Do not tighten the bolts Attach Side Rail to Side Panel fully until Step 6. Using 40mm Bolt and Allen Key as shown. M6X40mm D X1 B X12 Step 6 Attach Support Rail to Side Rail Centre Rail .
  • Page 8 Step 7 7.1 Insert Wooden Alats into Single Slat Cap 7.2 Press Single Slat Cap into Side Rail , repeat the same procedure for the opposite side. 7.3 Insert ends of both Wooden Slats into Double Slat Cap ,then press Double Slat into Centre Rail as illustrated.
