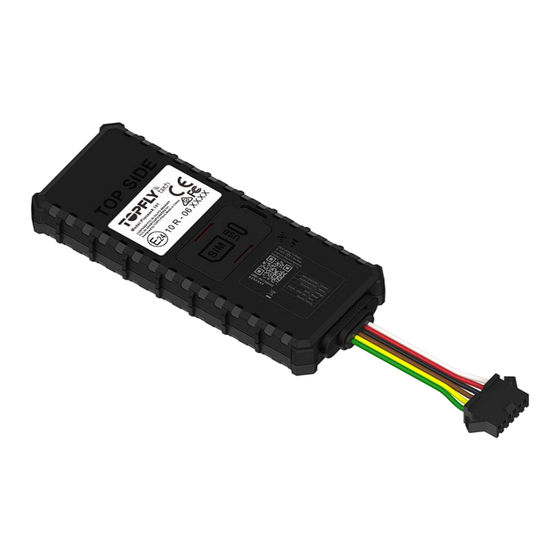

TOPFLYtech PioneerX 101 Vehicle GPS Tracker
User Manual
20240129

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PioneerX 101 and is the answer not in the manual?

Questions and answers

Related Manuals for TopflyTech PioneerX 101

Summary of Contents for TopflyTech PioneerX 101

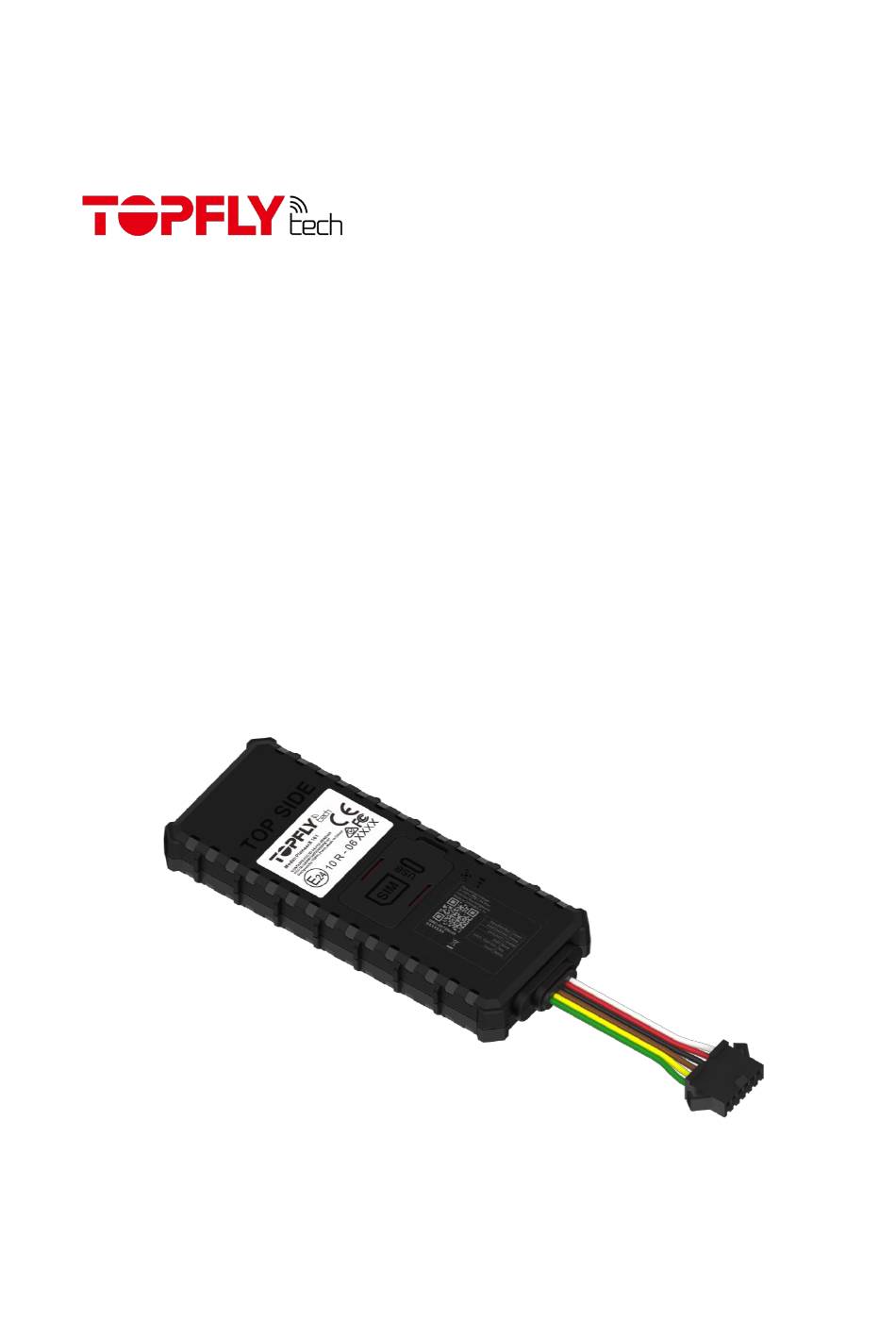

  • Page 1 TOPFLYtech PioneerX 101 Vehicle GPS Tracker User Manual 20240129...

  • Page 2: Table Of Contents

    ? ..............................20 ORGOTTEN PASSWORD WI-FI POSITIONING ............................20 SENDING COMMANDS VIA NETWORK (TCP/UDP/MQTT/DMS) ............20 BLUETOOTH ACCESSORIES ........................... 21 ........................... 21 SING THE CONFIGURATION TOOL TOPFLYtech devices ..............................21 Bluetooth device types ............................23 Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 3: Document Purpose

    CERTIFICATIONS .............................. 31 Document Purpose The purpose of this user manual is to provide information about the TOPFLYtech PioneerX 101 vehicle tracking device. It covers the main features of the device and instructions for its use. TOPFLYtech may make changes to the specifications and features of this manual without prior notice.

  • Page 4: Acronyms And Abbreviations

    • Dispose of used batteries in accordance with environmental regulations. • For configuration, use quality, certified cables. TOPFLYtech accepts no liability for damage or loss resulting from the use of unsuitable cables. • Caution! Do not incorrectly connect the wires marked red (positive power supply) and black (negative/chassis) to the wrong poles of the battery.
  • Page 5 SW - Single-Wire or Software or Switch TCP - Transmission Control Protocol UDP - User Datagram Protocol UMTS - Universal Mobile Telecommunications System USB - Universal Serial Bus VCOM - Virtual communication port Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 6: Reference Material

    The PioneerX 101 has inputs and outputs that can be used for functions such as ignition detection, relay control, siren activation, SOS button and the connection of customized accessories.

  • Page 7: Fota (Firmware Over The Air) Notification

    FOTA (firmware over the air) Notification TOPFLYtech is dedicated to ensuring that its clients enjoy the most seamless and user- friendly experience with its products and services. To achieve this, we have introduced automatic firmware updates for all our devices. This feature is designed to keep your devices up to date by automatically installing the latest firmware versions.

  • Page 8: Product Specifications

    Tracking: -162 dBm Horizontal Position Accuracy Autonomous: < 1.5 m CEP Cold Start: < 20s (30s) TTFF @ -130 dBm with Warm Start: < 2 (2s) (without) EASY™ Hot Start: < 2s (2s) Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 9 General Features Operating Voltage 7V to 100V DC Network, GNSS, BLE, WiFi Internal only Antenna Indicator LED Network and GNSS FOTA Temperature Sensor Internal temperature sensor BLE 5.0 WiFi 2.4 GHz 802.11b (Rx) Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 10: Package Contents

    Avoid additional data consumption Aggressive driving behavior detection, e.g., harsh braking Driving Behavior Monitoring and acceleration Crash Detection Accident data collection for reconstruction and analysis Package contents Foam double-side adhesive tape Electrical harness (500mm) Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 11: Product Overview

    Product overview SIM card slot USB-C connector GNSS indicator Network indicator Note: The indicator lights will go out automatically after the tracker is powered for 8 mins, unless configured to be always on. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 12: Individual Device Id

    Individual device ID Every PioneerX 101 has a laser engraved table containing important information as operating voltage, battery capacity, IMEI number both human readable and in a QR code format and wire definition. PN:01 Operating Voltage: 1.5A Max 7-100V Internal Rechargeable Battery:200mAh/3.7V...

  • Page 13: Sim Card

    SIM Card The PioneerX 101 is compatible with SIM cards in the Nano format. To ensure proper operation, make sure that the SIM card's data plan is enabled, that no PIN code is set and that there is sufficient balance. If you plan to use SMS commands to setup the device, make sure the SIM card plan has SMS enabled.

  • Page 14: Configuring The Device

    Before starting, make sure you have installed all the necessary USB drivers. Drivers can be downloaded from our FTP server. Contact TFT Support if you cannot find them. 1. Go to the "Network" tab: 2. Type your APN information (Claro as an example) Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 15 3. Type your Platform IP and port (TFT Monitor as an example) 4. Go the "Ignition" tab: Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 16 5. Select your ignition detection procedure: 6. Click "Save to device" Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 17: Using Commands

    If there is no need of user name and password: APN,<password>,APN_name,,# Use the following command to set IP address: IP,<password>,ip_address,port# In this case both IP and domain name are acceptable. Default password is 0000. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 18: Setting Data Timer

    4. Distance: tracker reports when the vehicle runs every D meters (range is 0~65535, 0 means disable) On the same screen the user can set the interval to send BLE sensor data to the server, and the Heartbeat interval. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 19: Using Commands

    Send the following command via serial console or SMS: PASSWORD,<0000>,<new_password># The new password can have up to 10 alphanumeric characters. Using the configuration tool When configuring the device, on the security tab the user can set the desired password. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 20: Forgotten Password

    If the user is sending commands to the device via the platform instead of SMS or serial console the password is not needed. Remove the “<password>,” from the command before sending. More information is available in the Command List in the DMS. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 21: Bluetooth Accessories

    Bluetooth accessories Using the configuration tool TOPFLYtech devices 1. On the device configurator, go to the "BLE" tab 2. Select the type of the device you want to pair: Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 22 3. Type the device MAC address 4. Click "Save to device" Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 23: Bluetooth Device Types

    ELA_T = ELA Temperature Sensor • Common = BLE Passthrough mode (transparent channel) • iBeacon = Apple iOS iBeacon protocol • UID, URL, TLM, EID = Eddystone Protocol • TH Acc = T-Hub ACC detection Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 24: Topflytech Ble Relay

    TOPFLYtech BLE relay The PioneerX 101 can be connected to one TFT BLE relay and control it following the Alarm settings or received commands. 1. Open the "Alarm" tab 2. Type the BLE relay MAC address Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 25 3. Type the BLE relay password 4. Choose which alarm will activate the BLE relay and its timeout. “0” means no timeout. 5. Click "Save to device" Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 26: Vehicle Installation

    Make sure there are no limitations or that the server's IP address has already been added to the IP whitelist when using an M2M SIM card. o Check the remaining balance or network signal of the SIM card. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 27 Check the format of the command. Make sure it is correct. o The vehicle may be in a network shadow area. o Make sure the device is online or wait for it to become online. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 28: Warranty And Stocking

    General Purpose Relay (24V) TA20 External TPS Set (BLE) TA22 Internal TPS Set (BLE) BLE 5.0 Wireless TSTH1-B Temperature & Humidity Sensor BLE 5.0 Wireless Door & TSDT1-B Temperature Sensor TSR1-B BLE 5.0 Wireless Relay Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 29: Fcc Warning

    • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 30: Isedc Warning

    The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.The minimum distance from body to use the device is 20cm. Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 31: Certifications

    In addition, certifications help consumers make informed choices when purchasing tracking devices, promoting confidence in the use of these technologies in a variety of applications, from fleet monitoring to personal security. INSERT CERTIFICATIONS HERE Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
