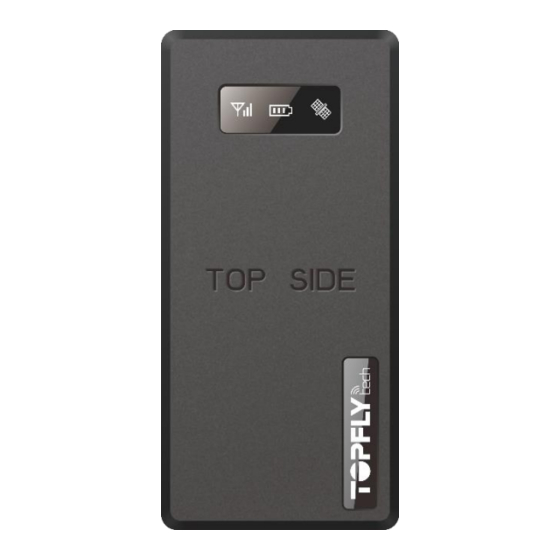

TOPFLYTECH T8806+R Vehicle GPS Tracker
User Manual
Revision 1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T8806+R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TopflyTech T8806+R

Summary of Contents for TopflyTech T8806+R

  • Page 1 TOPFLYTECH T8806+R Vehicle GPS Tracker User Manual Revision 1.4...
  • Page 2 Information in this manual is the property of TOPFLYTECH. Changes to the specifications and features in this manual may be made by TOPFLYTECH without prior notice. No part of this manual could be reproduced, copied, translated, transmitted, or published in any form or by any means without TOPFLYTECH's prior written permission.

  • Page 3: Table Of Contents

    11.3 ........................12 PLOAD NTERVAL ETTING 11.4 ............................ 13 EARTBEAT ETTING 11.5 GMT S .............................. 13 ETTING 11.6 PIN S ..............................13 ETTING 11.7 ............................. 13 ANAGER ETTING 11.8 ............................14 ANAGER ELETE Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 4 ETTING 11.14 SIM C ......................15 ALANCE HECKING 11.15 ) ......................... 15 ELAY ONTROL 11.16 ) ..................16 OOGLE EARCH LREADY UILT 11.17 PIN ............................ 16 ORGOT THE OPTIONAL ACCESSORIES LIST ....................16 Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 5: Quick Reference Of Connection Diagram

    (Analog resistance input2) Connector1 Connector2 Connector3 VCC 5V Black (RS232) Black 2A Fuse Fuse Fuse Box Black Orange Storage Battery Yellow 12V or 24V START Relay Position 12V or 24V White Cut off Fuel Pump Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 6: Product Specifications

    1 analog voltage input for fuel detection, etc. 1 analog resistance input for temperature, etc. GSM/GNSS/Bluetooth Antenna Internal only Indicator LED GSM, GNSS and Power Bluetooth General Specifications Sleep Current 7mA/12V, 5mA/24V Work Current 25mA/12V, 15mA/24V Dimensions 81mm*39mm*13mm Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 7: Standard Accessories Introduction

    3. Standard Accessories Introduction Sponge Double-side Adhesive Tape Power Supply Extension Line 1 Digital and 2 Analog Input Extension Line 4. LED indicator 4.1 GSM(Orange) Fast Blink Network Searching Slow Blink Network Connected Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 8: Power(Blue)

    Refer to the diagram on page 5. Note: Check the vehicle battery voltage (usually it’s 12V or 24V) and ensure it equal to the Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 9: Cautions Of Tracker Wiring

    20Km/H. (If the vehicle speed is higher than 20Km/H or the vehicle isn’t positioned, the tracker will return “SET RELAY DELAY, SPEED IS MORE THAN 20KM/H#” or “SET RE-LAY DELAY, GPS UNFIXED#” and will keep Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 10: Fuel Supply Restore

    (10 hours) every 3 months. It will be helpful to the internal battery life. 11. Frequently Used Operation Commands (SMS) Commands are not case-sensitive and can be sent via mobile phone or Web. The content is Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 11: Apn Setting

    Current PIN Google Map Search GOOGLE, Forgot the PIN MYSELF# 11.1 APN Setting Current PIN,APN Name,GPRS User Name,APN PIN# APN, APN Name: Range: APN of service provider Length Limit: 1~32 GPRS User Name: Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 12: Server Setting

    Upload Time (ACC on): Range: Positive Integer Range Limit: 3~65535 Default: 25 Upload Time (ACC off): Range: Positive Integer Range Limit: 0~65535 Default: 600 Angle Compensation: Range: Positive Integer Range Limit: 0~90 degrees Default: 30 degrees Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 13: Heartbeat Setting

    Length Limit: 1 ~ 10 Default: 0000 Note: Tracker will return “SET PASSWORD OK” when received this command. 11.7 Manager Setting MANAGERA, Current PIN,Manager Code:Manager Phone Number# Manager Code: Range: Positive Integer Range limit: 1~4 Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...

  • Page 14: Manager Delete

    1) Tracker will return “SET ANTITHEFT OK” when received this command. 2) This function is effective only when ACC is off 11.11 Towing Setting DRAG, Current PIN,Distance# Distance: Range: Positive Integer Range limit: 0~65535 meters Default: 0 Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 15 1) Tracker will return “SET FORWARD OK” when received this command. 2) Then it will return the SIM card balance result. 11.15 Relay Control (Fuel Cut) Current PIN,Relay Status(On/Off)# RELAY, Relay Status: Range: Positive Integer Range limit: 0(Restore) or 1(Cut) Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 16 2) This command can be used to retrieve password. 12. Optional Accessories List Product Sku Description Photo for Reference TA01 Fuel Supply Cut Relay(12V) TA11 Fuel Supply Cut Relay(24V) TA07 Fuel Sensor Calibrator Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 17 TA19 External TPS (BLE) TA20 External TPS Suite (BLE) TA21 Internal TPS (BLE) TA22 Internal TPS Suite (BLE) RS232 Tire Pressure Receiver TA17 (433Mhz) TA18 Internal TPS (433Mhz) TA23 8mm External TPS (433Mhz) Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
  • Page 18 Tire Pressure Signal Repeater TA24 (433Mhz) TA26 RS232 RFID Card Reader TA27 RFID Card TA12 BLE Tag Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
