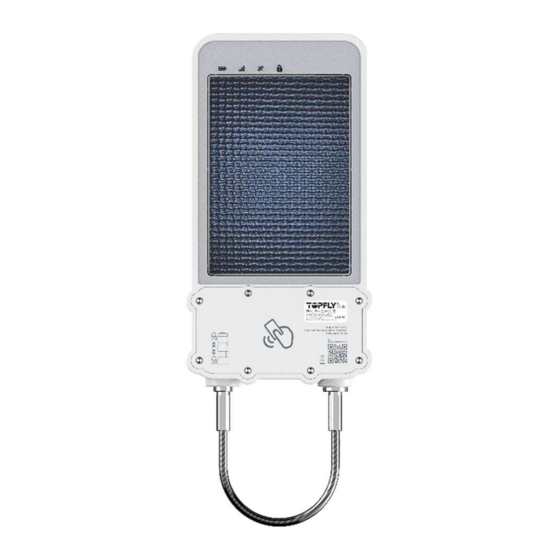

- Page 1 TOPFLYtech SolarGuardX 100 GPS E-Lock User Manual 20220329...
- Page 2 Thanks for your purchasing of the high-quality GPS tracker from TOPFLYtech. Please read this user manual carefully before installation and operation. Information in this manual is the property of TOPFLYtech. Changes to the specifications and features in this manual may be made by TOPFLYtech without prior notice.
-
Page 3: Table Of Contents
............................ 12 EARTBEAT ETTING 10.6 PIN S ..............................13 ETTING 10.7 ..........................13 OOGLE EARCH 10.8 PIN ............................13 ORGOT THE OPTIONAL ACCESSORIES LIST ....................13 FCC WARNING..........................14 ISEDC WARNING .......................... 15 Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 4: Quick Reference
(from solar panel). We usually recommend set the tracker reporting ≥every 5 mins when moving, and ≥every 1 hour when standstill. Customer may also contact with TOPFLYtech for further advice. Equipment power consumption and solar panel charging current The normal device power consumption is around 40mAh when the device is in working mode without sleep. -
Page 5: Product Specifications
It can save clients the time and effort of updating firmware manually. Please note that this feature is enabled in default. If you want to turn it off, please contact with TOPFLYtech. If this feature is disabled, the FW update only can be done by sending upgrade command manually. - Page 6 Report position and status at preset intervals Geo-fence Support up to 64 internal geo-fence regions Alarms Rope cut, Moving, Stop, Lock, Unlock Industry Certifications (Planning) CE, RCM, IC, FCC, PTCRB, AT&T, US Cellular, T-Mobile, Verizon Shenzhen TOPFLYtech Co., Limited. All Rights Reserved...
-
Page 7: Standard Accessories Introduction
Fast flashing: 0.25 second on and 0.25 second off Slow flashing: 1 second on and 1 second off Unlock: Unlock successfully, RFID LED indicator will show solid on until plug out the lock rope. If Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 8: Installation Guide
Unlock SIM cover and insert sim card then lock. Turn the power switch from off to on. 5.2.3 Put the cover back and use screwdriver to fix the cover tightly. 5.3 Fix Screws Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 9: Installation
It is VERY IMPORTANT to fix the 4 SIM card cover screws to prevent water from leaking inside and cause damage to device. 5.3.2 TOPFLYtech offers the electric screwdriver (TA38) as an optional accessory to help customer standardize the screw fixing strength. 5.3.3... -
Page 10: Alarm Configuration
(Additional tracking service charge may happen. Contact with your service provider to get more details) 7. Alarm Configuration Alarm configuration please via the TOPFLYtech configuration tool. 8. Quick Trouble Shooting 8.1 Unable to Connect to the Tracking Platform 8.1.1 Check the APN and IP settings. -
Page 11: Unlock Setting
10.2 APN Setting Current PIN,APN Name,Username,Password# APN, APN Name: Range: APN of service provider Length Limit: 1~32 Username: Range: Letters and Numerals Length Limit: 0~32 Password: Range: Letters and Numerals Length Limit: 0~32 Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 12: Server Setting
Range Limit: 0~90 degrees Distance Compensation: Range: Positive Integer Range Limit: 0 ~ 65535 meters Note: Tracker will return “SET TIMER OK” when received this command. 10.5 Heartbeat Setting Current PIN,Heartbeat Interval# HBT, Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 13: Pin Setting
“MYSELF#” from any mobile phone. 2) This command can be used to retrieve password. 11. Optional Accessories List Product Sku Description Photo for Reference BLE 5.0 Wireless Temperature TSTH1-B and Humidity Sensor Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 14: Fcc Warning
(2) this device must accept any interference received, including interference that may cause undesired operation Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 15: Isedc Warning
Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes. La distance minimale du corps à utiliser le dispositif est de 20cm. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved...
