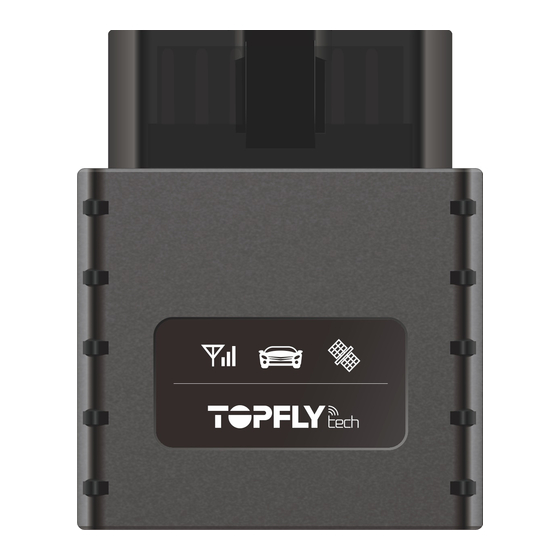

- Page 1 TOPFLYTECH TLD1-DA(E) OBDII Vehicle GPS Tracker User Manual Revision 1.2...
- Page 2 Information in this manual is the property of TOPFLYTECH. Changes to the specifications and features in this manual may be made by TOPFLYTECH without prior notice. No part of this manual could be reproduced, copied, translated, transmitted, or published in any form or by any means without TOPFLYTECH's prior written permission.
-
Page 3: Table Of Contents
............................. 12 ANAGER 9.10 ............................. 12 NTITHEFT ETTING 9.11 ............................12 OWING ETTING 9.12 ..........................13 PEED IMIT ETTING 9.13 SMS T ........................ 13 RACKING ETTING 9.14 SIM C ........................ 13 ALANCE HECKING Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... - Page 4 9.15 ) .................... 13 OOGLE EARCH LREADY UILT 9.16 PIN ............................13 ORGOT THE OPTIONAL ACCESSORIES LIST ....................14 Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
-
Page 5: Quick Reference
Allow information to be read from OBDII port and provide tracker power. Support legislated OBDII protocols: SAE J1850 PWM/SAE J1850 VPW ISO 9141-2/ISO 14230-4/ISO 15765-4 SAE J1939 (Heavy Vehicle) SIM card slot Nano SIM card slot Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 6: Led Indicator
Avoid additional data consumption 3. LED indicator 3.1 Network(Red) Fast Blink Network Searching Slow Blink Network Connected 3.2 GNSS(Blue) Fast Blink Satellite Searching Slow Blink Positioned 3.3 Diagnostic(Orange) Fast Blink Reading Slow Blink Normal Working Note: Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 7: Installation Guide
The location information will be sent to you through SMS. 6.2.2 Platform Query Connect your tracker to the tracking platform then check the real-time position online. (Additional tracking service charge may happen. Contact with your service provider to get more details.) Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 8: Quick Trouble Shooting
#. When set successfully, the tracker will return OK and execute it. Otherwise there is no message returned. Function Command Format ,Current PIN APN Name User Name,Password APN Setting Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 9: Apn Setting
9.1 APN Setting APN, Current PIN,APN Name,Username,Password# APN Name: Range: APN of service provider Length Limit: 1~32 Username: Range: Letters and Numerals Length Limit: 0~32 Password: Range: Letters and Numerals Length Limit: 0~32 Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 10: Server Setting
Range: Positive Integer Range Limit: 0~65535 Default: 600 Angle Compensation: Range: Positive Integer Range Limit: 0~90 degrees Default: 30 degrees Distance Compensation: Range: Positive Integer Range Limit: 0 ~ 65535 meters Default: 0 meters Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 11: Heartbeat Setting
Note: Tracker will return “SET PASSWORD OK” when received this command. 9.7 Manager Setting Current PIN,Manager Code:Manager Phone Number# MANAGERA, Manager Code: Range: Positive Integer Range limit: 1~4 Manager Phone Number: Range: Phone number Length Limit: 0~40 Default: <Null> Note: Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 12: Manager Delete
Note: 1) Tracker will return “SET DRAG OK” when received this command. 2) This function will be enabled automatically when ACC is off. 3) The Recommended distance setting is no less than 100meters. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 13: Speed Limit Setting
Note: Tracker will return below message when received this command. http://maps.google.com/maps?q=<Latitude>, <Longitude> 9.16 Forgot the PIN MYSELF# Note: 1) If the manager phone number has been set, only the manager can use “MYSELF#”. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... - Page 14 Photo for Reference OBDII Extension Cable TA06 (80mm) J1939 to OBDII TA14 Cable(80mm) TA19 External TPS (BLE) TA20 External TPS Suite (BLE) TA21 Internal TPS (BLE) TA22 Internal TPS Suite (BLE) TA12 BLE Tag Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
