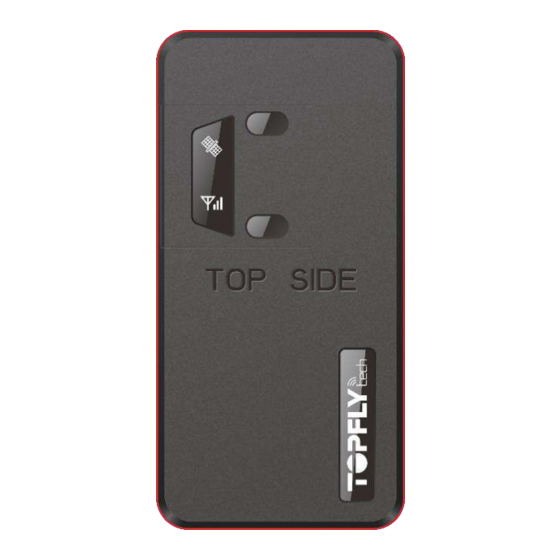

- Page 1 TOPFLYTECH T8803+E Vehicle GPS Tracker User Manual Revision 1.2...
- Page 2 Information in this manual is the property of TOPFLYTECH. Changes to the specifications and features in this manual may be made by TOPFLYTECH without prior notice. No part of this manual could be reproduced, copied, translated, transmitted, or published in any form or by any means without TOPFLYTECH's prior written permission.
-
Page 3: Table Of Contents
WARRANTY AND STOCK ......................11 FREQUENTLY USED OPERATION COMMANDS (SMS) ............11 11.1 APN S .............................. 12 ETTING 11.2 ............................12 ERVER ETTING 11.3 ........................13 PLOAD NTERVAL ETTING 11.4 ............................ 13 EARTBEAT ETTING Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... - Page 4 ETTING 11.14 SIM C ......................16 ALANCE HECKING 11.15 ) ......................... 16 ELAY ONTROL 11.16 ) ..................16 OOGLE EARCH LREADY UILT 11.17 PIN ............................ 16 ORGOT THE OPTIONAL ACCESSORIES LIST ....................17 Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
-
Page 5: Quick Reference Of Connection Diagram
(Digital input2) Orange SOS Button Microphone Black Connector1 Connector3 Connector2 2A Fuse Fuse Fuse Box Black Orange Storage Battery Yellow 12V or 24V START Relay Position 12V or 24V White Cut off Fuel Pump Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 6: Product Specifications
SOS button Call for aid Microphone Listen in GSM/GNSS/Bluetooth Antenna Internal only Indicator LED GSM and GNSS Bluetooth General Specifications Standby Current 7mA/12V, 5mA/24V Work Current 25mA/12V, 15mA/24V Waterproof IP66 Dimensions 80mm*40mm*12mm Weight Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 7: Standard Accessories Introduction
Sponge Double-side Adhesive Tape Power Supply Extension Line Digital Input Extension Line 4. LED indicator 4.1 GSM(Red) Fast Blink Network Searching Slow Blink Network Connected 4.2 GNSS(Blue) Fast Blink Satellite Searching Slow Blink Positioned Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 8: Installation Guide
Refer to the diagram on page 5. Note: Check the vehicle battery voltage (usually it’s 12V or 24V) and ensure it equal to the working voltage of relay before connecting. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 9: Cautions Of Tracker Wiring
(Additional tracking service charge may happen. Contact with your service provider to get more details.) 8.3 SOS Alarm In emergencies, press the SOS button and hold on for 1 second. An SOS alarm is triggered. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 10: Monitoring
Check the balance of tracker SIM card. 9.2.4 If the connection lost happens on the last several days of the month, check whether the GPRS service is terminated by carrier because of exceeding the max data usage volume. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 11: Unable To Locate
New PIN PIN Setting PASSWORD, Manager Setting MANAGERA, Current PIN Manager Code Manager Phone Number Current PIN Manager Code Manager Delete MANAGERD, MANAGERL, Current PIN Manager List Current PIN Antitheft Status(On/Off) Antitheft Setting ANTITHEFT, Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 12: Apn Setting
APN,Current PIN,APN Name,GPRS User Name,# 11.2 Server Setting Current PIN,Server Domain Name or IP,Port Number# Server Domain Name or IP: Range: Letters, Numerals and Symbols Length Limit: 1~128 Port Number: Range: Positive Integer Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 13: Upload Interval Setting
Heartbeat Interval: Range: Positive Integer Range Limit: 0 ~ 255 minutes Default: 5 minutes Note: Tracker will return “SET HBT OK” when received this command. 11.5 GMT Setting Current PIN,Time Zone# GMT, Time Zone: Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 14: Pin Setting
2) The max manager number is 4 11.8 Manager Delete Current PIN,Manager Code# MANAGERD, Manager Code: Range: Positive Integer Range limit: 1~4 Note: Tracker will return “SET MANAGERD OK” when received this command. 11.9 Manager List Current PIN# MANAGERL, Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 15: Antitheft Setting
1) Tracker will return “SET SPEED OK” when received this command. 2) Set “Upper Speed Limit” to 0 will turn off speed alarm. 11.13 SMS Tracking Mode Setting Current PIN,SMS Tracking Time# TRACK, Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 16: Sim Card Balance Checking
3) If recover the fuel (set to 0), tracker will return “SET RELAY DISABLE OK,RELAY:0# 11.16 Google Map Search (Already Built-in) Current PIN# GOOGLE, Note: Tracker will return below message when received this command. http://maps.google.com/maps?q=<Latitude>, <Longitude> 11.17 Forgot the PIN MYSELF# Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved... -
Page 17: Optional Accessories List
TA11 Relay(24V) TA02 SOS Button TA03 Microphone TA04 Mic & SOS Button TA19 External TPS (BLE) TA20 External TPS Suite (BLE) TA21 Internal TPS (BLE) TA22 Internal TPS Suite (BLE) TA12 BLE Tag Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
