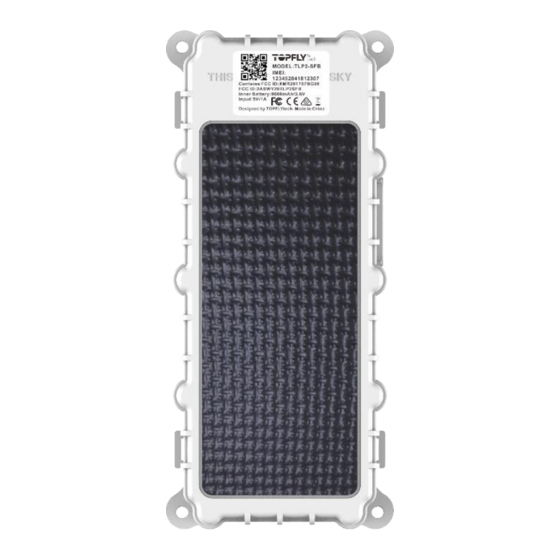

- Page 1 TOPFLYtech TLP2-SFB Asset GPS Tracker User Manual 20200908...
- Page 2 Thanks for your purchasing of the high-quality GPS tracker from TOPFLYtech. Please read this user manual carefully before installation and operation. Information in this manual is the property of TOPFLYtech. Changes to the specifications and features in this manual may be made by TOPFLYtech without prior notice.
-
Page 3: Table Of Contents
......................12 ANAGER HONE UMBER 10.7 ......................13 ELETE ANAGER HONE UMBER 10.8 ....................... 13 ANAGER HONE UMBER 10.9 ..........................13 OOGLE EARCH 10.10 PIN ............................ 13 ORGOT THE OPTIONAL ACCESSORIES LIST ....................13 Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 4: Quick Reference
(from solar panel). We usually recommend set the tracker reporting ≥every 5 mins when moving, and ≥every 1 hour when standstill. Customer may also contact with TOPFLYtech for further advice. Equipment power consumption and solar panel charging current The normal device power consumption is around 50mAh when the device is in working mode without sleep. -
Page 5: Product Specifications
It can save clients the time and effort of updating firmware manually. Please note that this feature is enabled in default. If you want to turn it off, please contact with TOPFLYtech. If this feature is disabled, the fw update only can be done by sending upgrade command manually. -
Page 6: Standard Accessories Introduction
Report position and status at preset intervals Geo-fence Support up to 64 internal geo-fence regions Alarms Support up to 31 types of alarm (refer 7. Alarm Configuration) 3. Standard Accessories Introduction USB cable Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 7: Led Indicator
Open the tracker SIM card slot cover with the screwdriver. 5.2.2 Insert the SIM card with a little push. Turn the power switch from off to on. 5.2.3 Put the cover back and use screwdriver to fix the cover tightly. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 8: Installation
(Additional tracking service charge may happen. Contact with your service provider to get more details) 7. Alarm Configuration 7.1 Alarm sent through network 7.1.1 alarm_set,0000,a,b,0,0,# 7.1.2 0000 is device default PIN 7.1.3 a=alarm code, value from 1 to 31 Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 9: Alarm Sent Through Sms
8.3 Unable to Locate 8.3.1 The device may shield by metallic things. 8.3.2 The device may enter into an area with no satellite signal coverage. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 10: Position Drift
Current PIN Manager Code Delete Manager Phone Number MANAGERD, Current PIN List Manager Phone Number MANAGERL, Google Map Search GOOGLE, Current PIN Forgot the PIN MYSELF# 10.1 APN Setting APN, Current PIN,APN Name,Username,Password# Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 11: Server Setting
10.3 Upload Interval Setting Current PIN,Upload Time(ACC on):Upload Time(ACC off):Angle Compensation: TIMER, Distance Compensation# Upload Time (ACC on): Range: Positive Integer Range Limit: 0, 3~65535 second Default: 60 Upload Time (ACC off): Range: Positive Integer Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 12: Heartbeat Setting
Note: Tracker will return “SET PASSWORD OK” when received this command. 10.6 Add Manager Phone Number MANAGERA, Current PIN,Manager Code:Manager Phone Number# Manager Code: Range: Positive Integer Range limit: 1~4 Manager Phone Number: Range: Phone number Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 13: Delete Manager Phone Number
“MYSELF#” from any mobile phone. 2) This command can be used to retrieve password. 11. Optional Accessories List Product Sku Description Photo for Reference BLE 5.0 Wireless Temperature TSTH1-B and Humidity Sensor Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... - Page 14 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved...
- Page 15 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved...
