Arkon CDM2XMG5 Manual

CDM2XMG5 | Cookie Decorators Stand for Phones and Pico Projectors

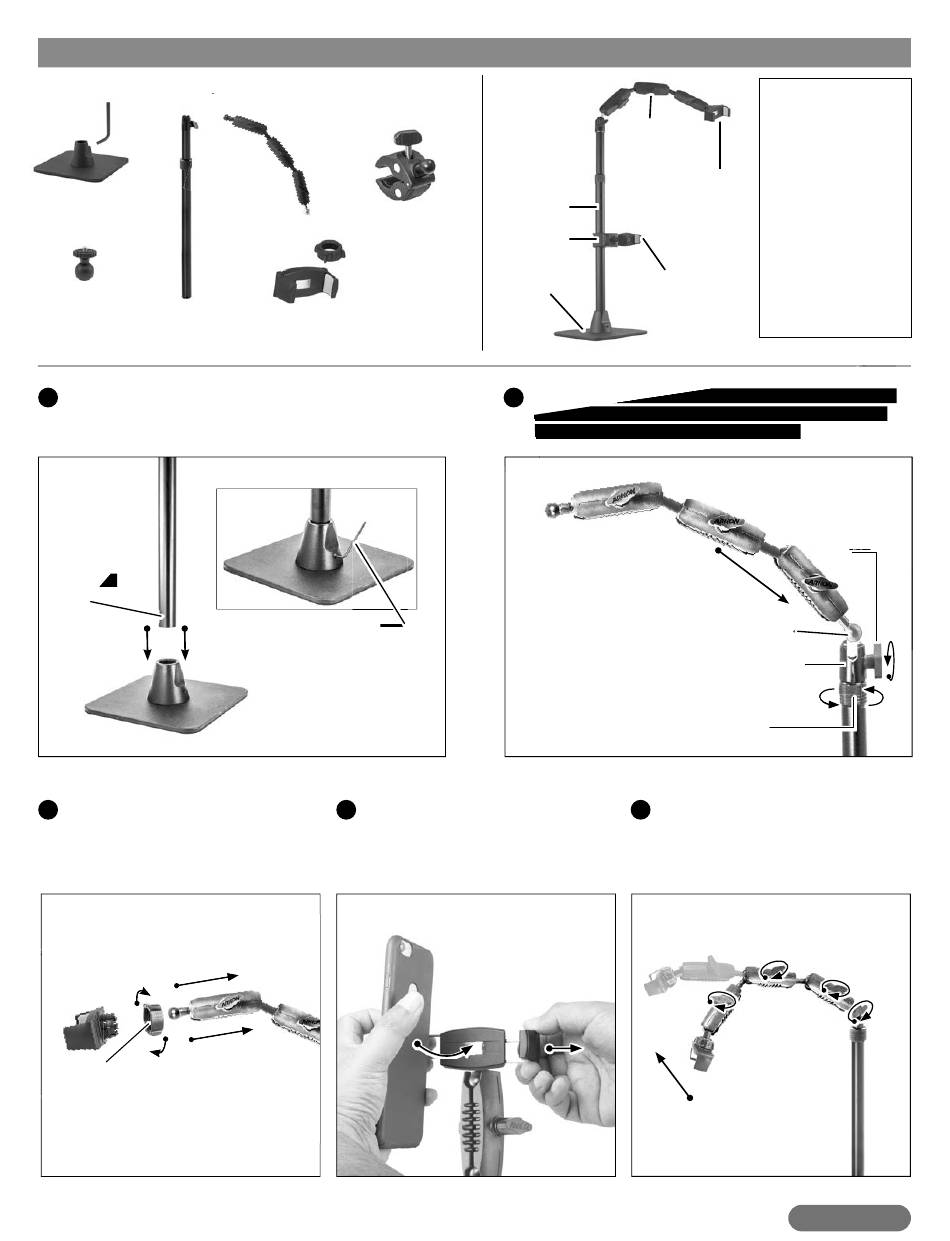

Your Cookie Decorators Bundle will arrive in seven pieces: Your Cookie Decorators Bundle will arrive in seven pieces:
SP3RMPR0PL
Overhead Arm
SPHD8BASE
Weighted Base
with Allen Wrench
SP25MMCAM
SPHD8L29
25mm to 1/4"-20
Telescoping Pole
Camera Bolt Adapter
(optional)
Insert pole into base.
1
Telescoping Telescoping
Pole
Unscrew tightening ring from holder.
3
Place ring over the 17mm end of mount
then snap the holder onto the ball. Set to
desired position, then tighten ring.
Tightening Ring
Assembly
GN031
Clamp Post Mount
MG005WR (2)
Phone Holder
Tighten clockwise
to secure.
Allen Allen
Wrench
Using two hands, insert phone into the
4
holder by pushing the device into one of the
spring-loaded support arms. Expand the other
support arm and fully insert device.
SP3RMPR0PL
SPHD8L29
GN031
MG005WR
SPHD8BASE
Assembled Mount
Attach overhead arm assembly by unscrewing the collar at the top of Attach overhead arm assembly by unscrewing the collar at the top of
2
the pole until the metal ball side of the overhead arm assembly fits the pole until the metal ball side of the overhead arm assembly fits
into the collar. Tighten collar clockwise to secure. into the collar. Tighten collar clockwise to secure.
Adjustment Collar
Individual shafts can be adjusted by
5
unscrewing the shafts' knobs to loosen.
Tighten knobs to set.
rev.020922
Telescoping pole extends
upward from 17 inches to 29
inches.
Compatibility:
Holder fits smartphones
MG005WR
measuring up to 3.9" wide.
Adapter compatible with
cameras having 1/4"-20
pattern.
IMPORTANT:
Do not overtighten ring.
Overtightening may damage
threads on holder.
Tightening Tightening
Knob
Metal
Ball side Ball side
Collar
Continued on page 2
