Arkon CLAMPRCB Quick Start Manual

CLAMPRCB | Remarkable Creators Video Phone and Tablet Clamp with Ring Light

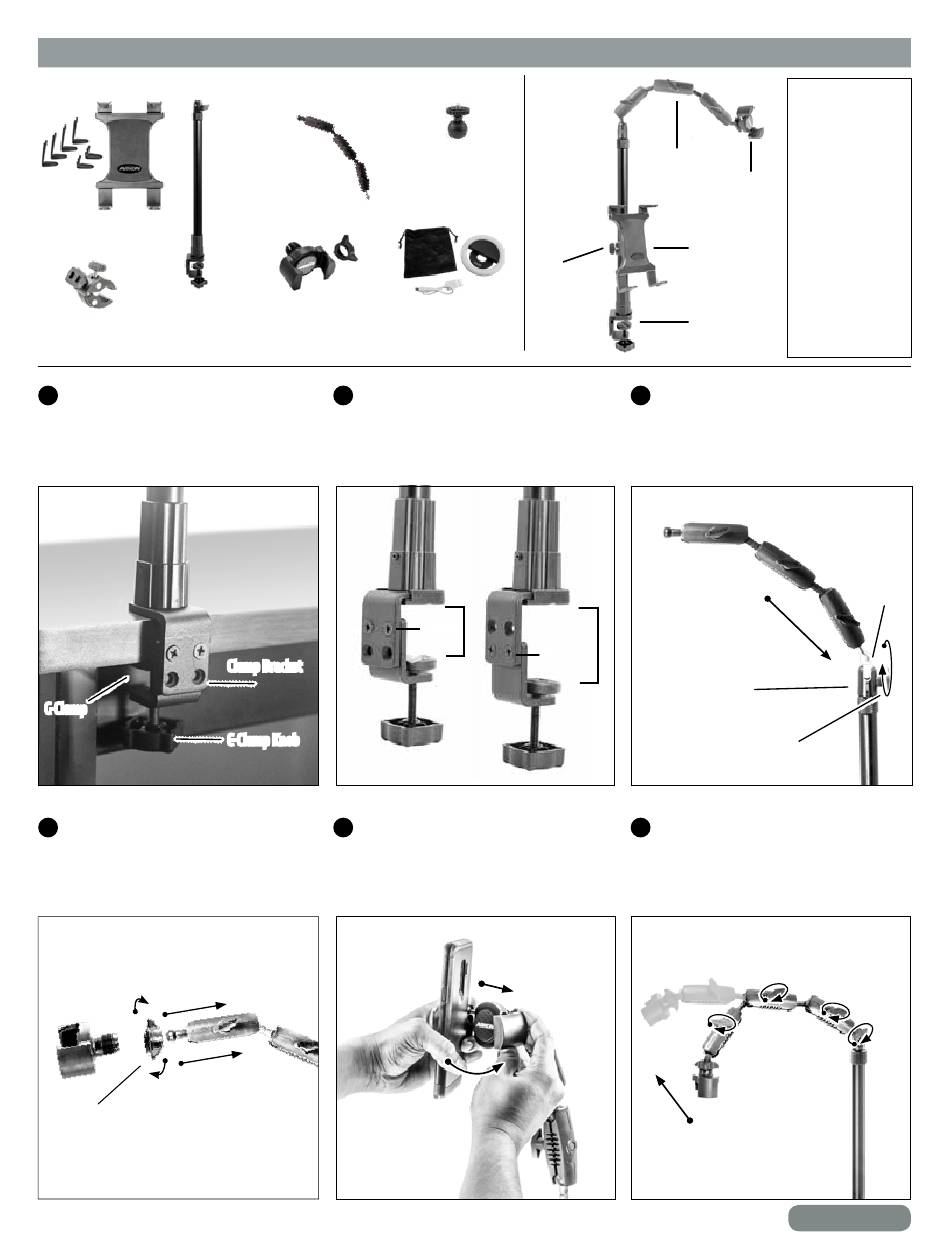

Your Remarkable Creators Bundle will arrive in seven pieces:
TAB001
Tablet Holder
HD011-B
Clamp Pedestal
GN031-SBH-B
with Telescoping
Clamp Post Mount
Pole
Attach mount to surface by tightening
1
a
C-clamp knob. Slide optional rubber clamp
boot onto the top of the mount's clamp to
prevent scratching clamp surface if desired.
C-Clamp
Unscrew tightening ring from holder.
3
Place ring over the 17mm end of mount
then snap the holder onto the ball. Set to
desired position, then tighten ring.
Tightening Ring
SP3RMPROPL
Overhead Arm
Assembly
RV001WR-B
Phone Holder
For thicker tables or desks, adjust the clamp
1
b
bracket by using a Phillips screwdriver to
remove the screws from the top position and
move them to the bottom position.
Clamp Bracket
C-Clamp Knob
Using two hands, insert phone into the
4
holder by pushing the device into one of the
spring-loaded support arms. Expand the other
support arm and fully insert device until it lays
flat against the blue rubber pad.
SP25MMCAM
25mm to 1/4"-20
Camera Bolt Adapter
(optional)
GN031-SBH-B
SPLEDRING
LED Ring Light
Screws
Screws
Telescoping pole extends
upward from 17 inches to
29 inches.
Compatibility:
SP3RMPR0PL
Fits smartphones with
RV001WR-B
cases weighing up to 2
pounds and measuring
up to 4" wide.
IMPORTANT:
TAB001
Do not overtighten ring.
Overtightening may
damage threads on
holder and also make it
HD011-B
difficult to adjust phone
and tablet holders.
Assembled Mount
Attach overhead arm assembly to clamp
2
pedestal by unscrewing the collar at the top
of the pole until the metal ball side of the
overhead arm assembly fits into the collar.
Tighten collar clockwise to secure.
Collar
Tightening
Knob
Shafts can be adjusted by unscrewing
5
the shafts' knobs to loosen. Tighten
knobs to set.
Continued on page 2
rev.092418
Metal
Ball side
