Arkon CLAMPRV29 Quick Start Manual

|
CLAMPRV29
Arkon Pro Stand Clamp Mount for Phone or Cameras

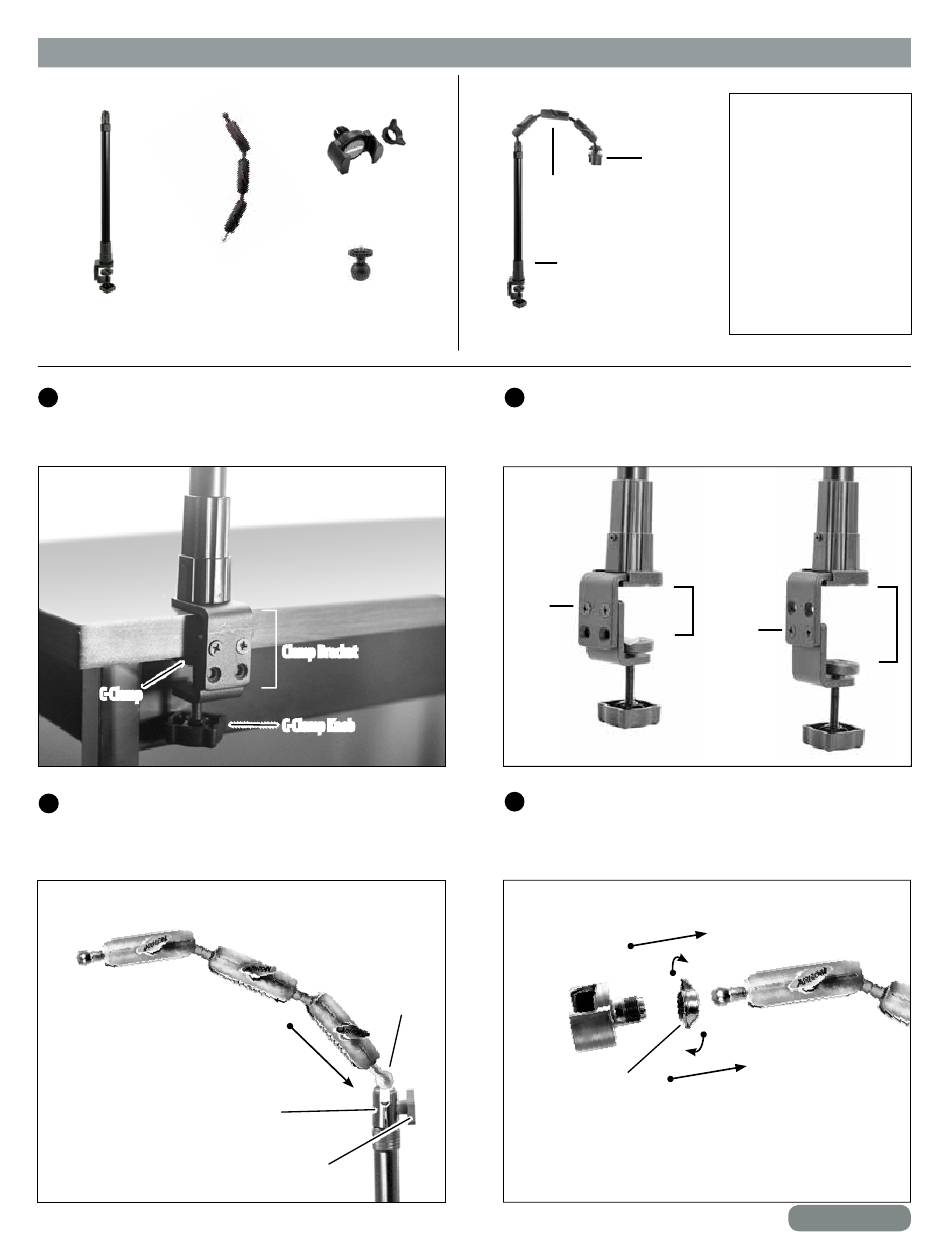

Your Pro Stand Clamp Mount will arrive in four parts:
SP3RMPR0PL
Overhead Arm
Assembly
HD011-B
Clamp Pedestal with
Telescoping Pole
Attach mount to surface by tightening C-clamp knob. Slide optional
1
a
rubber clamp boot onto the top of the mount's clamp to prevent
scratching clamp surface if desired.
C-Clamp
Attach overhead arm assembly to clamp pedestal by unscrewing the
2
collar at the top of the pole until the metal ball side of the overhead
arm assembly fits into the collar. Tighten collar clockwise to secure.
RV001WR-B
Phone Holder
SP25MMCAM
25mm to 1/4"-20
Camera Bolt Adapter
(optional)
Clamp Bracket
C-Clamp Knob
Metal
Ball Side
Collar
Tightening
Knob
RV001WR-B
SP3RMPR0PL
HD011-B
Assembled Mount
For thicker tables or desks, adjust the clamp bracket by using a Phillips
1
b
screwdriver to remove the screws from the top position and move
them to the bottom position.
Screws
Unscrew tightening ring from holder. Place ring over the 17mm end of
3
mount then snap the holder onto the ball. Set to desired position, then
tighten ring.
Tightening Ring
rev.091818
Telescoping pole extends upward from
17 inches to 29 inches.
Compatibility:
Fits smart phones with cases weighing
up to 2 pounds and measuring up to 4"
wide and 1/4"-20 compatible cameras.
IMPORTANT:
Do not overtighten ring. Overtightening
ring may damage threads on holder
and also make it difficult to adjust
holder.
Screws
Continued on page 2
