B. EXT I/P Connector (J302)
Item
External Contact
Signal Input

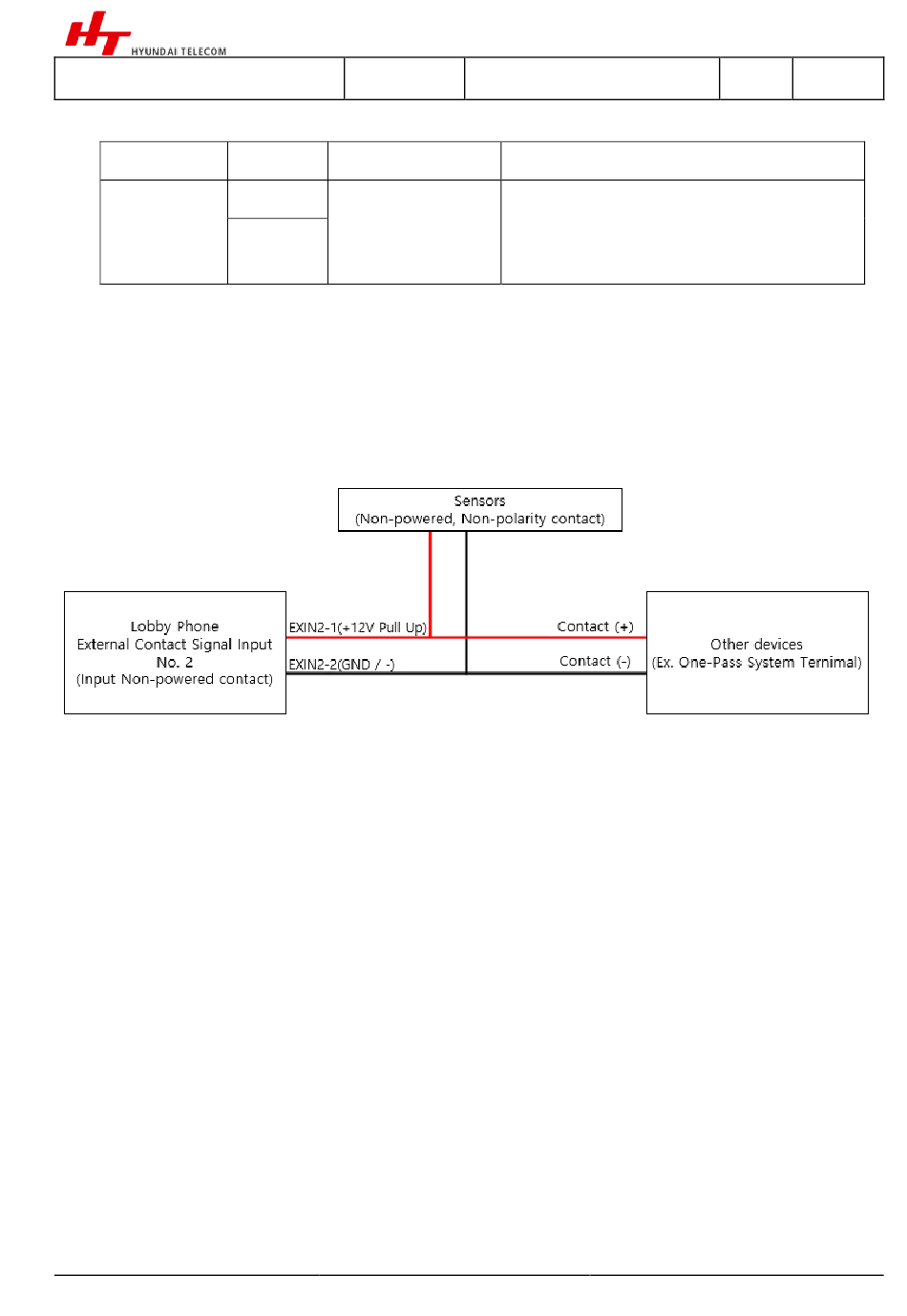

* Precaution for using external contact signal input port (EXIN2-1 / EXIN2-2)
- Non-powered, Non-Polarity contact input is available if you want to connect an external
contact device alone.
- If you use external contact devices and other devices together, it may affect the polarity and
Power specification of its port so required to check this with the HT R&D center.
EXIN2_1:
NOT applied Reverse Prevention Diode.

6. Connection Description

6.1 Power Connection
A. Connect the Power Adaptor, ANY122A5C-NIH(12V 2.5A), and a connecter, (DPEM-OD-
MH-001) and then, connect it to the HLPC-9006, J301.
6.2 Ethernet Connection
A. Connect Ethernet cable to J301 RJ45 Connector.
B. It supports an Ethernet standard pin map.
6.3 Adjusting sensitivity of a proximity sensor
A. HLPC-9006 has two IR LEDs and two DIP switches (Left IR LED and Right IR LED) that can
adjust the output so it can be adjustable with 4 levels.
HSA-0705-01-04(Φ)
년월일
2020. 11. 05.
Name Description
EXIN2-1
Contact Signal Input
Port 2-1(+), 2-2(-)
EXIN2-2
A4(210×297 ㎜)
문서번호:
AA35MIxxxx
Preliminary Port – Non-powered
(Required to ask HT R&D Center in advance)
Required to be checked the polarity if you want to
use other devices and sensors together.
