현대통신(주)

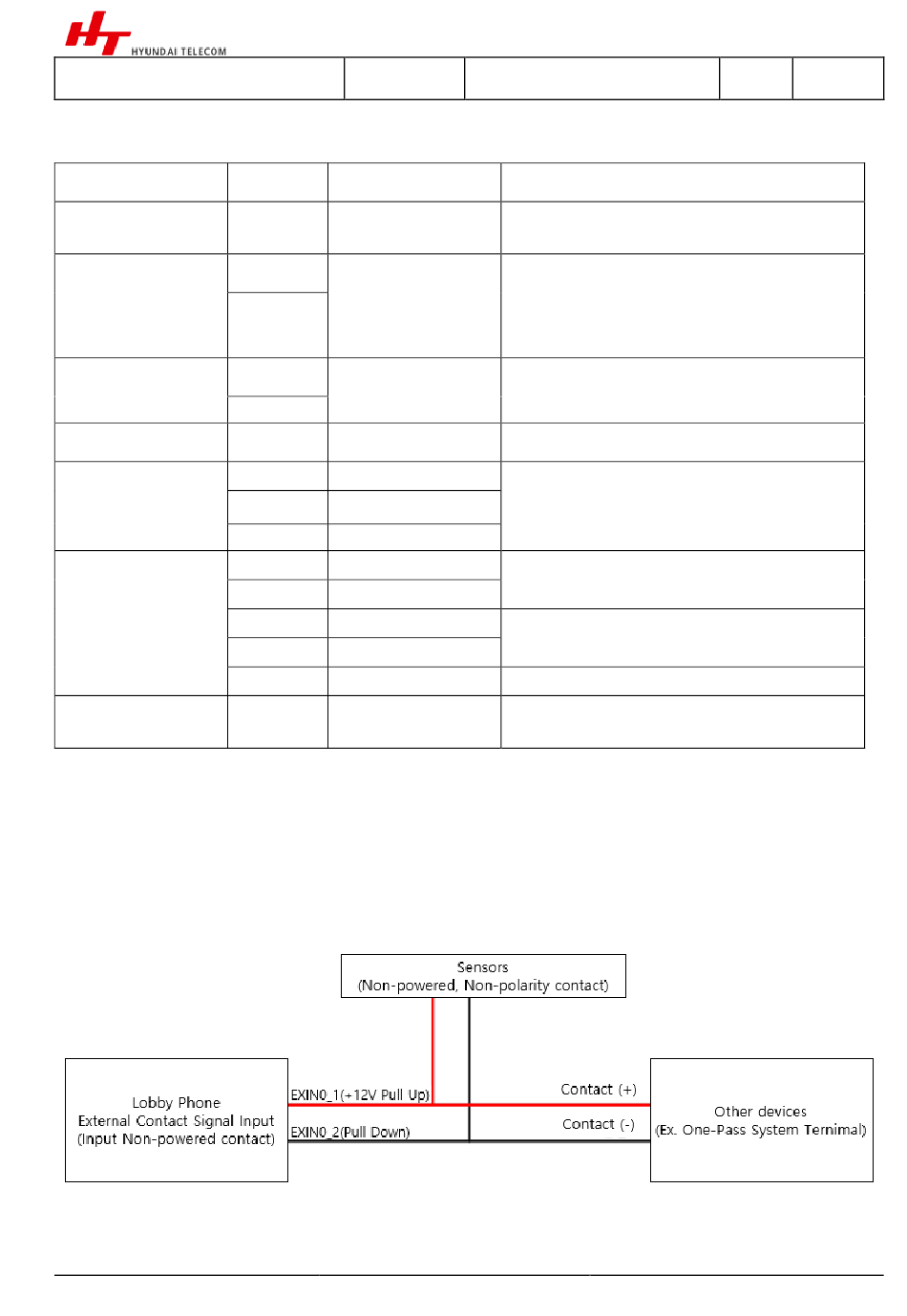

A. EXT I/P Connector (J201)
Item
Power Supply Terminal
External Contact Signal
Input
External Voltage Signal
Input
GND
Lobby Phone
Accessibility Control
Connecting Device
RS-485
Video Output Terminal
* Precaution when using external contact signal input port. (EXIN0-1 / EXIN0-2)
- If you connect the external contact device alone, it can be used with No Power, Non-Polarity
contact
- If an external contact device is used with other devices together, it may be affected by the other
device's polarity and power specification so contact the HT R&D center in advance if you want to
use it.
EXIN0_1: Applied Reverse Prevention Diode.
HSA-0705-01-04(Φ)
년월일
2020. 11. 05.
Name
Description
AUX12V
12V Power Output(+)
EXIN0-1
Contact Signal Input
Port
EXIN0-2
EXIN1-1
Fire
Contact
Input 1-1(+), 1-2(-)
EXIN1-2
GND
GND Connection
DR-NO
Contact N.O
DR-NC
ContactN.C
DR-COM
Contact Common
485-1A
RS-485 (+)
485-1B
RS-485 (-)
485-2A
RS-485 (+)
485-2B
RS-485 (-)
GND
GND
EXT-CAM
Lobby Video Output
A4(210×297 ㎜)
문서번호:
AA35MIxxxx
Preliminary Power Port (Required to ask HT R&D
Center in advance.)
Preliminary Ports – Non-powered.
(Required to ask HT R&D Center in advance)
Required to be checked the polarity if you want to
use other devices together.
Signal
Power required (Non Polarity)
Preliminary GND
N.O/N.C Contact Type Control
RS485 Communication Port
Reader
RS485
Communication
Preliminary Port
Preliminary GND
Lobby Video for CCTV – Required terminating
resistance (75Ω)
HYUNDAI TELECOM CO., LTD.
페이지
변경코드
8/12
REV.00
Remark
1 (Polarity) – Card
Port
2
(Polarity)
