Page 1: Table Of Contents
검토 문서관리자 년월일 화일/참조 이 정 훈 2020. 11. 05. Title 제목 Installation of HLPC-9006 HLPC-9006 설치시방서 HLPC-9006 Installation Guide - Contents – 1. Product Overview 2. Product Composition 3. System Configuration 4. Technical Specification 5. Product Description and Wiring Diagram 6. -
Page 2: Product Overview

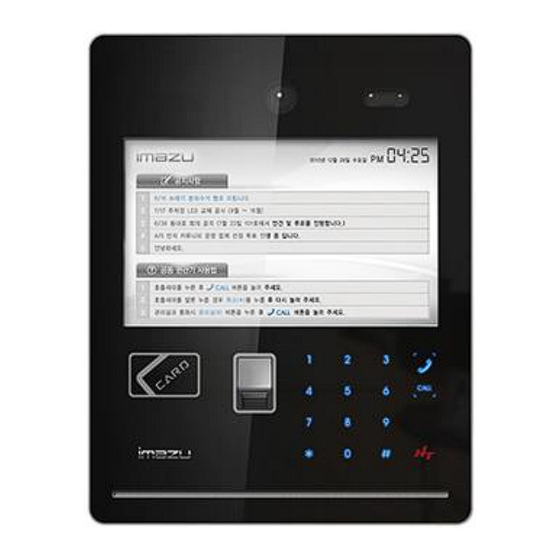

REV.00 1. Product Overview The HLPC-9006 product is adapted 10.1inch (1024X600) Wide Digital LCD based on Android OS. It is a lobby phone that transmits communication, call, and video signals using the TCP/IP. It is compatible with HT's IP type smart wall pad, HNF-I5102, HNF--I4102, and guard phone, HMS-N1070. -
Page 3: System Configuration
- It is a module that detects the motion of an object through a 24GHz microwave sensor and access control of visitors by determining whether to register through the BLE module. 3. System Configuration A4(210×297 ㎜) HSA-0705-01-04(Φ) HYUNDAI TELECOM CO., LTD. -
Page 4: Technical Specification
Microwave Reading Distance 4.1 Power Adaptor - ANY122A5C-NIH POWER - This is a power supply for a lobby phone, HLPC-9006 series, and get AC110~240V free Voltage input and outputs DC12V/2.5A voltage and supply DC12V to a lobby phone. - It is an SMPS type and has an efficiency of more than 70% and built in a fuse to protect the device in case of overvoltage input and also built in the overcurrent protection circuit which down the output voltage when using overcurrent at the output stage. -
Page 5: Product Description And Wiring Diagram
페이지 년월일 문서번호: 변경코드 현대통신(주) 5/12 2020. 11. 05. AA35MIxxxx REV.00 5. Product Description and Wiring Diagram Exterior Description A4(210×297 ㎜) HSA-0705-01-04(Φ) HYUNDAI TELECOM CO., LTD. - Page 6 페이지 년월일 문서번호: 변경코드 현대통신(주) 6/12 2020. 11. 05. AA35MIxxxx REV.00 5.2 Interior Description A4(210×297 ㎜) HSA-0705-01-04(Φ) HYUNDAI TELECOM CO., LTD.
- Page 7 페이지 년월일 문서번호: 변경코드 현대통신(주) 7/12 2020. 11. 05. AA35MIxxxx REV.00 5.3 Wiring Diagram A4(210×297 ㎜) HSA-0705-01-04(Φ) HYUNDAI TELECOM CO., LTD.
- Page 8 - If an external contact device is used with other devices together, it may be affected by the other device’s polarity and power specification so contact the HT R&D center in advance if you want to use it. EXIN0_1: Applied Reverse Prevention Diode. A4(210×297 ㎜) HSA-0705-01-04(Φ) HYUNDAI TELECOM CO., LTD.
-
Page 9: Connection Description
B. It supports an Ethernet standard pin map. 6.3 Adjusting sensitivity of a proximity sensor A. HLPC-9006 has two IR LEDs and two DIP switches (Left IR LED and Right IR LED) that can adjust the output so it can be adjustable with 4 levels. -
Page 10: Installation And Precautions
Level 2: Approx. 1 meter. Level 3: Approx. 1.2 meter. Level 4: Approx. 1.3 meter. * The default of recognizing distance of HLPC-9006 is level 1. If you want to increase the recognizing distance, please adjust the DIP switch level. 7. Installation and Precautions 7.1 Installation Order. - Page 11 3 mm or more and it performs a main power shut-off device. 7.3 Back Box. 1) HLPC-9006 main unit back box: it is the same as the HLPC-9004 backbox. 7.4 Positioning of a backbox. A4(210×297 ㎜) HSA-0705-01-04(Φ)
- Page 12 2020. 11. 05. AA35MIxxxx REV.00 1) The location of the HLPC-9006 main unit backbox. The appropriate height should be selected for the installation location of the main unit so that it is convenient to use in the lobby of an apartment.
