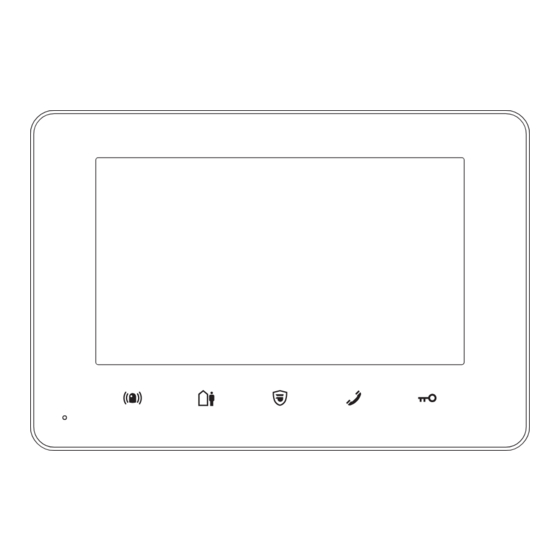

Hyundai Telecom HAF-R1071 Instruction Manual
  1. Manuals
  2. Brands
  3. Hyundai Telecom Manuals
  4. Intercom System
  5. HAF-R1071
  6. Instruction manual

Hyundai Telecom HAF-R1071 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
HAF - R1071

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAF-R1071 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai Telecom HAF-R1071

Summary of Contents for Hyundai Telecom HAF-R1071

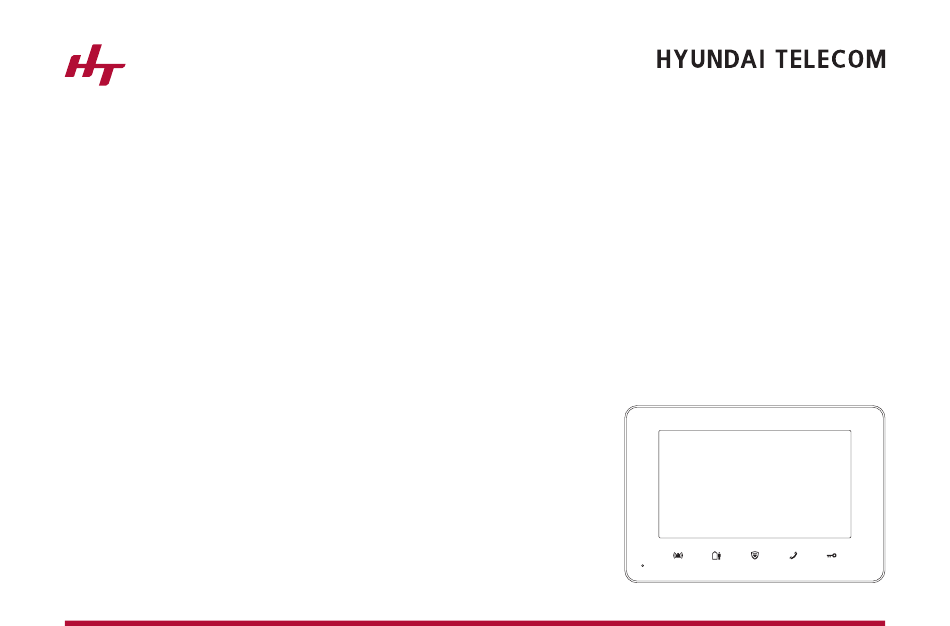

  • Page 1 Instruction Manual HAF - R1071...
  • Page 2 HAPPY TOGETHER, HAPPY TOMORROW Instruction Manual...
  • Page 3 Thank you for purchasing Home Network System of HYUNDAI TELECOM. Since this system is developed and produced by a R&D center of HYUNDAI TELECOM and has various convenient functions, please read this Instruction Manual carefully before use so you can fully understand the use of the equipment. The functions of this product or the content of the Instruction Manual can be modified without a prior notice for the purpose of quality improvement.

  • Page 4: Table Of Contents

    Table of Contents Precautions Precautions on use External structure and description Installation drawing and wiring diagram Composition of product How to use Screen construction Calling option Security option Size and specification Specification Product warranty Instruction Manual...
  • Page 5 HAF-R1071 Precautions Precautions on use External structure and description Installation drawing and wiring diagram Composition of product If a power plug or an equipment connector applies as a blocking device, such device has to be in a location where it can be manipulated easily.

  • Page 6: Precautions On Use

    Precautions on use This part contains matters that can result in a serious injury or even death. Please read and be fully aware of the contents for the correct use of the equipment. Any attempts of disassembly, repair, Do not have the product exposed to a remodeling are prohibited.
  • Page 7 Precautions on use This part contains matters that can result in an injury or a property damage. Please read and be fully aware of the contents for the correct use of the equipment. Do not place any equipments that generate Be careful not to have water get into a strong magnetism (a large TV or speaker) camera of a doorphone while cleaning the...

  • Page 8: External Structure And Description

    External structure and description Speaker Emergency It is used in case of emergency. MENU It activates and deactivates Empty House or SELECT Away Mode In-House Mode. Guard phone It calls the guard phone. DOWN Call It starts and ends a call when receiving a call. It opens the door while calling through a doorphone Open Door or the Lobby phone or on the phone.

  • Page 9: Installation Drawing And Wiring Diagram

    2. LA2 with a screw (M4X20,4EA), adjusting angle. 3. LB1 4. LB2 1 2 3 4 5 6 7 8 AUX Power supply 3. Finish inner wiring work on HAF-R1071. 5. LC1 6. LC2 1. +12V 2. GND 7. SCA 8.

  • Page 10: Composition Of Product

    Composition of product HAF-R1071 4X20mm(4EA) For installing bracket Monitor Wall Bracket 3X6mm(1EA) For fixing the body Wire for master connection Wire for connecting sensor Wire for connecting a Door 8P(1EA) 5P(1EA) phone camera 4P(1EA) Wire for connecting Wire for connecting a Lobby...
  • Page 11 HAF - R1071 How to use Screen construction Calling option Security option Instruction Manual...

  • Page 12: Screen Construction

    Screen construction 1. Main menu Menu composition Menu MANAGER SET SECURITY SET VOLUME SET VIDEO SET LANGUAGE Functions of each menu Menu Function Administrator only. MANAGER SET Delay setting and user’s password. SECURITY SET Adjusting volume of bell and call. VOLUME SET Adjusting brightness and color of screen.
  • Page 13 Screen construction 2. Security Menu composition This menu is for setting of delay time on away mode and changing user’s password to inactivate away mode or disarm emergency mode. SECURITY DELAY TIME At HOME SET PWSD CHANGE Functions of each menu Menu Function A It can delay the detection of a sensor during the delay time if Away/...
  • Page 14 Screen construction Menu composition 2. Security setting - Delay setting menu This menu is for setting delay time. It can be set as 30 seconds up to 600 seconds and pressing Select button DELAY TIME followed by a melody saves the setting. the changed settings.
  • Page 15 Screen construction Menu composition 2. Security setting - Home Mode setting This menu is for monitoring outsider's trespass by activating Security Mode AT HOME SET on the main device while user is still at home and only monitors the areas Cancel monitored by a magnetic sensor.
  • Page 16 Screen construction Menu composition 2. Security setting - Password setting This menu is for changing user's password PASSWORD CHG PASSWORD CHG for activating and deactivating Away At PASSWORD NEW PASSWORD Home Security Mode. * Initial password is set as 1234. Enter password three times in total for saving changed password.
  • Page 17 Screen construction Menu composition 3. Volume Setting This menu is for adjusting the volume of bell chiming a visit of a visitor and of call. The volume range of bell is between 1 and 3 and that of a received call is between 1 and 4.
  • Page 18 Screen construction Menu composition 4. Video Setting This menu is for adjusting the brightness and color of LCD display of the equipment. * Each menu is adjustable between Level 1 VIDEO SET and 4. * It is initially set as Stage 2. BRIGHT CONTRAST 2 Functions of each menu...
  • Page 19 Screen construction Menu composition 5. Language Setting It is for changing language of every menu being displayed on the screen LANGUAGE SET * It is initially set as English ENGLISH Functions of each menu Menu Function MENU Move to Top Menu. It repeats selection and cancellation with a press and, once it is selected, SELECT the color of the current language changes.

  • Page 20: Calling Option

    Calling option If a call is made to a door phone 1. Call through door phone DOOR OSD on the screen and Call button on the front start to flicker and generate a calling sound, showing It is for making a call through a door phone images through the door phone.
  • Page 21 Calling option If a call is made from the lobby phone 2. Call through the Lobby phone The Lobby OSD on the screen and Call button on the front start to flicker and generate a calling sound, showing images. You can take the call by pressing buttons as follows and not receiving a call for 30 seconds ends the call It is for making a call through a door phone installed at the Lobby phone of housing.
  • Page 22 Calling option If a call is made by the guard phone 3. Call with the guard phone Guard OSD on the screen and Call button on the front start to flicker and generate a calling sound. You can take the call by pressing buttons as follows and not receiving a call for 30 seconds ends the call automatically. It is for making a call at a controller installed at the Guard Phone.
  • Page 23 Calling option 4. Call to neighbor If neighbor calls you Neighbor OSD on the screen and Call button on the front start to flicker and generate a calling sound. It is for making a call with neighbors. You can take the call by pressing buttons as follows and not receiving a call for 30 seconds ends the call automatically. It does not directly call neighbors in the same apartment.

  • Page 24: Security Option

    Security option Password is required for activating and deactivating Away / At Home Mode and clearing security/emergency 1. Before use alarm. * The initial password is set as "1234". Terms - Delay time: The time you get or leave home after activating At Home Mode. (the default value is set as 30 seconds when released) - For changing delay time, refer to Delay Setting menu on the page 12.
  • Page 25 Security option When a OUTGOING SET OUTGOING SET When there is DISABLE DISABLE wrong an error in PASSWORD ERR SENSOR CHECK password is opening and entered closing sensor To inactivate Away Mode Open the door while Away Mode is activated and cancel Security Mode promptly as follows within the delay time. OUTGOING SET ENABLE PASSWORD...
  • Page 26 Security option Activation of Home Mode 3. At Home Mode Close every door and press the following buttons and enter password on the screen and this procedure generates It is for monitoring outsider's trespass by 'beep beep' sounds for displaying the state of delay. When the delay time is over, Security Mode gets to be activated. activating At Home Mode while staying home.
  • Page 27 Security option Generation of emergency alarm 4. Emergency alarm Pressing Emergency button below monitor for longer than 1.5 seconds as follows raises the emergency alarm. It detects an emergency situation regardless of the activation of Security Mode and notifies house, door phone, and the security office of such.
  • Page 28 HAF - R1071 Size and specification Specification Product warranty Instruction Manual...

  • Page 29: Specification

    Specification Main unit of HAF-R1071 Classification Specification Power AC 100~240V/50~60Hz Power consumption Max. 18W Call Hands-Free 7" color TFT LCD LCD data Angle of view Top: 10 ° , bottom: 30 ° , left: 45 ° , right: 45 °...
  • Page 30 Memo Instruction Manual...

  • Page 31: Product Warranty

    Product warranty Warranty Conditions HYUNDAI TELECOM Products are supplied with one(1) year return to base warranty From the date of purchase, We will reqair or replace the defective item with a new or factory rebuilt replacement. Condition 1. This warranty applies to the original purchaser only.
  • Page 32 HAF-R1071 www.hyundaitel.com Hyundai Telecom Bldg.,107, Yeouidaebang-ro, Yeongdeungpo-gu, Seoul, 07433, KOREA 6320000232 REV.0 Tel +82.2.2240.9234/9271...
