READ ALL INSTRUCTIONS BEFORE
USING THIS PUMP. FAILURE TO READ
AND FOLLOW THE INSTRUCTIONS IN
THIS USER MANUAL COULD CAUSE
DEATH OR SERIOUS INJURY.

Table of Contents

GENERAL INFORMATION ..................................... 1, 2
WARNINGS ............................................................ 3
PUMP COMPONENTS ........................................... 4
BREATHING AIR REQUIREMENTS ........................ 4
Assembling the Free-Air Pump .................... 4
How Air Motor Works ................................... 4
How Motor Drives Pump .............................. 4
How Pump Supplies Air ................................. 4, 5
Installation ..................................................... 5
OPERATING THE FREE-AIR PUMP ........................ 5, 6
Maintaining the Air Motor ........................... 6
Ensuring Pump Performance ....................... 6
TROUBLESHOOTING GUIDE ................................. 6, 7
REPLACEMENT PARTS ........................................... 7
PUMP WARRANTY ................................................ 7
AIR FILTER REPLACEMENT SCHEDULE ................ 7, 8

General Information

Bullard Free-Air Pumps MUST be located in a clean air
environment where at least Grade D breathable air is assured
at all times. Bullard Free-Air Pumps transfer ambient air from
a clean air location, where at least Grade D breathable air
can be assured at all times, to workers wearing Type C or CE
continuous flow airline respirator hoods or tight fitting half or
full face masks. Only NIOSH approved respirators should be
used with this pump.
The ambient air is filtered through a medium efficiency inlet air
filter and a carbofine outlet filter before entering the respirator's
air supply hose.
Bullard Free-Air Pumps are oil-less and have rotary carbon
vanes. They produce no carbon monoxide, oil vapors, oil mist
or moisture. They do not require expensive carbon monoxide
monitors, high temperature alarms or other standard supplied
air pressure monitoring equipment. No calibration is required.
www.bullard.com

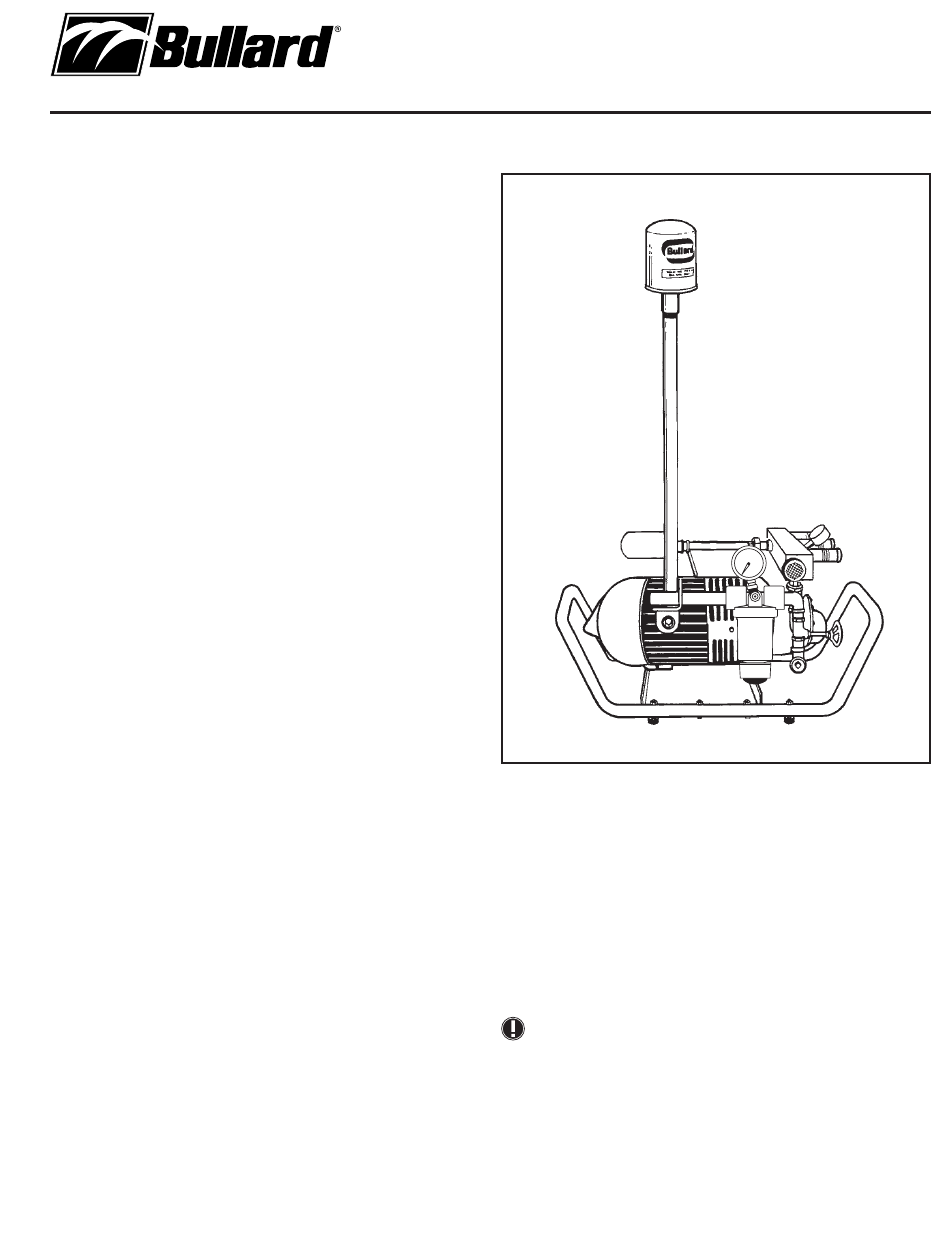

ADP3CA Free-Air® Pump
NOTE
Industrial High Pressure Compressed Air (psig)
determines horsepower of air motor which directly
affects output air pressure and output air volume coming
from the Free Air Pump Compressor that is sent to the
Respirator System.
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Free-Air ADP3CA and is the answer not in the manual?

Questions and answers

Related Manuals for Bullard Free-Air ADP3CA

Summary of Contents for Bullard Free-Air ADP3CA

  • Page 1: Table Of Contents

    AIR FILTER REPLACEMENT SCHEDULE ....7, 8 AUTHORIZATION FOR RETURNED GOODS ..8 General Information Bullard Free-Air Pumps MUST be located in a clean air environment where at least Grade D breathable air is assured at all times. Bullard Free-Air Pumps transfer ambient air from...
  • Page 2 42 CFR Part 84, Subpart J, Table 8, Type C or CE Respirator System. *** Quality Check at Factory occurs on every pump, built by Bullard, to assure air flow and pressure parameters are reliable. Model ADP3CA Pump Performance Table Incoming Drive-Air Pressure Maintained at 85 psig Pump’s Output Air...

  • Page 3: Warnings

    REDUCE THE AIR FLOW TO THE RESPIRATOR, WHICH COULD CAUSE DEATH OR SERIOUS INJURY OR LIFE-THREATENING DELAYED LUNG DISEASE INCLUDING BUT NOT LIMITED TO SILICOSIS, PNEUMOCONIOSIS, OR ASBESTOSIS. 5. DO NOT MODIFY OR ALTER THIS PUMP IN ANY MANNER. USE ONLY APPROVED BULLARD FREE-AIR PUMP COMPONENTS AND REPLACEMENT PARTS ON THE PUMP.

  • Page 4: Pump Components

    If the inlet air filter cannot be placed at a source containing clean, at least Grade D breathable air, install Bullard’s 50 foot Inlet Extension Hose Kit (Part No. V50IN) to the pump’s inlet port. See the directions shipped with the Extension Hose Kit for assembly instructions.

  • Page 5: Installation

    If the inlet filter cannot be placed at a source containing clean, from compressor to pump; 1” or 3/4” internal diameter is best. A at least Grade D breathable air, install Bullard’s 50 foot Inlet larger diameter compressed air hose may be required depend- Extension Hose Kit (Part No.

  • Page 6: Maintaining The Free-Air Pump

    GAUGE (5) increases, the filter needs replacement. OUTLET PRESSURE TOO LOW 2. Flush PUMP if necessary - Adjust THROTTLE VALVE to increase motor speed Should dirt, foreign particles, moisture or oil be permitted to - Check for clogged INLET FILTER www.bullard.com...

  • Page 7: Replacement Parts

    In no event shall Bullard be responsible for damages for loss of use - Place portion of air supply hose in large container of ice (e.g. 30 or other indirect, incidental, consequential or special costs, expens- gallon trash can).

  • Page 8: Authorization For Returned Goods

    GOODS SHIPMENT UNLESS YOU HAVE FIRST FOLLOWED ALL OF THE STEPS OUTLINED BELOW. 3. Prior to packing the product for return shipment to Bullard, be certain that it has been fully decontaminated and cleaned of To return goods to Bullard for repair, or replacement, whether under any hazardous materials which may have settled on the prod- the terms of Bullard’s warranty provisions or for paid repairs, you...
