Read all instRuctions befoRe using
this PuMP
table of contents

geneRal infoRMation ........................................... 1

Warnings ............................................................. 3, 4
Pump Components ................................................. 5
Breathing Air Requirements ............................... 6
Assembling The Free-Air Pump .......................... 7
How Air Motor Works ........................................ 7
How Motor Drives Pump .................................... 7
How Pump Supplies Air .................................... 7
Installation ..................................................... 7, 8
Operating The Free-Air Pump ............................... 9, 10
Maintaining The Air Motor ................................. 11
Maintaining The Pump ...................................... 11, 12
Ensuring Pump Performance .............................. 12
Troubleshooting Guide ....................................... 13
Replacement Parts ............................................... 14
Pump Warranty .................................................... 15
Air Filter Replacement Schedule ........................ 16
Authorization For Returned Goods .................... 17
general information

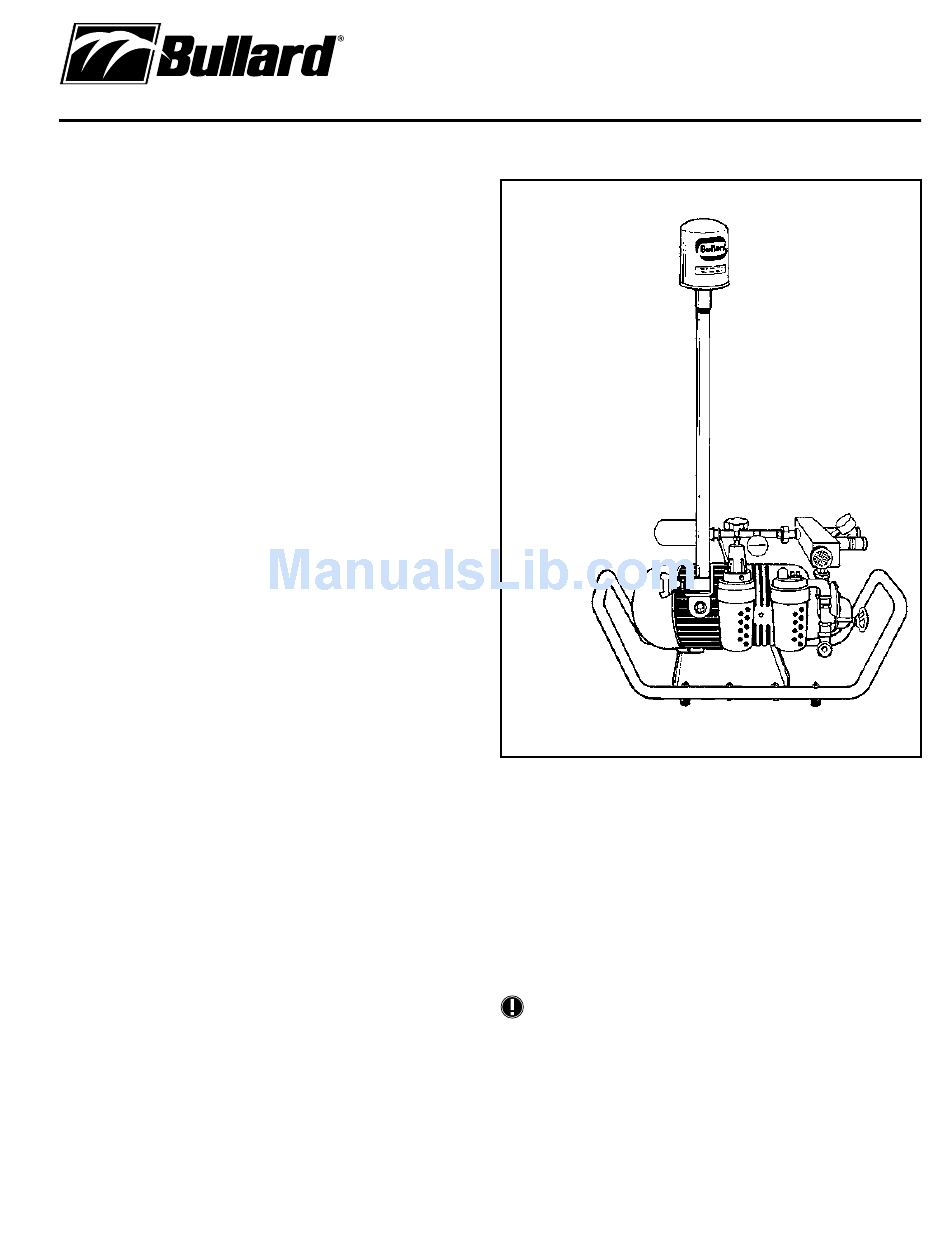

Bullard Free-Air Pumps transfer ambient air from a clean air location, where
breath-able air can be assured at all times, to workers wearing Type C or CE con-
tinuous flow supplied-air respirator hoods or tight fitting half or full face masks.
The ambient air is filtered through a medium efficiency Inlet Air Filter and a
Carbofine Outlet Filter before entering the respirator's air supply hose.
Bullard Free-Air Pumps are oil-less and have rotary carbon vanes. They produce
no carbon monoxide, oil vapors, oil mist or moisture. They do not require expen-
sive carbon monoxide monitors, high temperature alarms or airline filters. No
calibration is required.
note
Drive-Air pressure (psig) determines horsepower of air motor which
directly affects output air pressure and output air volume. When operating
a hood-style respirator with a Frigitron 2000 Series air conditioner incoming
drive air pressure must be set at 95 psig for optimum pump performance.
Attempting to operate a hood-style respirator with a Frigitron air
conditioner with the incoming drive air at less than 95 psig may result in an
inadequate supply of air to the worker. See below for pump performance.
www.bullard.com
ADP20 Free-Air® Pump
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADP20 and is the answer not in the manual?

Questions and answers

Related Manuals for Bullard ADP20

Summary of Contents for Bullard ADP20

  • Page 1 Bullard Free-Air Pumps transfer ambient air from a clean air location, where Drive-Air pressure (psig) determines horsepower of air motor which breath-able air can be assured at all times, to workers wearing Type C or CE con- directly affects output air pressure and output air volume.
  • Page 2 ** It should be noted that the minimum air flow required for each tight-fitting, mask-style respirator is four (4) cfm. A minimum airflow of six (6) cfm is required for each hood-style respirator. The ratings which appear here, therefore, are conservative, but reflect Bullard Company’s position that worker respiratory protection is enhanced when air flow available to the respirator wearer is above the NIOSH required minimums.

  • Page 3: Warnings

    RESULTING IN POSSIBLE DEATH OR SERIOUS INJURY TO THE RESPIRATOR WEARER. 5. DO NOT MODIFY OR ALTER THIS PUMP IN ANY MANNER. USE ONLY APPROvED BULLARD FREE-AIR PUMP COMPONENTS AND REPLACEMENT PARTS ON THE PUMP . FAILURE TO USE APPROvED BULLARD COMPONENTS AND REPLACEMENT PARTS INvALIDATES ALL BULLARD WARRANTIES AND MAY RESULT IN DEATH OR SERIOUS INJURY TO THE RESPIRATOR WEARER.

  • Page 4: Pump Components

    If the inlet air filter cannot be placed at a source of clean, breathable air, install Bullard’s 50 foot Inlet Extension Hose kit (Cat. No. v50IN) to the pump’s inlet port. See the directions shipped with the Extension Hose kit for assembly instructions.

  • Page 5: Installation

    Use ample size hose from compressor to pump; 1” or 3/4” internal diameter is best. A larger diameter compressed air hose may be required 3. Pump Model ADP20 will operate sitting on its four rubber mounts. It does not depending on operating conditions and length of compressed air line.

  • Page 6: Maintaining The Pump

    - Adjust THROTTLE vALvE to increase motor speed proper pressure and full air flow. To check the filter - while running the pump, momentarily remove the FILTER (1) from the INLET PIPE (2). If the - Check for clogged INLET FILTER www.bullard.com...

  • Page 7: Replacement Parts

    - Place portion of air supply hose in large container of ice (e.g. 30 gallon trash can). In no event shall Bullard be responsible for damages for loss of use or other - keep air supply hoses out of direct sunlight or other heat sources.

  • Page 8: Air Filter Replacement Schedule

    UNLESS YOU HAvE FIRST FOLLOWED ALL OF THE STEPS OUTLINED BELOW. 3. Prior to packing the product for return shipment to Bullard, be certain that To return goods to Bullard for repair, or replacement, whether under the terms of it has been fully decontaminated and cleaned of any hazardous materials Bullard’s warranty provisions or for paid repairs, you MUST:...
