WARNING
Read and follow all instructions and warnings before
using. Keep these Assembly Instructions for reference.
For proper use including complete system assembly and
performance checks, read and follow the appropriate EVA
or EVAHL respirator series user manual being used with
the EVA Ergonomic Backpack Harness.
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS AND
WARNINGS COULD CAUSE DEATH OR SERIOUS INJURY OR
LIFE-THREATENING DELAYED LUNG DISEASE.
Description
The EVA Ergonomic Backpack Harness by Bullard®
is designed to distribute the weight of your EVA or
EVAHL respirator providing comfort and maneuver-
ability for extended periods of time. The EVA Ergonomic
Backpack Harness is an optional method of wearing an EVA
or EVAHL respirator. When used, it must be paired with an
EVABELT1 or EVABELT2. Users do have the option to omit
the EVA Ergonomic Backpack Harness and use only an EVA-
BELT1 or EVABELT2.
Approval, Cautions, and Limitations
The EVA Ergonomic Backpack Harness is one component of
the EVA and EVAHL NIOSH approved respirator systems. Re-
fer to an EVA or EVAHL user manual or the NIOSH approval
label located in the EVA and EVAHL respirator user manuals
for approved configurations and applicable NIOSH Cautions
and Limitations.

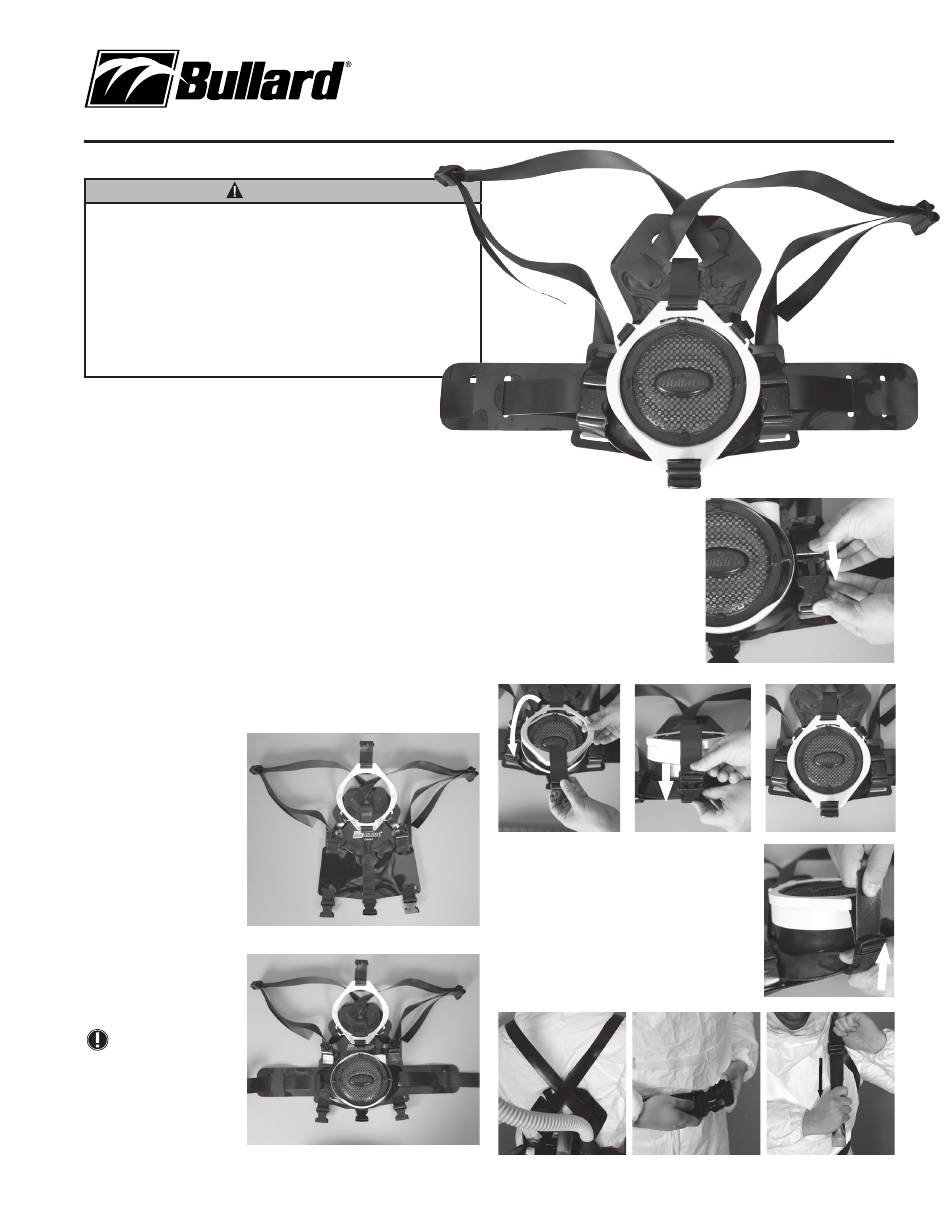

Assembly
EVA/EVAHL Blower Unit with Filter PAPRFC3
1. Lay EVABKPK2 on a
flat surface, unsnap
the three (3) buckles,
and fold back the
white EVA holder
towards the top of
the EVA Ergonomic
Backpack Harness
(Figure 1).
2. Place an assembled
Fig. 1
EVA/EVAHL (with
battery and filter
installed) and EVA-
BELT1 or EVABELT2
onto EVABKPK2 with
EVA facing up
(Figure 2).
NOTE:
If using PAPRFC3,
the filter must be
installed at this
time.
Fig. 2
(Ergonomic Backpack Harness)
3. Snap both buckles on
either side of the EVABKPK2
around the EVABELT1 or
EVABELT2
(Figure 3).
4. Bring the white EVA holder down
onto the PAPRFC3 filter and
snap the remaining buckle on
the white EVA holder to the bot-
tom of the EVABKPK2 (Figure 4).
Fig. 4
5. Tighten the strap on the bottom of the
white EVA holder to securely retain
EVA/EVAHL to EVABKPK2 (Figure 5).
6. Don (put on) the EVA Ergonomic
Backpack Harness ensuring the
shoulder straps are crossed at
the back, buckle the EVABELT1 or
EVABELT2, and adjust the shoulder
straps for a comfortable fit (Figure 6).
Fig. 6
www.bullard.com
EVABKPK2
Fig. 3
Fig. 5
