Owner's Guide and Installation Manual
Attach sales receipt to this card and retain as your proof of purchase
DATE OF PURCHASE:
MODEL NUMBER:
To register your fixture, please visit our website www.montecarlofans.com

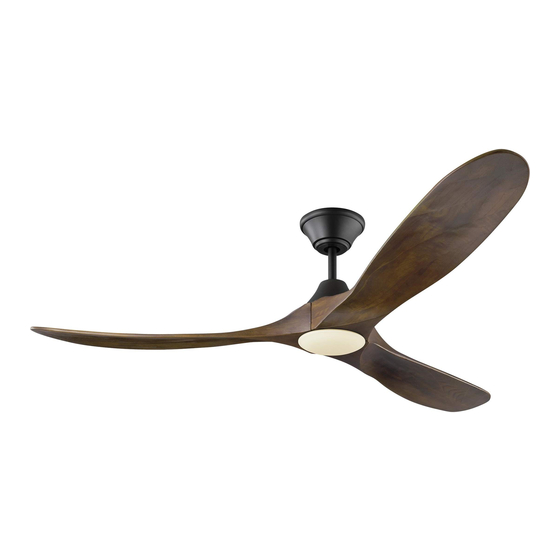

3MAVR60XXD Series Fan
CUL Model NO. : 3MAVR60XXD
RETAILER NAME:
RETAILER ADDRESS:
5.8 kg
12.8 lbs
Total fan weight with light
Advertisement
Table of Contents
Related Manuals for Monte Carlo Fan Company ICF-VC-3MAVR60D
Summary of Contents for Monte Carlo Fan Company ICF-VC-3MAVR60D
- Page 1 Owner’s Guide and Installation Manual 3MAVR60XXD Series Fan CUL Model NO. : 3MAVR60XXD Attach sales receipt to this card and retain as your proof of purchase DATE OF PURCHASE: RETAILER NAME: RETAILER ADDRESS: MODEL NUMBER: To register your fixture, please visit our website www.montecarlofans.com 5.8 kg 12.8 lbs Total fan weight with light...
-
Page 2: Cautions And Warnings
Cautions and Warnings WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING READ AND SAVE THESE INSTRUCTIONS Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70), including fire-rated construction. -
Page 3: Safety Cable Installation
Ceiling joist Ceiling Outlet Box Ceiling Mounting Joists Bracket Screw/ Washers /Spring Washers 2˝ x 4˝ Outlet Before you begin installing the fan, Switch Before installing this fan makes sure the Use metal outlet box suitable for fan power off at Service panel and lock outlet box is properly installed to the support and use only the screws provided service disconnecting means to prevent... - Page 4 Downrod Yoke Keeper Cross Canopy Canopy ring Cross pin Screwdriver Yoke cover Downrod Partially loosen downrod set screws from Place downrod over canopy, canopy ring For easy installation of cross ping on next yoke at top of motor assembly. and yoke cover. step.
- Page 5 Receiver To Motor U- Red White- AC IN N To Motor V- Purple Black- AC IN L To Motor W- Brown To Light White To Light Blue Receiver 120V Supply (Power Supply) Make wiring connections using wire connectors provided as indicated above. Red from fan to Red from receiver marked Motor U.
- Page 6 LED light fixture Loosen 2 and remove 1 preassembled Connect light lead wires from fan to the Attach LED light fixture onto the light pan, screw from light pan. Save screw for later lead wires from LED light fixture with aligning the keyhole slots on the LED light use.
-
Page 7: Remote Control Setting And Operation
REMOTE CONTROL SETTING and OPERATION Remove the battery cover from the remote control transmitter and Remote Transmitter install battery. Replace the cover. Note: Use 2 1.5V/AAA battery to replace battery. (Fig. 1) Note: If not using for long periods of time, remove battery to prevent damage to remote transmitter, and store the remote transmitter away from excess heat or humidity. -
Page 8: Light On/Off
LED Indicator The buttons on the remote control transmitter control the fan speed and light as follows. (Fig. 4) UP Speed Press the button to get desired fan speed, Low to High. Down Speed Press the button to get desired fan speed, High to Low. Press the OFF button to turn fan off. -
Page 9: Troubleshooting
Trouble Shooting or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, installation, please call our Customer Service Center at the number printed on your parts list insert sheet. Warning means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. - Page 10 Nov.2018 Feb.2019 update blade assembled way Mar.2019 light fixture installation Feb.2020 branding Apr.2021 adda wording about learn mold...
