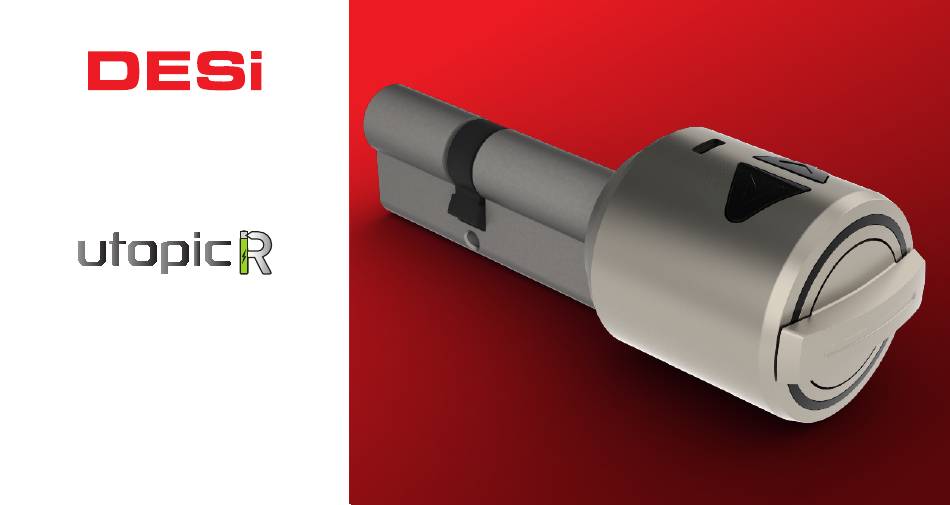

Smart Lock
Device Type AD
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the utopic R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DESi utopic R

Summary of Contents for DESi utopic R

  • Page 1 Smart Lock Device Type AD USER MANUAL...

  • Page 2: General Information And Warnings

    GENERAL INFORMATION and WARNINGS Before using your smart lock, Locking way (right or left handed door) and Number of turns should be adjusted properly. Otherwise, the smart lock will not work in the correct way and maybe broken. For emergency conditions, we recommend you to put the keys in an accessible place (like car, bag etc.) If there is any problem with the door or the locking mechanism, first of all, those problems have to be solved.

  • Page 3: Potentially Explosive Atmospheres

    POTENTIALLY EXPLOSIVE ATMOSPHERES Areas with a potentially explosive atmosphere are often, but not always marked clearly. Potential areas may include: fueling areas (such as gasoline stations); below deck on boats; fuel or chemical transfer or storage facilities; areas using liquefi ed petroleum gas (such as propane or butane);...

  • Page 4: Disposal Of Waste Batteries

    WARRANTY DESi products are covered by a limited manufacturer warranty. DESi warranty is limited to the warranty rules and legislation present in each country. The warranty only covers manufacturing faults. The warranty does not cover misuse, wrong installation or damage due to a faulty installation or wrong maintenance.

  • Page 5: Features Of The Device

    Your motorized cylinder is equipped with rechargeable Lithium Ion batteries. 2. BOX CONTENT According to DESi labratory tests, with a usage of 10 operations per day on a 2 turns lock, battery life of (May vary according to model) motorized cylinder is as follows:...
  • Page 6 3. PARTS OF DEVICE and INSTALLATION 1.STEP Remove Control Cylinder existing Buttons cylinder. microUSB 2. STEP Charging Port Install motorized cylinder and Handle for tighten Manual Operation the screw...
  • Page 7 In some security doors, even if you remove cylinder screw, you cannot remove cylinder due to cramped installation of cylinder defender. Follow the instructions below, for that kind of situations: - Untighten the screws of the cylinder defender (don’t remove the screws) - Remove cylinder screw and take out the old cylinder.

  • Page 8: Mobile Application

    MOBILE APPLICATION If you enroll your smart phone as first controller, it will be master controller of your smart lock. Both master and user controllers can lock/unlock the smart lock. Besides, only the master controller can change settings of smart lock. Before using your smart lock, you should adjust it properly by setting “locking way”...
  • Page 9 Register, and then tap on the + in the bottom right corner to pair smart lock. From the screen, select 'Smart Locks,' then tap on 'Utopic R' smart lock and follow the steps. The easy setup wizard will guide you through pairing the lock and configuring all settings.

  • Page 10: App Setting

    5.2. APP SETTING If you touch the menu button in the top right corner while not connected to the smart lock, you will access the application's settings menu. The relevant menu items are as follows: LANGUAGE: You can change the language of the application. THEMES: You can view and select themes designed with different colors.

  • Page 11: Device Info

    5.3. SMART LOCK SETTINGS Master user can adjust settings by touching the 'SETTINGS' menu. These menus can only be viewed and modified by master users. 5.3.1. DEVICE INFO In this tab, you can see the following information: Model Device Mac Adress Connection Status Users Software Version...

  • Page 12: Settings Tab

    CONNECTION PREFERENCE: This option becomes available only after adding the DESi Wifi Hub product. From here, you can choose your preference for the connection to your smart lock, whether it will always be via Wi-Fi or Bluetooth.

  • Page 13: Device Settings

    5.3.2.a DEVICE SETTINGS AUTO LOCK: If you activate this feature, you can always ensure that your door is locked. You can disable or enable it from this menu. Additionally, you can choose between 15-30-45-60 seconds for the smart lock to fully or single-turn lock.
  • Page 14 5.3.2.a DEVICE SETTINGS INVERT LOCKING WAY: You should set locking way of the device in accordance with your door’s locking way. BUTTON MODE: You can change roles of the buttons with this menu. B0- buttons work and you are able to get inside reset or child mode. B1- buttons work but you cannot able get inside reset or child mode.
  • Page 15 5.3.3. USERS In this tab, you can manage the controllers of your smart lock, such as the automatic locking module, home automation interface, keypad, fingerprint reader, etc. If you touch any defined user, you will access a page where you can edit their name or individually delete users/controllers.
  • Page 16 To add the new controller to the smart lock, you need to send a locking or unlocking signal through it. The steps are as follows: For fingerprint reader; For keypad; For remote controller; For auto-locking module; DESi DESi wake it up and touch the wake it up and touch the press and hold any take the magnet closer to locking button.
  • Page 17 5.3.3.2. DEFINING THE USER AS MASTER You can define 2 more users as master. To do this, you should click the 'USERS' tab. Tap on the 'EDIT' icon next to the user you want to authorize. From the menu that appears, you can define the user as 'MASTER' or revert them to a normal user whenever you wish.
  • Page 18 - Copy the shared code to clipboard. (You can copy all the shared text. The app will filter the code automatically.) - Install the DESi Smart application on your mobile phone, launch the application. - Keep your mobile phone as close as possible to the door where the smart lock is installed and tap 'Use One-Time Code' (OTP Key icon).
  • Page 19 5.3.3.3.1. OTP - One Time Password Feature Activation Display Buttons - Tap with your palm to wake up the device. Then touch the "SETTINGS" button. "MASTER" will be displayed on the screen. - Show master fingerprint or enter master password. Sliding “<- ->”...
  • Page 20 Generating Time Limited Access Code To Use Via Keypad - Launch the app on the master phone and choose the smart lock that you want to generate codes. - Touch to “OTP key” icon located on upper right corner. Then touch “Via Keypad”.

  • Page 21: Important Notes

    IMPORTANT NOTES - You can generate time limited access codes while you are away. Bluetooth or internet connection is not necessary. Besides, if you want to change check-in/out times, you should connect to the smart lock via bluetooth. - “Single” usage codes can be used “1 time only”. “Multi” usage code will be valid during selected period. - You can generate both “single”...

  • Page 22: Locking The Door

    5.4. USAGE Before you use your smart lock, you should adjust it properly according to the lock which smart lock will work together. First, you should adjust “direction of locking” and then “number of rotation” (see page 12) 5.4.1. UNLOCKING AND OPENING THE DOOR Launch the app, connect to your smart lock and touch UNLOCK button.

  • Page 23: Maintenance

    5.5. MAINTENANCE You can clean external surfaces by soft, slightly damp cloth. Never use abrasive chemicals or water for this purpose. Don’t try to disassemble your smart lock. 5.5.1. CHARGING YOUR SMART LOCK If you hear three short tones after operation of the smart lock or if the rotation speed is too slow compared to normal working speed, you need to charge your smart lock.
  • Page 24 6. TROUBLESHOOTING SMART LOCK CANNOT FULLY LOCK/UNLOCK THE DOOR - There can be high friction on the lock or latch bold. It may be caused by sag of the door or unadjusted locking mechanism. Check if you can open the lock and the latch with a key easily. If there is a problem on door or lock, that need to be fixed.
  • Page 25 - If the device is not used for a long period, the rechargeable batteries may be damaged. Call your dealer and ask for service. - Check the button mode, if it is in B2 mode, you would not able to use buttons. (FW 87 and above) Please see the FAQ section for more http://en.desi.com.tr/faqutopicr.pdf...
  • Page 26 LOCK / UNLOCK BUTTONS WORKS IN WRONG DIRECTION You need to invert the locking way. Please check page 12. I FORGOT THE PASSWORD OF MOBILE APPLICATION If you forget your password, there is no chance to get it back. As a solution, you need to delete the application and reinstall it.
  • Page 27 7. HOW TO UPDATE FIRMWARE OF SMART LOCK Please follow the steps below: - Connect to the smart lock via master phone and touch to menu button. - On “Settiings” tab, touch to ‘”Software Version” line. - If a new firmware is available, the application will inform you. - Touch the Start button and follow the instructions on application.
  • Page 28 8. HOW TO RESET SMART LOCK If you want to change master controller of your smart lock or if you want to delete all controllers enrolled to the device, you can reset your smart lock as follows: - Press and hold 2 buttons on the smart lock. A long warning tone will be heard. Continue to hold the buttons. After a while, second warning tone will start.
  • Page 29 © DESi Alarm and Security Systems Inc.
