DESi utopicR User Manual

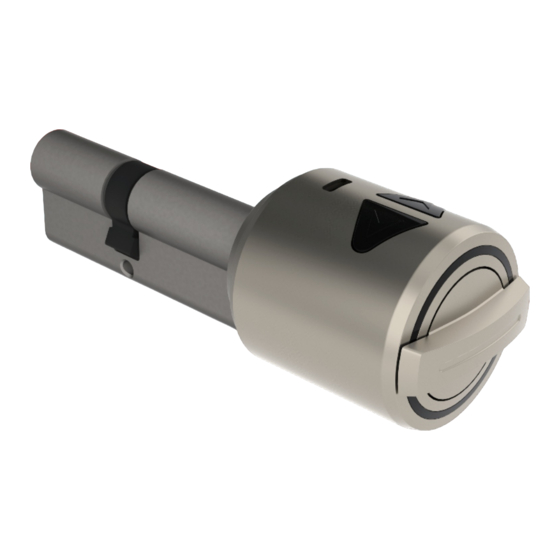

Wireless motorized cylinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Wireless Motorized Cylinder
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the utopicR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DESi utopicR

Summary of Contents for DESi utopicR

  • Page 1 Wireless Motorized Cylinder USER MANUAL...

  • Page 2: General Information And Warnings

    GENERAL INFORMATION and WARNINGS - Before using your motorized cylinder, Locking way (right or left handed door) and Number of turns should be adjusted properly. Otherwise, the device will not work in the correct way and maybe broken. - For emergency conditions, we recommend you to put the keys in an accessible place (like car, bag etc.) - If there is any problem with the door or the locking mechanism, first of all, those problems have to be solved.

  • Page 3: Features Of The Device

    Your motorized cylinder is equipped with rechargeable Lithium Ion batteries. 2. BOX CONTENT According to DESi labratory tests, with a usage of 10 operations per day on a 2 turns lock, battery life of (May vary according to model) motorized cylinder is as follows:...
  • Page 4 3. PARTS OF DEVICE and INSTALLATION 1.STEP Remove Control Cylinder Buttons existing cylinder. microUSB 2. STEP Charging Port Install motorized cylinder and Handle for tighten Manual the screw Operation...
  • Page 5 In some security doors, even if you remove cylinder screw, you cannot remove cylinder due to cramped installation of cylinder defender. Follow the instructions below, for that kind of situations: - Untighten the screws of the cylinder defender (don’t remove the screws) - Remove cylinder screw and take out the old cylinder.

  • Page 6: Mobile Application

    MOBILE APPLICATION In this section, you can find details about usage of Mobile Application If you enroll your smart phone as first controller, it will be master controller of your motorized cylinder. Before you use your motorized cylinder, you should adjust it properly according to the lock which motorized cylinder will work together.
  • Page 7 5.1. ENROLLING A MOBILE PHONE AS MASTER CONTROLLER - Search “Desi Utopic” on stores. Download, install and run the application. - Choose desired language and define a password. - Press and hold two buttons on motorized cylinder until you hear long and short warning tones, then release buttons.

  • Page 8: Application Settings

    5.2. APPLICATION SETTINGS If you touch the menu button in the top right corner when it is not connected to motorized cylinder, you will reach settings menu of application. Related menu items are as follows: PASSWORD: You can disable, enable or change the password of application. Menu LANGUAGES: You can change language of the application.

  • Page 9: Device Info Tab

    5.3. MOTORIZED CYLINDER SETTINGS / ADMINISTRATION MENU If you touch the menu button in the top right corner when the application is connected to motorized cylinder as master controller, you will reach to settings menu of connected motorized cylinder. You can change settings of your motorized cylinder and perform administrative activities via this menu.
  • Page 10 5.3.2. KNOB SETTINGS TAB Menu In this tab, there are following menu items: Button BUZZER OF KNOB: You can enable / disable activation sounds coming from motorized cylinder. DELAYED LOCKING: Your motorized cyclinder has a delayed locking feature which locks itself 5 second after you press the locking button on the motorized cylinder.
  • Page 11 ADJUST NUMBER OF TURNS: Before using your motorized cylinder, you may need to adjust your motorized cylinder according to lock’s number of rotation. For this purpose, close the door and then touch “Blue Rotating Arrow” button. Motorized cylinder will lock and then unlock the door and learn number of rotation. AUTO DISCONNECTION TIME: You can adjust (with 5 sec.

  • Page 12: Users Tab

    5.3.3. USERS TAB In this tab, you can add, edit or delete (except master) controllers including accessories like auto-locking module, home automation interface, keypad etc. EDIT / DELETE ENROLLED CONTROLLERS: If you touch the controllers title, you can see enrolled controllers of motorized cylinder.
  • Page 13 Users Tab For fingerprint reader; For keypad; For remote controller; For auto-locking module; DESi DESi wake it up and touch the wake it up and touch the press and hold any take the magnet closer to locking button.
  • Page 14 - With NEW MOBILE PHONE , search “Desi Utopic” on stores. Download, install and run the application. - Choose desired language and define a password. - Touch “+” in the top left corner to see the list of Utopic motorized cylinders around.

  • Page 15: Report Tab

    DELETE ALL REMOTE CONTROLLERS If you want to delete all the controllers of motorized cylinder, touch “Delete All Controllers”. The master controller cannot be deleted by using this menu item. 5.3.4. REPORT TAB Menu In this tab, you can see which user unlocked or locked the device with Button time and date information.

  • Page 16: Locking The Door

    5.4. USAGE Before you use your motorized cylinder, you should adjust it properly according to the lock which motorized cylinder will work together. First, you should adjust “direction of locking” and then “number of rotation” (see page 10 and 11) 5.4.1.

  • Page 17: Maintenance

    5.5. MAINTENANCE You can clean external surfaces by soft, slightly damp cloth. Never use abrasive chemicals or water for this purpose. Don’t try to disassemble your motorized cylinder. 5.5.1. CHARGING YOUR MOTORIZED CYLINDER If you hear three short tones after operation of the motorized cylinder or if the rotation speed is too slow compared to normal working speed, you need to charge your motorized cylinder.
  • Page 18 Display WIRELESS FINGERPRINT DESi READER Button #1 - Lock In this section, you can find details about installation and - Enter Shown Item usage of Wireless Fingerprint Reader. - Confirm Selection Before using your motorized cylinder, first, you should adjust “locking way”...
  • Page 19 Unscrew back plate screw at the bottom of reader and separate pack plate from device. After that, follow the steps below: 1st Step 2nd Step Place back plate to Place the device and DESi the desired location tighten back plate and fix it with 2 screw.
  • Page 20 - Put the same finger again till you see “OK” and remove. . “L1" will be displayed. - Put the same finger again till you see “OK”. After this step, your finger will be enrolled as first master. Schematic representation of operation is as follows: DESi OK LEARN...
  • Page 21 6.3. SETTINGS / ADMINISTRATION MENU You can change settings of your motorized cylinder and perform administrative activities via this menu. Before using your smart cylinder, “number of turns” and “locking way” settings should be adjusted properly. Otherwise, it will damage the device’s mechanical structure or your lock.
  • Page 22 - Put the same finger again till you see “OK” and remove. . “L1" will be displayed. - Put the same finger again till you see “OK”. In this way, the new finperprint will be enrolled to the device. Schematic representation of operation is as follows: DESi ADMIN OK LEARN NOTE 1: System assigns an id to fingers and this id is shown when finger is read.
  • Page 23 - “OK” will be shown. In this way, the related finperprint will be deleted. Schematic representation of deleting a fingerprint (e.g. id is “07") is as follows: DESi ADMIN DELETE NOTE 1: System assigns an id to fingers and this id is shown when finger is read. By mistake, if you pass the id of fingerprint you want to delete, wait a few seconds till display goes off and restart the procedure.
  • Page 24 - Touch “Button #2" till you see “17" and touch “Button #1". - “OK” will be shown. In this way, all the finperprints (including masters) will be deleted. Schematic representation of operation is as follows: DESi ADMIN RESET NOTE: If you pass “17" by mistake, don’t touch any button and wait a few seconds till display goes off. After that restart the...
  • Page 25 - Touch “Button #2" till “TURN” appears and touch “Button #1" when “TURN” is on display. ”OK" will be shown and cylinder will automatically lock and unlock the door. In this way, motorized cylinder will learn how many rotations is needed to lock / unlock the door. Schematic representation of operation is as follows: DESi ADMIN TURN...
  • Page 26 - When desired way is displayed, touch “Button #1". “OK” will be displayed. In this way, motorized cylinder’s direction of locking will be set. Schematic representation of changing direction of locking from right to left is as follows: DESi ADMIN MOTOR...
  • Page 27 - Touch “Button #2" till “USER” appears and touch “Button #1" when “USER” is on display. In this way, number of enrolled fingerprints will be displayed. Schematic representation of this operation (which shows 8 fingerprints enrolled to reader) is as follows: DESi ADMIN USER...
  • Page 28 “ON” - buzzer is enabled. - When desired choice is displayed, touch “Button #1". “OK” will be displayed. In this way, desired buzzer choice will be set. Schematic representation of disabling buzzer sound is as follows: DESi ADMIN SOUND NOTE: To transfer settings to motorized cylinder, you need to lock or unlock motorized cylinder via master controller.
  • Page 29 “ON” - auto-locking is enabled. - When desired choice is displayed, touch “Button #1". “OK” will be displayed. In this way, desired auto-locking choice will be set. Schematic representation of enabling auto-locking is as follows: DESi ADMIN NIGHT NOTE: To transfer settings to motorized cylinder, you need to lock or unlock motorized cylinder via master controller.
  • Page 30 “ON” - delayed locking is enabled. - When desired choice is displayed, touch “Button #1". “OK” will be displayed. In this way, desired delayed locking choice will be set. Schematic representation of enabling delayed locking is as follows: DESi ADMIN MANUAL...
  • Page 31 - Touch the “Button #2" till “R.LEARN” appears and touch “Button #1" when “R.LEARN” is on display. - “OK” will be displayed. The motorized cylinder will shift to enrolling new controller mode with a long and a short warning tone. Schematic representation of operation is as follows: DESi Just after the short warning tone; ADMIN R.LEARN...
  • Page 32 ENROLLING A NEW (USER) MOBILE PHONE - With the phone that you want to enroll to your motorized cylinder, search “Desi Utopic” on stores. Download, install and run the application. - Choose desired language and define a password. - Shift the motorized cylinder to enrolling mode as explained previous page and touch “+” in the top left corner to see the list of Utopic motorized cylinders around.
  • Page 33 - “OK” will be shown. In this way, motorized cylinder will delete all enrolled controllers of motorized cylinder with a long warning tone. Schematic representation of operation is as follows: DESi ADMIN R.DELETE NOTE: This operation doesn’t delete master controller from motorized cylinder’s memory. If you want to delete master...
  • Page 34 - Touch “Button #2" till “R.COUNT” appears and touch “Button #1" when “R.COUNT” is on display. - “OK” will be displayed. In this way, motorized cylinder will start to report number of enrolled controllers via short warning tones. Schematic representation of operation is as follows: DESi ADMIN R.COUNT...
  • Page 35 - When desired choice is displayed, touch “Button #1". “OK” will be displayed. In this way, latch retraction period of motorized cylinder will be adjusted. Schematic representation of adjusting latch retraction period to 3 seconds is as follows: DESi ADMIN HOLD.TM...

  • Page 36: Locking The Door

    6.4. USAGE Before using your motorized cylinder, you should adjust “locking way” and “number of rotation” according to lock which will be used with motorized cylinder. 6.4.1. UNLOCKING AND OPENING THE DOOR Touch to device with your palm to wake it up and put an enrolled finger onto sensor. Fingerprint id will be displayed and motorized cylinder will unlock and open the door.

  • Page 37: Maintenance

    6.5. MAINTENANCE You can clean external surfaces by soft, slightly damp cloth. Never use abrasive chemicals or water for this purpose. Don’t try to disassemble your motorized cylinder. 6.5.1. CHARGING YOUR MOTORIZED CYLINDER If you hear three short tones after operation of the motorized cylinder or if the rotation speed is too slow compared to normal working speed, you need to charge your motorized cylinders.
  • Page 38 - Unscrew back plate screw. Hold fingerprint reader from bottom part, pull and lift up to detach it from back plate. DESi - Replace the battery with new one. Watch the polarities! - Attach fingerprint reader to back plate and tighten the screw.

  • Page 40: Wireless Keypad

    If you want to change the master controller of motorized cylinder, check “HOW TO RESET MOTORIZED CYLINDER” topic on the last page. DESi Locking Button To use all available features of your device, we recommend you to use a smartphone as master controller.
  • Page 41 Unscrew back plate screw at the bottom of keypad and seperate pack plate from device. After that, follow the steps below: 1st Step 2nd Step Place back plate to Place the device and the desired location tighten back plate and fix it with 2 screw. screws. DESi...

  • Page 42: Enter New Password

    - Touch “1" button and enter the new master password in 5 digit. - After display animation, re-enter the new master password. In this way, the master password will be changed. Schematic representation of this operation is as follows: DESi ENTER NEW RE-ENTER...

  • Page 43: Enter Master Password

    - Touch “2" button and enter the new user password in 5 digit. After display animation, re-enter the new user password. In this way, the user password will be defined / changed. Schematic representation of this operation is as follows: DESi ENTER...
  • Page 44 - Enter 5 digit master password. After display animation, touch “6” button. - The motorized cylinder will shift to enrolling new controller mode with a long and a short warning tone. Schematic representation of operation is as follows: DESi 12345 Just after the short warning tone;...
  • Page 45 ENROLLING A NEW (USER) MOBILE PHONE - With the phone that you want to enroll to your motorized cylinder, search “Desi Utopic” on stores. Download, install and run the application. - Choose desired language and define a password. - Shift the motorized cylinder to enrolling mode as explained previous page and touch “+” in the top left corner to see the list of Utopic motorized cylinders around.
  • Page 46 - Enter 5 digit master password. After display animation, touch “7” button. “d” will be displayed. - To confirm, touch lock button. In this way, motorized cylinder will delete all enrolled controllers of motorized cylinder with a long warning tone. Schematic representation of operation is as follows: DESi 12345...
  • Page 47 In this way, motorized cylinder’s direction of locking will be set. Schematic representation of changing direction of locking from right to left is as follows: DESi 12345 NOTE: To transfer settings to motorized cylinder, you need to lock or unlock motorized cylinder via master controller.
  • Page 48 - Enter 5 digit master password. After display animation, touch “2” button. - Motorized cylinder will automatically lock and unlock the door. In this way, motorized cylinder will learn how many rotations is needed to lock / unlock the door. Schematic representation of operation is as follows: DESi 12345...
  • Page 49 - Wake the keypad up by putting your palm to the touch keys and then touch “M” button. “A” appears on the display. - Enter 5 digit master password. After display animation, touch “8” button. In this way, motorized cylinder will start to report number of enrolled controllers via short warning tones. Schematic representation of operation is as follows: DESi 12345...
  • Page 50 “C” - buzzer is disabled. - When desired way is displayed, touch “M" button. After first locking or unlocking operation done by keypad, selected settings will be applied to the system. Schematic representation of operation is as follows: DESi 12345...

  • Page 51: Delayed Locking

    “C” - Delayed Locking is disabled. - When desired way is displayed, touch “M" button. After first locking or unlocking operation done by keypad, selected settings will be applied to the system. Schematic representation of operation is as follows: DESi 12345...

  • Page 52: Automatic Locking

    “C” - Automatic Locking is disabled. - When desired way is displayed, touch “M" button. After first locking or unlocking operation done by keypad, selected settings will be applied to the system. Schematic representation of operation is as follows: DESi 12345...
  • Page 53 - When desired choice is displayed, touch “M" button. After first locking or unlocking operation done by keypad, selected settings will be applied to the system. Schematic representation of adjusting latch retraction period to 3 seconds is as follows:rized cylinder via master controller. DESi 12345...
  • Page 54 7.4. USAGE Before using your motorized cylinder, you should adjust “locking way” and “number of rotation” according to lock which will be used with motorized cylinder. 7.4.1. UNLOCKING AND OPENING THE DOOR Touch to device with your palm to wake it up and enter the password. Motorized cylinder will unlock and open the door. You can also unlock and open the door via button on motorized cylinder.
  • Page 55 7.5. MAINTENANCE You can clean external surfaces by soft, slightly damp cloth. Never use abrasive chemicals or water for this purpose. Don’t try to disassemble your motorized cylinder. 7.5.1. CHARGING YOUR MOTORIZED CYLINDER If you hear three short tones after operation of the motorized cylinder or if the rotation speed is too slow compared to normal working speed, you need to charge your motorized cylinders.
  • Page 56 - Unscrew back plate screw. Hold keypad from bottom part, pull and lift up to detach it from back plate. - Replace the battery with new one. Watch the polarities! - Attach keypad to back plate and tighten the screw. DESi Back Plate Screw...

  • Page 58: Remote Controllers

    Master RC Display REMOTE CONTROLLERS Full-Turn Locking Button In admin menu; Shift to next menu item or Confirm In this section, you can find details about usage of Master and User Remote Controllers. Unlock and Open Button In the admin menu; Shift to previous menu item Before using your motorized cylinder, first, you should adjust “locking way”...
  • Page 59 Just after the short warning tone; 5s B p For fingerprint reader; For keypad; For remote controller; For auto-locking module; DESi DESi wake it up and touch the wake it up and touch the press and hold any take the magnet closer to locking button.
  • Page 60 ENROLLING A NEW (USER) MOBILE PHONE - With the phone that you want to enroll to your motorized cylinder, search “Desi Utopic” on stores. Download, install and run the application. - Choose desired language and define a password. - Shift the motorized cylinder to enrolling mode as explained previous page and touch “+” ın the top left corner to see the list of Utopic motorized cylinders around.
  • Page 61 8.1.2. DELETE ALL ENROLLED CONTROLLERS - Press 3rd button till “0" flashes on the display. - Press 2nd button three times. “7" will be flashing on the display. Press 3rd button. “d” will be shown. - Press 1st button. The motorized cylinder will give a long (10 sec) and two short warning tone In this way, all the controllers (except the master rc) will be deleted from the device.
  • Page 62 8.1.3. ADJUSTING DIRECTION OF LOCKING ACCORDING TO DOOR’S OPENING WAY - Press 3rd button till “0" flashes on the display. - Press 1st button one time. “1" will be flashing on the display. - Press 3rd button. Either “r” or “L” will be shown on the display. - For counter-clockwise locking, choose “L”...
  • Page 63 8.1.4. ADJUSTING MOTORIZED CYLINDER ACCORDING TO LOCK’S NUMBER OF ROTATION TO LOCK/UNLOCK - Close the door and press 3rd button till “0" flashes on the display. - Press 1st button two times. “2" will be flashing on the display. - Press 3rd button. “o” will be shown on the display. - Press 1st button.
  • Page 64 8.1.5. REPORTING NUMBER OF CONTROLLERS IN THE MEMORY - Press 3rd button till “0" flashes on the display. - Press 2nd button two times. “8" will be flashing on the display. - Press 3rd button. “C” will be shown on the display. - Press 1st button.
  • Page 65 8.1.6. ADJUSTING BUZZER SOUND - Press 3rd button till “0" flashes on the display. - Press 1st button three times. “3" will be flashing on the display. - Press 3rd button. Either “O” or “C” will be shown on the display. - For disabling buzzer sound, choose “C”...
  • Page 66 8.1.7. DELAYED LOCKING Your motorized cyclinder has a delayed locking feature which locks itself 5 second after you press the locking button on the motorized cylinder. If this feature is enabled, when you are going out, if you touch locking button on motorized cylinder and close the door in 5 seconds, it will lock the door automatically. On this menu item, you can enable / disable this feature.
  • Page 67 8.1.8. AUTOMATIC LOCKING Your device has an automatic locking feature which locks itself 1 minute after it is unlocked. On this menu item, you can enable / disable this feature. - Press 3rd button till “0" flashes on the display. - Press 2nd button five times.
  • Page 68 8.1.9. ADJUSTING LATCH RETRACTION PERIOD (FOR SOME MODELS ONLY) According to type of your lock and usage, you would need to adjust the time period which the motorized cylinder will keep latch of the lock inside when it unlocks the lock. To adjust latch retraction period, follows the steps below: - Press 3rd button till “0"...
  • Page 69 8.2. USAGE Before using your motorized cylinder, you should adjust “locking way” and “number of rotation” according to lock which will be used with motorized cylinder. 8.2.1. UNLOCKING AND OPENING THE DOOR Press 2nd button. Motorized cylinder will unlock and open the door. You can also unlock and open the door via button on motorized cylinder.
  • Page 70 8.3. MAINTENANCE You can clean external surfaces by soft, slightly damp cloth. Never use abrasive chemicals or water for this purpose. Don’t try to disassemble your motorized cylinder. 8.3.1. CHARGING YOUR MOTORIZED CYLINDER If you hear three short tones after operation of the motorized cylinder or if the rotation speed is too slow compared to normal working speed, you need to charge your motorized cylinders.
  • Page 71 8.3.2. REPLACING REMOTE CONTROLLER’S BATTERY If the controlling range of rc is getting shorter, battery of rc need to be changed. User and master rc are using 3V 2032 type lithium battery. To change the battery; - Untighten screws and open the cover carefully. - Change the battery by watching polarities.
  • Page 72 9. TROUBLESHOOTING IF THE MOTORIZED CYLINDER CANNOT FULLY LOCK/UNLOCK THE DOOR There can be high friction on the lock or latch bold. It may be caused by sag of the door or unadjusted locking mechanism. Check if you can open the lock and latch with a key easily. If there is a problem on door or lock, that need to be fixed. Batteries of motorized cylinder may be weak.
  • Page 73 10. HOW TO RESET MOTORIZED CYLINDER If you want to change master controller of your motorized cylinder or if you want to delete all controllers enrolled to the device, you can reset your motorized cylinder as follows: - Press and hold 2 buttons on the motorized knob. A long warning tone will be heard. Continue to hold the buttons. After a while, second warning tone will start.
