DESi Utopic R OK User Manual

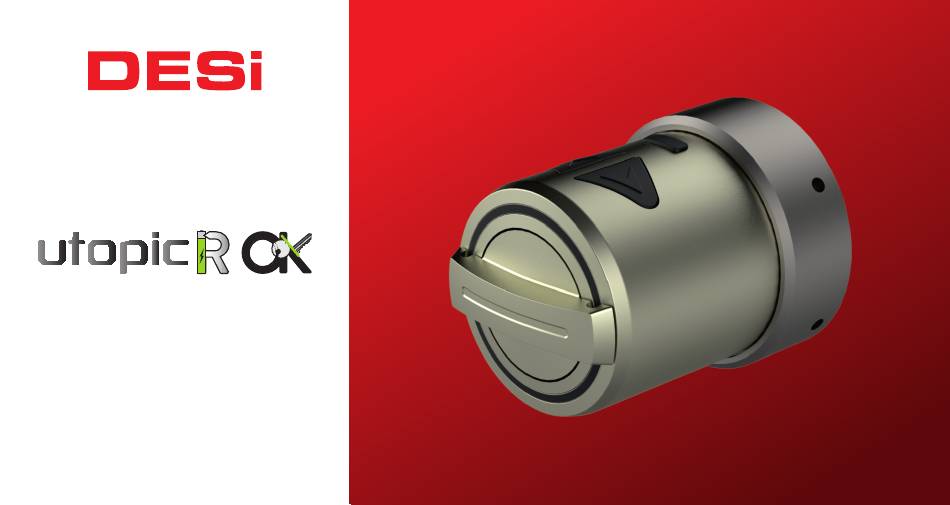

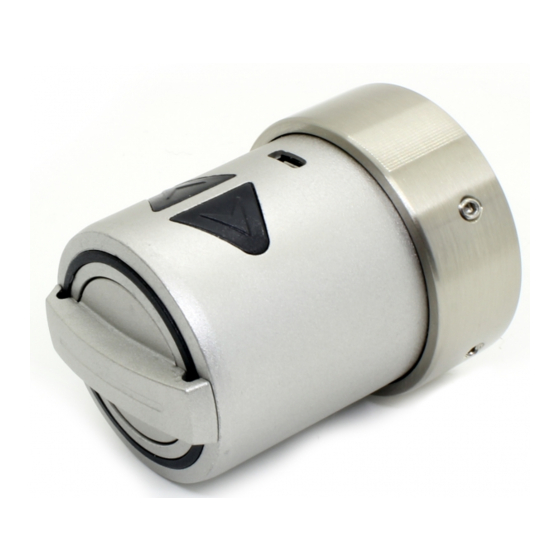

Wireless motorized cylinder
Hide thumbs Also See for Utopic R OK:
Table of Contents

Advertisement

Quick Links

Download this manual
Wireless Motorized Cylinder
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Utopic R OK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DESi Utopic R OK

Summary of Contents for DESi Utopic R OK

  • Page 1 Wireless Motorized Cylinder USER MANUAL...

  • Page 2: General Information And Warnings

    GENERAL INFORMATION and WARNINGS - Before using your motorized cylinder, Locking way (right or left handed door) and Number of turns should be adjusted properly. Otherwise, the device will not work in the correct way and maybe broken. - For emergency conditions, we recommend you to put the keys in an accessible place (like car, bag etc.) - If there is any problem with the door or the locking mechanism, first of all, those problems have to be solved.

  • Page 3: Features Of The Device

    Remote Access Module Your motorized knob is equipped with rechargeable Lithium Ion batteries. According to DESi labratory tests, with a usage of 10 operations per day on a 2 turns lock, battery life of motorized cylinder is as follows: 2. BOX CONTENT...
  • Page 4 3. PARTS OF DEVICE and INSTALLATION (TYPE A) Charging Port Control Buttons (microUSB) Min. 2 mm Fixing Screws (4 pcs) Handle for The existing Manual Fixing Screws Slot for (4 pcs) cylinder should Operation The Modified Key come out, at least 2 mm to be caught by motorized knob Type A.
  • Page 5 - Take out the key and saw o the head of the key fom marked line. You may need some tools like vice, hacksaw etc. Use a rasp to smooth the edges. DESi accepts no liability for damages. - Insert modified key to cylinder and verify that it is cut in a proper way.
  • Page 6 4. PARTS OF DEVICE and INSTALLATION (TYPE B) Charging Port Control Buttons (microUSB) Gripping Screws Min. (2 pcs) 4 mm Fixing Screws Handle for (2 pcs) Manual Operation The Slot for Modified Key The existing cylinder should come out, at least MODIFIED KEY 4 mm to be caught by motorized knob...
  • Page 7 - Take out the key and saw o the head of the key fom marked line. You may need some tools like vice, hacksaw etc. Use a rasp to smooth the edges. DESi accepts no liability for damages. - Insert modified key to cylinder and verify that it is cut in a proper way.
  • Page 8 All the requested permissions need to be given without any restriction. Otherwise, the app may not work properly. - Search “Desi Utopic” on application stores. Download, install and run the application. - Choose desired language and define a password or skip it.
  • Page 9 DETAILS OF MOBILE APPLICATION The first controller enrolled to motorized cylinder is accepted as the master controller. The rest of the controllers will be user controllers. Both, master and user controllers can be used to lock/unlock the motorized cylinder. Besides, only the master controller can change settings of motorized cylinder. Before using your motorized cylinder, you should adjust it properly by setting “locking way”...

  • Page 10: Application Settings

    5.2. APPLICATION SETTINGS If you touch the menu button in the top right corner when it is not connected to motorized cylinder, you will reach settings menu of application. Related menu items are as follows: PASSWORD: You can disable, enable or change the password of application. Menu LANGUAGES: You can change language of the application.

  • Page 11: Device Info Tab

    5.3. MOTORIZED CYLINDER SETTINGS / ADMINISTRATION MENU If you touch the menu button in the top right corner when the application is connected to motorized cylinder as master controller, you will reach to settings menu of connected motorized cylinder. You can change settings of your motorized cylinder and perform administrative activities via this menu.
  • Page 12 5.3.2. KNOB SETTINGS TAB Menu In this tab, you can change following settings: Button DELAYED LOCKING: If this feature is enabled, the device will lock the door 10 seconds after the locking button on the device is pressed. When you are going out, if you press the locking button on the device and than close the door, it will automatically lock your door in 10 seconds.

  • Page 13: Advanced Settings Page

    5.3.2.a. ADVANCED SETTINGS PAGE BUZZER OF KNOB: You can enable / disable activation sounds coming from motorized cylinder. LATCH RETRACTION PERIOD: You can adjust the time period which the device keeps latch of the lock inside when it unlocks the door. You can use the slider to adjust it in 4 different modes; 1 sec (the latch will be retracted around 1 second), 3 sec (the latch will be retracted around 3 seconds), 6 sec (the latch will be retracted around 6 seconds) and 0 sec (this mode is for locks without latch.

  • Page 14: Users Tab

    5.3.3. USERS TAB In this tab, you can manage controllers of motorized cylinder including auto-locking module, home automation interface, keypad, fingerprint reader etc. If you touch “Controllers” line, you can edit enrolled controllers. If you touch any user, you reach dedicated controller page which you can edit name or delete the controller one by one. You can enroll new controller if you touch Menu “Enroll New Controller”...
  • Page 15 For fingerprint reader; For keypad; For remote controller; For auto-locking module; DESi DESi wake it up and touch the wake it up and touch the press and hold any take the magnet closer to locking button.
  • Page 16 NOTE: For Android phones, all the requested permissions need to be given without any restriction during installation of app. NEW MOBILE PHONE, search “Desi Utopic” on application stores. Download, install and run the application. - With - Choose desired language and define a password or skip it.
  • Page 17 5.3.3.3. GENERATING ONE TIME/LIMITED TIME ACCESS CODE VIA MASTER PHONE If you are the master user of motorized cylinder, you can let anybody unlock the door via application or wireless keypad, even if you are far away. Internet connection is not needed for this function to work. 5.3.3.3.a.
  • Page 18 - Touch “LOCK" button to toggle between; Display “O” - Time Limited Access Mode is Enabled, “C” - Time Limited Access Mode is Disabled. Touch Buttons - When desired mode is displayed, touch Menu Button to confirm. DESi Menu Button 12345 Lock Button...
  • Page 19 After enabling Time Limited Access Mode on keypad, follow the steps below to enroll it to the motorized cylinder: - Launch the app on the master phone and connect to the motorized cylinder. - Touch to “Settings” icon located on upper right corner and go to “Users” tab. - Touch to “Enroll New Controller”...
  • Page 20 From: You can choose beginning date of the period which the generated password will be valid. To: You can choose ending date of the period which the generated password will be valid. After choosing desired settings, touch to “Create One Time Code” line. - A pop-up will appear which shows 8 digit password.

  • Page 21: Important Notes

    IMPORTANT NOTES - You can generate time limited access codes while you are away. Bluetooth or internet connection is not necessary. Besides, if you want to change check-in/out times, you should connect to the motorized cylinde via bluetooth. - “Single” usage codes can be used “1 time only”. “Multi” usage code will be valid during selected period. - You can generate both “single”...

  • Page 22: Locking The Door

    5.4. USAGE Before you use your motorized cylinder, you should adjust it properly according to the lock which motorized cylinder will work together. First, you should adjust “direction of locking” and then “number of rotation” (see page 12) 5.4.1. UNLOCKING AND OPENING THE DOOR Launch the app, connect to your motorized cylinder and touch UNLOCK button.

  • Page 23: Maintenance

    5.5. MAINTENANCE You can clean external surfaces by soft, slightly damp cloth. Never use abrasive chemicals or water for this purpose. Don’t try to disassemble your motorized cylinder. 5.5.1. CHARGING YOUR MOTORIZED CYLINDER If you hear three short tones after operation of the motorized cylinder or if the rotation speed is too slow compared to normal working speed, you need to charge your motorized cylinder.
  • Page 24 6. TROUBLESHOOTING THE MOTORIZED KNOB CANNOT FULLY LOCK/UNLOCK THE DOOR - There can be high friction on the lock or latch bold. It may be caused by sag of the door or unadjusted locking mechanism. Check if you can open the lock and the latch with a key easily. If there is a problem on door or lock, that need to be fixed. - Batteries of motorized cylinder may be weak.
  • Page 25 I CANNOT ENROLL MY PHONE AS THE MASTER CONTROLLER There would be a controller which is already enrolled to motorized knob. If you want to change the master controller, first you need to reset the motorized knob (check last page) and then enroll your mobile phone (check page 8.) If you reset the motorized cylinder, all the controllers including auto-locking module, keypad, fingerprint reader etc.
  • Page 26 LOCK / UNLOCK BUTTONS WORKS IN WRONG DIRECTION You need to invert the locking way. Please check page 12. I FORGOT THE PASSWORD OF MOBILE APPLICATION If you forget your password, there is no chance to get it back. As a solution, you need to delete the application and reinstall it.
  • Page 27 7. HOW TO UPDATE FIRMWARE OF MOTORIZED KNOB Menu Please follow the steps below: Button - Connect to the motorized knob via master phone and touch to menu button. - On “Device Info” tab, touch to ‘”Software Version” line. - If a new firmware is available, the application will inform you. - Touch the Start button and follow the instructions on application.
  • Page 28 8. HOW TO RESET MOTORIZED KNOB If you want to change master controller of your motorized knob or if you want to delete all controllers enrolled to the device, you can reset your motorized knob as follows: - Press and hold 2 buttons on the motorized knob. A long warning tone will be heard. Continue to hold the buttons. After a while, second warning tone will start.
  • Page 29 NOTES...
  • Page 30 © DESi Alarm and Security Systems Inc.
