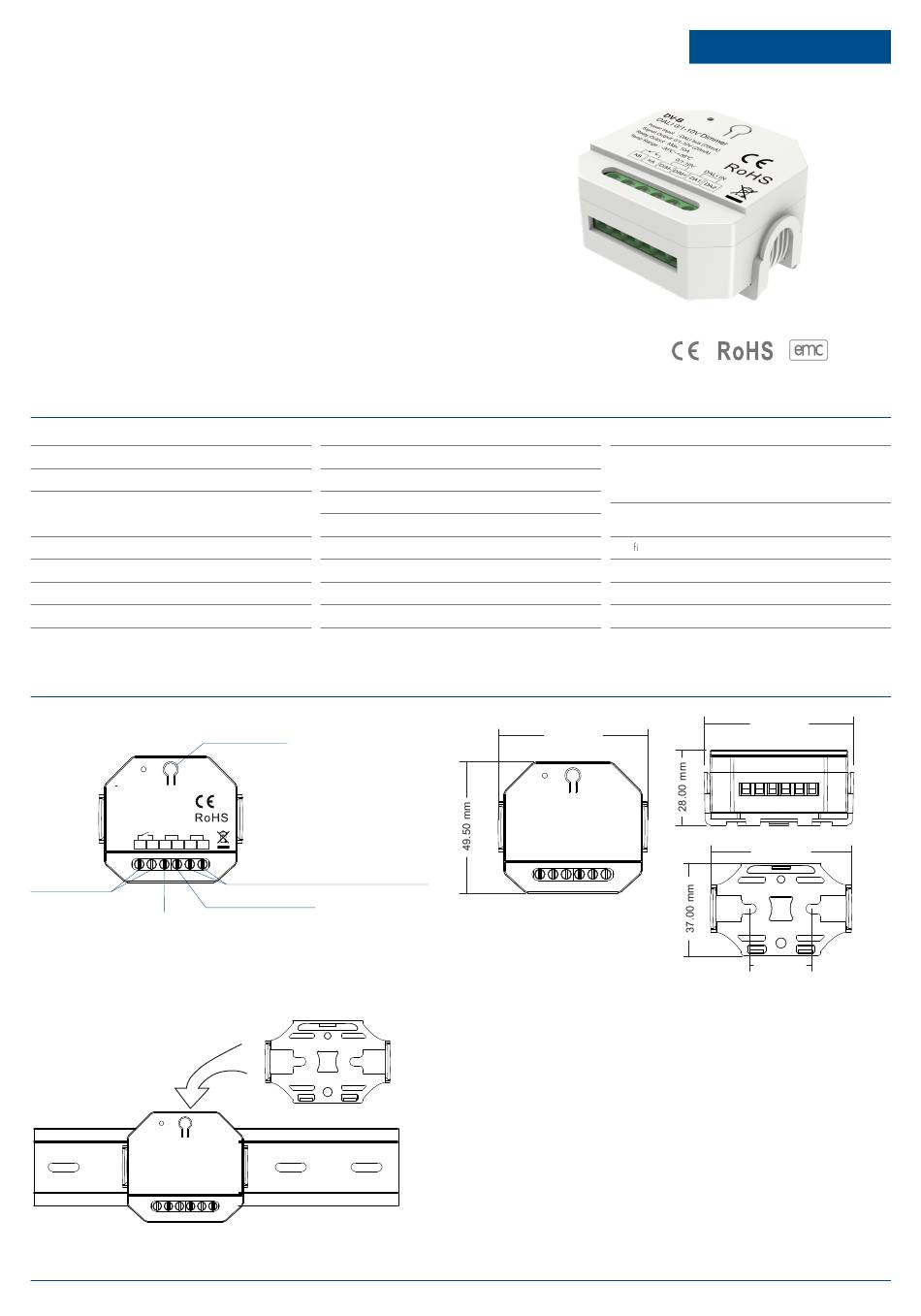

SKYDANCE DV-B User Manual

DV-B
DALI 0/1-10V Dimmer
● 1 DALI address, 1 channel 0/1-10V output.
● Powered by DALI bus.
● 10A dry contact mains rated relay output.
● 0-10V or 1-10V output selectable.
● In accordance with DALI standard protocol IEC 62386-101, IEC 62386-102,
IEC 62386-206 and in compliance with DALI products from other international incorporation.
● Compliant DALI device type 5.
Technical Parameters
Input and Output
DALI bus
Power input
Output signal 0/1-10V, 20mA
10A

resistive
load
Max relay load current 8A incandescent
5A
inductive load
Working current
Max. 70mA@16V
10mA@16V
Static current
Warranty
5 years
Warranty
Mechanical
Structures
and
Installations
DV-B
DALI 0/1-10V Dimmer
Power Input : DALI bus (70mA)
Signal Output: 0/1-10V (20mA)
Relay Output : Max. 10A
Temp Range : -30℃~+55℃
0/1-10V DALI IN
KB KA DIM- DIM+ DA1 DA2
Dry contact output
0-10V signal output -
Installation way
User Manual Ver 1.0.0
2024.4
Dimming data
Dimming range
Dimming curve
Environment
Operation temperature
Case temperature (Max.)
IP rating
Set key
DALI signal and power input,
no need distinguish plus-minus polarity
0-10V signal output +
Installation clip
0 -100%
Linear(default)

O O
Ta: -30 C ~ +55 C
O
Tc: +60 C
IP20
56.00 mm
Note:
1. DO NOT install with power applied to device.
2. The installation must be installed or removed by a professional electrician.
3. Please keep the device out of the reach of children.
4. Please keep away from water, humid or hot environment.
DALI+0/1-10V
Safety and EMC
EN IEC 55015:2019+A11:2020
EN 61547:2009
EMC standard (EMC)
EN IEC 61000-3-2:2019+A11:2021
EN 61000-3-3:2013+A11:2019
EN 61347-1:2015+A1:2021
Safety standard (LVD)
EN 61347-2-13:2014+A1:2017
Certi cation
CE,EMC,LVD
Package
Size
W60
x L
60 x H40mm
Gross weight
0.061kg
56.00 mm
56.00 mm
25.00 mm
LVD
