Summary of Contents for Cassida B-5520U

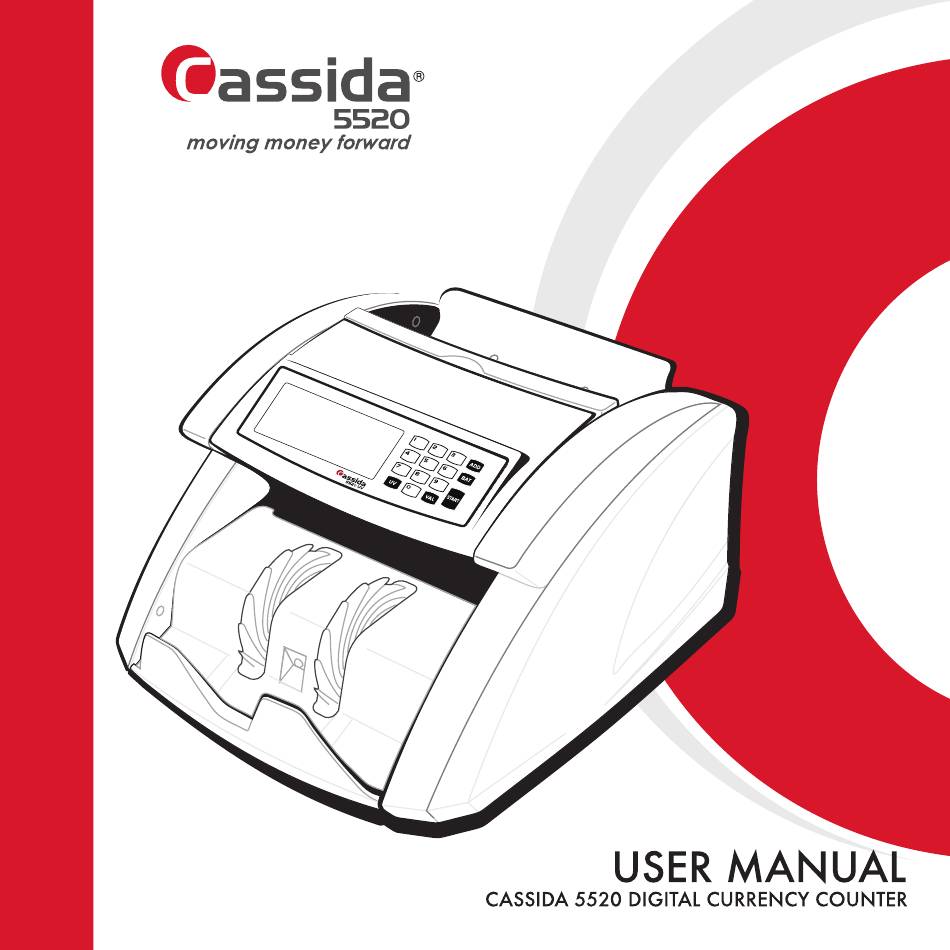

- Page 3 This manual contains important information on safety measures and operational features, please read it carefully before operating your currency counter and keep it for future reference. Cassida 5520 Digital Currency Counter...
-
Page 4: Table Of Contents
3.5 ValuCount mode _______________________________________________________13 3.6 ValuCount and add mode ______________________________________________13 4. Detection Features 4.1 UV Counterfeit detection ________________________________________________14 4.2 MG Counterfeit detection (Cassida UV/MG model only) __________________14 4.3 Double note detection __________________________________________________15 4.4 Half note detection _____________________________________________________15 4.5 Chain note detection ___________________________________________________16 5. -
Page 5: Introduction
1200 notes per minute. The Cassida 5520 series will also enable you to add up totals and batch necessary amounts into separate stacks. All these features come together with a built-in counterfeit detection system which uses ultraviolet “UV”... - Page 7 3. Feeding gap adjustment screw - adjusts for different bill thicknesses (narrow for brand new bills - wide for worn out bills) Note: Please do not adjust unless the machine displays recurrent DBL or Chn error messages. 4. Power outlet & fuse - to connect the power cord Cassida 5520 Digital Currency Counter...
-
Page 8: Control Panel
1.4 Control panel Cassida 5520 UV Cassida 5520 UV/MG “ADD/BAT” to switch between adding, batching and simple counting modes Keypad Used to enter custom batch quantity “UV” or “UV/MG” Activate counterfeit detection. “START” Starts operation (Hold to switch to manual mode) “VAL”... -
Page 9: Important Safety Notes
• Unplug this product from the wall outlet before cleaning. Use a damp cloth Duster or Cassida CleanBill Pro Cleaning Cards. • To avoid the risk of electrical shock, do not disassemble this unit. Disassembling will expose you to dangerous voltages and other safety risks. -
Page 10: Getting Started
• Only use the power cord supplied with the unit. Plug the power cord into a properly grounded wall outlet. Do not remove the ground pin from the power • in areas with high temperature, humidity or smoke as these conditions may prevent it proper operation. -
Page 11: Carrying The Unit
To count additional bills, add more bills to the hopper. Be sure not to accumulate more than the stacker can hold as this will cause jamming and may lead to a motor failure. Cassida 5520 Digital Currency Counter... -
Page 12: Batching Mode
3.2 Batch mode To switch to batching mode press the BAT button until the BATCH indicator is on. If you would like to change the batch amount, use the numeric keypad to enter the desired amount. The unit will start counting automatically once bills are placed in the hopper. As soon as the unit counts the desired batch number it will stop and emit a When the stacker is emptied, the unit will automatically begin counting to the preset batch number again. -
Page 13: Add + Batch Mode
Press the VAL button until the desired denomination is displayed on screen. The denomination may be changed at any time by pressing the VAL button. The machine will now start calculating the value using the new denomination. Cassida 5520 Digital Currency Counter... -
Page 14: Detection Features
DETECTION FEATURES 4.1 UV Counterfeit detection The Cassida 5520 is able to check for counterfeit bills using ultraviolet (UV) light. This function is available in all modes. Press the UV or UV/MG button until the UV indicator appears on the LCD screen. -
Page 15: Double Note Detection
4.4 Half note detection The Cassida 5520 incorporates infrared (IR) light sensors that notify users if a half note passes through the counting mechanism. This feature is activated automatically in all modes for your convenience. -
Page 16: Chain Note Detection
To get the best results out of your counter the following maintenance is recommended on a daily basis: Use a Cassida air duster and a soft bristle brush to remove any dust or debris from the interior of the unit. -
Page 17: Troubleshooting
Refer to section 4.5 for more details. at the same time Sensors may have col- Clean the sensors with a soft bristle brush and lected dust. compressed air. Refer to section 5.1. Cassida 5520 Digital Currency Counter... -
Page 18: Warranty
In other countries, go to www.CassidaGlobal.com/registers In most cases, the malfunction of the machine can be resolved by cleaning the unit. Please refer to section 5.1 for guidelines. IMPORTANT: You must register your Cassida product to activate the warranty. Register at www. CassidaUSA.com/warranty-registration ®... -
Page 19: Contact Information
Shipping: The warranty does not cover the cost of shipping to Cassida’s Technical Service Center. 5.4 Contact Information All Cassida products are backed by a one-year warranty on parts and labor. Registration is required. Please visit www.CassidaUSA.com/support for warranty details and access to online registration. - Page 20 Cassida Corporation - North America Printed in China ©2019 Cassida Corporation. All rights reserved. FN 5520UM REV 0319...
