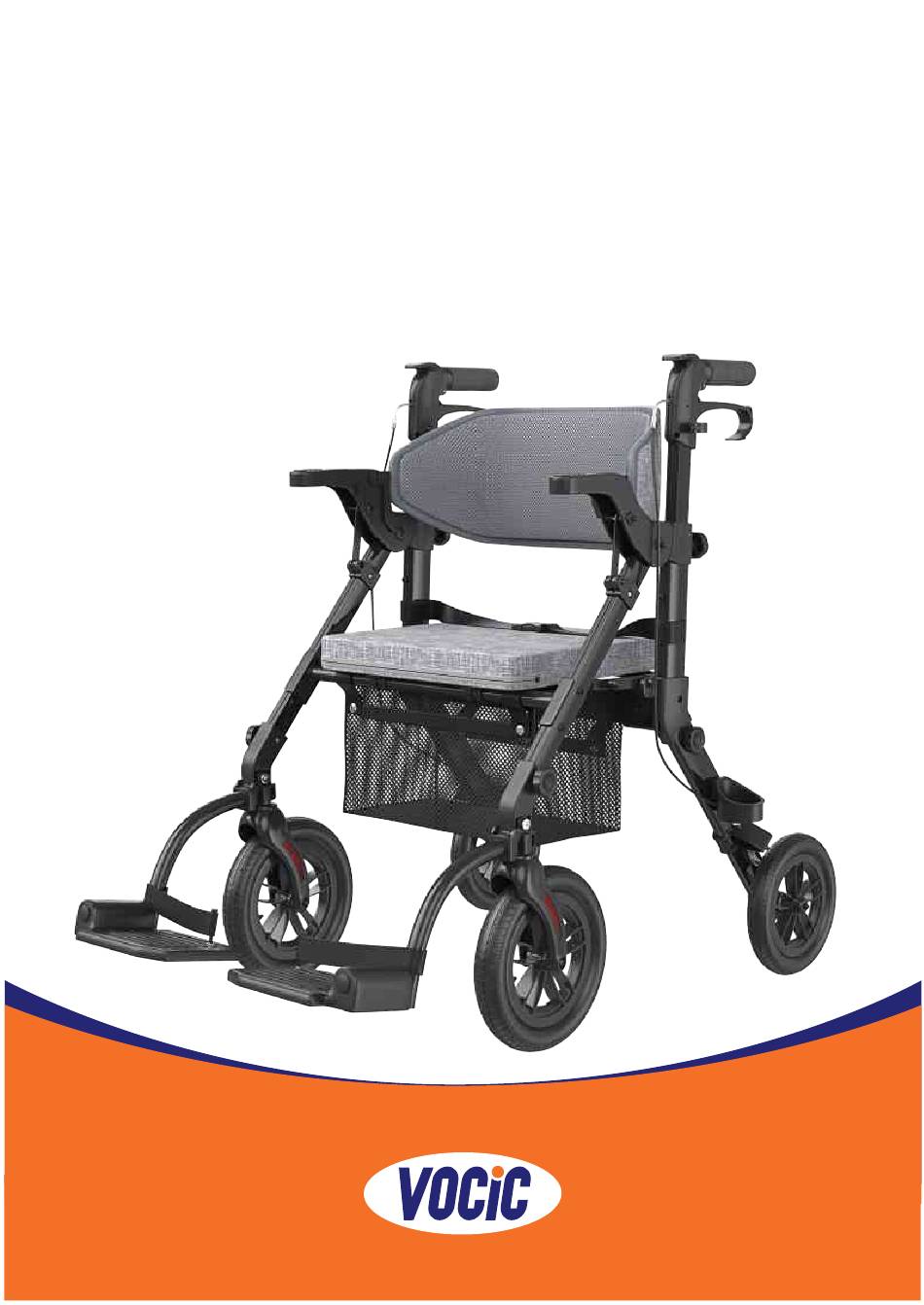

- Page 1 2 in 1 Rollator Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Table of Contents I.Safety Instruction II.Product Information III.Product Overview IV.Assembly Instruction V.Operation Instruction VI.After-sales Service... -
Page 3: I.safety Instruction
Your Family Rehabilitation Partner I.Safety Instruction Safety Precautions Before Use Make sure the rollator is completely unfolded and locked into position. Check that the rollator is fully intact each time before using it. Check that the brake is working. Check that the backrest is fixed properly. Use only on even and solid surfaces, never on an inclined or uneven ground. -
Page 4: Ii.product Information
Z51 2 in 1 Rollator Purpose The VOCIC Rollator was developed for indoor and outdoor use. It serves as a mobility aid with four wheels for people with walking difficulties. The user should have the necessary physical, visual and cognitive abilities to operate the rollator safely. -
Page 5: Iii.product Overview
Your Family Rehabilitation Partner Technical Data Rear wheels Width (open) 25.8＂ 8＂ x 1.4＂ (diameter x width) Material of Material of frame Aluminum handles Material of tyres Material of seat Fabric+Sponges lf you have any questions,please contact us: support@vocic.com. III. Product Overview... - Page 6 4. Sit-to-Stand handle 8. Front wheel Inspection on Delivery Check the contents for completeness and make sure nothing is damaged. Should you find any irregularities or damage, please contact our customer service (support@vocic.com). Video Guide Scan to watch installation video...
- Page 7 Your Family Rehabilitation Partner IV. Assembly Instructions...
-
Page 8: V.operation Instruction
V.Operation Instruction Folding �. �. Lift the seat of the rollator. Pull up the black metal brace inside the basket to fold the rolla- tor. Height Adjustment Loosen the knob screw(5) and adjust the handle to the appropriate height. Repeat for the other side, and Retighten the knob screw(5). - Page 9 Your Family Rehabilitation Partner Brake System To apply the handbrake pull the To engage the parking brake, press brake lever up. the brake lever down until it locks in place. 3.Brake Adjustment To adjust the brake force, first apply pressure to the brake pedal, then rotate the adjust- ment knob either clockwise or counterclockwise.
- Page 10 Detachable Footrest The footrest can be easily installed The footrest can be placed under or removed by positioning it at an the frame as pictured. angle of 60-75 degrees relative to the corresponding gap. 60-75° Adjustable Backrest Removable Cane Holder To attach the cane holder in the provided position, slide the cane holder onto the frame from above.
-
Page 11: Vi.after-Sales Service
Warranty Once you purchase with VOCIC, you are covered by an 1-year warranty and lifetime after-sales service. Our 24/7 after-sales service is always available to answer any questions you may have during installation and use. - Page 12 Your Family Rehabilitation Partner @VOCiCMedical @VOCiCMedical @VOCiCMedical @VOCiCMedical lf you have any questions,please contact us: support@vocic.com...
