- Page 1 Bath Lift USER MANUAL （ AX07） JC35M3-1 service-us@vocic.vip...
-
Page 2: Table Of Contents
Catalog 1. Introduction 2. Items before use 2.1 Operation before use 2.2 Prohibition 3. Matters needing attention 4. Installation and usage 5. Maintenance 6. Appendix 6.1 Technical specifications 6.2 Troubleshooting 6.3 Warranty and disclaimer 6.4 Approved certificates and EMC terms... -
Page 3: Introduction

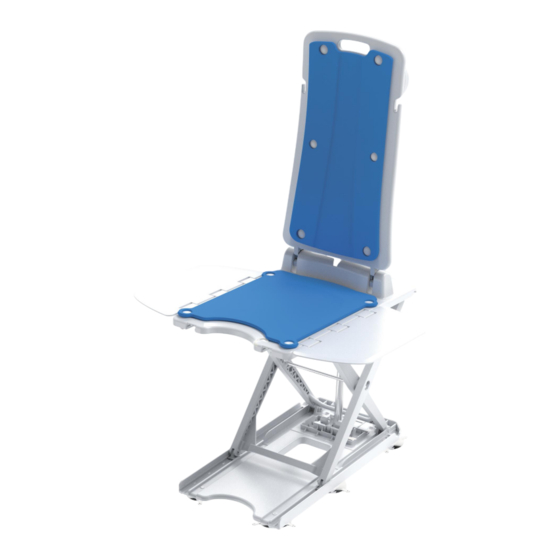

JC35M3-1 bath lifter fully considers the specifications of the common bathtub, so that it can be easily positioned in any standard bathtub (some non-standard or specially customized bathtubs may not be suitable). JC35M3-1 bath lifter is equipped with 6 suction cups at the bottom, which makes its positioning more stable and has a good anti-slip effect. -
Page 4: Items Before Use
2. Items before use 2.1 Operation before use (1) Before your first use, please read the instructions carefully, which will make you more familiar with the bath lifter, and its operation will also become simpler and more controllable; (2) Please keep this instruction for anyone who may touch or use the bath lifter (3) First, evaluate the user to ensure that it is suitable. -
Page 5: Matters Needing Attention
3. Matters needing attention (1) Please use the matching charger to charge; (2) The optimal capacity of the battery may be reached after a few charging cycle; (3) When charging, keep away from water, heat, etc.; (4) The hand control comes standard with three-color indicator lights. In normal use, the green light indicates that the power is sufficient, the blue light indicates that the power is insufficient, and reminds to charge. -
Page 6: Installation And Usage
Charging process (1) Disconnect the hand control from the bath lift. (2) Ensure that the connection parts and the charger are sufficiently dry. (3) Plugging the female plug of the hand control into the male plug of the charger. (4) Plug the charger into a suitable outlet. Charging voltage range: 100-240VAC. (5) When charging is finished, please disconnect the charge in time to avoid affecting the battery life. - Page 7 ③ Complete the installation of the backrest and the base. ④ Make sure the top clevis of the actuator is connected correctly with the base hook lock. CORRECT √ WRONG × (3) Please check whether the 6 suction cups at the bottom of the seat have loosened during transportation or movement. If there is looseness, tighten the suction cups.
- Page 8 Hand control ① Upper triangle button: Up button - controls the rise of the bath chair ② Lower triangular button: Down button - controls the descent of the bath chair ③ Round button: Emergency stop button - control the bath chair emergency stop, and no longer descend, if you need to descend need to first press the up button and then press the down piece to descend ④...
- Page 9 Storage (1) The user leaves the bath and waits for the water to drain from the bath before lowering the bath chair to its lowest point and folding up the back of the chair; (2) Before picking up the bath lift, make the suction cups inflate by lifting the armrests. Balance the pressure difference between suction cups and atmospheric pressure to lift the bath lift easily;...
-
Page 10: Maintenance
Symbol explanation Symbol Description Warn BF type application section CE certificate symbol You can't put it in the bin, it has to be professionally recycled Indoor use IP68 Dustproof class 6, waterproof class 8 Category II equipment 5. Maintenance (1) After the bath is finished, please rinse the bath lift with warm water. If the bath lift is dirty, you can clean it with a cloth, brush, etc. -
Page 11: Appendix
6. Appendix 6.1 Technical Specifications Operating temperature 5-40℃ Operating humidity Under 30℃ 20%-90% Operating air pressure 700-1060 hPa Operating altitude ≤2000m Storage temperature -10-50℃ Storage humidity 20%-90% Storage air pressure 700-1060 hPa Charging voltage 100-240V 50/60Hz max0.8A Battery pack 14.8V 2.2Ah Specified load 1400N Lowest point height... -
Page 12: Troubleshooting
140° Minimum expanded state Suitable with bath lift handset Typical speed Min. Speed 200 400 600 800 1000 1200 1400 Load (N) 6.2 Troubleshooting (1) The whole bath lift will not lift without load. It may be the actuator worm gear pulling teeth. Listen to the sound. If the motor rotates but cannot rise or fall, it can indicate that the actuator worm wheel pulls teeth;... -
Page 13: Approved Certificates And Emc Terms
(10) Private repair and modification of the bathing chair equipment (hand control, charger, chair frame, chair seat, etc.). (11) Found there is some damage of the elements or device but still keeping use the products which cause the second damage to the products, even get user injured. (12) The use of accessories other than those in the package, such as the private use of adapters, mismatched chargers, other hand controls, etc. - Page 14 Electromagnetic radiation The shower chair is designed to be used in the electromagnetic environment specified in the table below. The user or users of the shower chair should ensure that it is used in such an environment. Guidelines and manufacturer's statements ---- electromagnetic emissions Shower chair with its use in the following provisions of the electromagnetic environment, the purchaser or user should ensure that it is used in this electromagnetic environment Launch test...
- Page 15 Net power should have Electrical fast transient ±2KV to power cord ±2KV to power cord qualities which is pulse group ±1KV to power line ±1KV to power line typically used in a IEC61000-4-4 commercial or hospital environment Net power should have Surge ±1KV line-to-line ±1KV line-to-line...
- Page 16 distanced=1.2 P d=1.2 P 80MHz-800MHz d=2.3 P 800MHz-2.GHz In the equation: P----The maximum transmitter output power rating in watts (W) provided by the transmitter manufacturer, d----Recommended isolation distance in meters (m) The field strength of the fixed RF transmitter, determined by a survey of the electromagnetic field house, should be lower than the compliance level in each frequency range...
- Page 17 Your Home Rehabilitation Partner...
Need help?
Do you have a question about the JC35M3-1 and is the answer not in the manual?
Questions and answers
how do you use this to help someone up from the floor?
To use the VOCiC JC35M3-1 to help someone up from the floor:
1. Ensure the hand control is plugged into the back of the lift.
2. Place the lift on the floor with the person sitting on it.
3. Use the upper triangle button on the remote to raise the seat.
4. The seat height can adjust from 2.3" to 19" to help the person reach a standing position or transfer to a chair.
5. Ensure stability, as the lift has no sides. A second person may assist if needed.
