VOCIC Rollator
Instruction Manual
Z21
support@vocic.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z21 and is the answer not in the manual?

Questions and answers

sally abrams
May 30, 2025

how to adjust seat height

Steve Adams
May 7, 2025

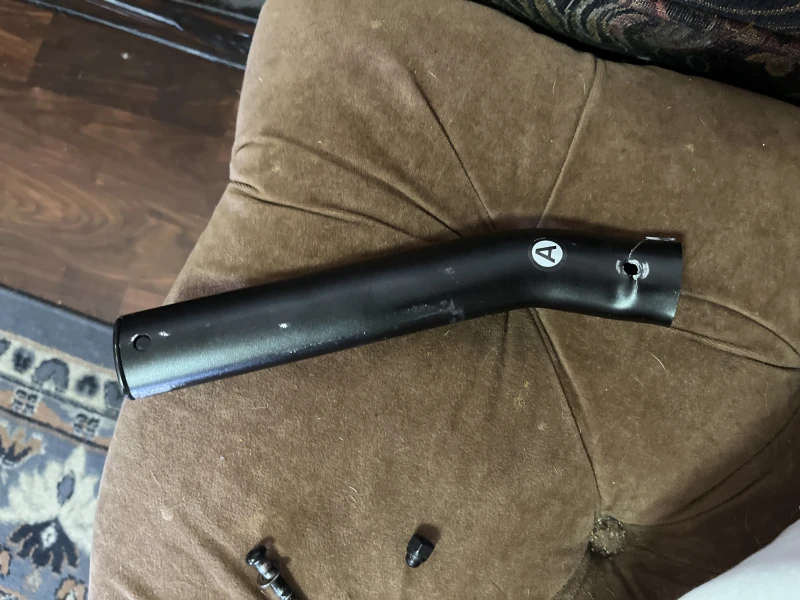

I need a part for vocic rollator model V—RL-Z21-A-OG I need part number or know if I can order from you

User image 681be08e13d5a

Summary of Contents for VOCiC Z21

  • Page 1 VOCIC Rollator Instruction Manual support@vocic.com...
  • Page 2: Table Of Contents

    CONTENTS Table of Contents I.Safety Instruction II.Product Information III.Product Overview IV.Assembly Instruction V.Operation Instruction VI.After-sales Service...
  • Page 3: I.safety Instruction

    The net bag may be loaded with a maximum of 22lbs and do not overload it. Do not exceed the maximum user weight: 330lbs WARNING Keep the plastic packaging materials away from children due to the risk of suffocation. lf you have any questions,please contact us: support@vocic.com...
  • Page 4: Ii.product Information

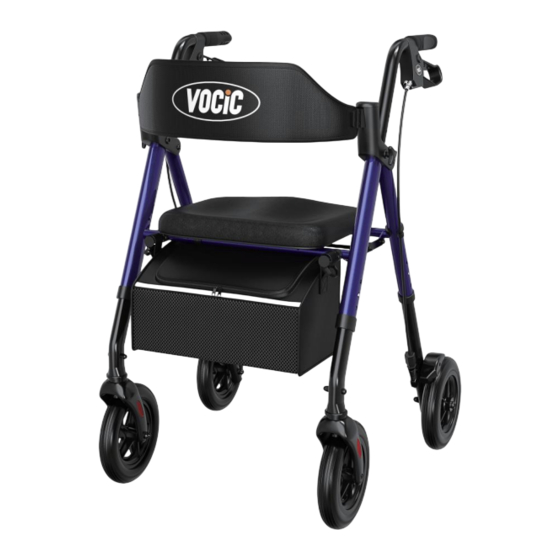

    Rollator Purpose The VOCIC Rollator was developed for indoor and outdoor use. It serves as a mo- bility aid with four wheels for people with walking difficulties. The user should have the necessary physical, visual and cognitive abilities to operate the rollator safely.
  • Page 5: Iii.product Overview

    10. Rear wheel axel 15. Snap for brake cable 16. Brake shoe Inspection on Delivery Check the contents for completeness and make sure nothing is dam- please contact our aged. Should you find any irregularities or damage, customer service (support@vocic.com).
  • Page 6: Iv.assembly Instruction

    IV.Assembly Instruction Step1: Unpacking Remove the parts from the box and peel off the wheel protective film. Step2: Installing Front Wheel A Front Wheel A corresponds to Frame A. Ensure all A labels are on the same side.
  • Page 7 Your Family Rehabilitation Partner Step3: Installing Front Wheel B Front Wheel B corresponds to Frame B. Ensure all B labels are on the same side. Maintain consistent height for front wheel. Ensure spring buttons are properly secured. Step4: Installing Rear Wheel A Rear Wheel A corresponds to Front Wheel A and Frame A.
  • Page 8 Step5: Installing Rear Wheel B Rear Wheel B corresponds to Frame B. Ensure all B labels are on the same side. Front and rear wheel installation complete as the following picture.
  • Page 9 Your Family Rehabilitation Partner Step6: Installing Handles Unscrew Knob Insert the handle into The handle must be screws(5). the frame. Ensure the installed in the correct handle and the con- direction as shown in nected rear wheel are the picture 02. installed on the same side Adjust the handle...
  • Page 10 Handles and backrest installation complete as the following picture. Step9: Installing Storage Bag Use the woven belt loops, not the plastic part, to attach to the walker. Reflective strip should face outward. lf you have any questions,please contact us: support@vocic.com...
  • Page 11: V.operation Instruction

    V.Operation Instruction Folding Lift the seat of the rollator. Pull up the black metal brace inside the basket to fold the rollator. Adjusting the handle height (31.5"-36.6") Loosen the knob screw(5) and adjust the handle to the appropri- ate height. Repeat for the other side, and Retighten the knob screw(5).
  • Page 12 Your Family Rehabilitation Partner Adjusting the seat height (20"-22") Press the spring button (7) on the frame of the rollator and adjust the seat to the appropriate height. Repeat this for all wheel axles. Make sure all push buttons are engaged.
  • Page 13 Brake Adiustment Tighter Looser Use one hand to press the button Turn the button clockwise to increase downward. braking force; Turn the buttonclock- wise to decrease braking force. Sitting The Rollator gives support when walking. If you want to take a break, you can sit on it.
  • Page 14: Vi.after-Sales Service

    Warranty Once you purchase with VOCIC, you are covered by an 1-year war- ranty and lifetime after-sales service. Our 24/7 after-sales service is always available to answer any questions you may have during installation and use.
