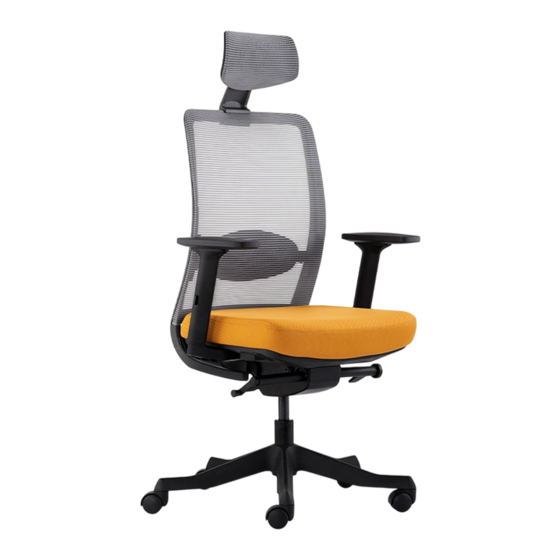

Merryfair ANGGUN 1199 YP A78 V Assembly Instruction

Assembly
Instruction
1
X3
X8
M8 X 30mm
M6 X 25mm
2
X8
M6 X 25mm
3
4
Only applicable for 1199 model.
X2
User
Instructions
Seat Height Adjustable
ANGGUN
A
Flip up lever on right-side to raise or lower seat. Adjust such that your feet
are adequately supported on floor.
Models
Multi-Position Tilt Lock
B
1199 YP A78 V
Recline to desired position, and turn the round knob anti-clockwise to lock.
Turn the knob clockwise to release tilt-lock.
1198 YP A78 V
Seat Angle Lock
C
1199 YP A80 V Flip up lever on left-side for forward seat tilt and this cater for intensive
upright sitting tasks. Flip down lever for normal seat angle.
1198 YP A80 V
Lumbar Height Adjustment
D
Slide the lumbar support up or down for desired lumbar position.
Armrest Height
E
Press the button and raise or lower the armrest. Adjust height to adequately
support elbows to take strain off shoulders.
Armpad Angle
F
Grasp armpads and rotate them inwards or outwards to adjust elbow support
to suite specific tasks. An inward position works during keyboard use, while
an outward position is recommended during mousing.
Armrest Depth
G
Grasp armpads and push them forwards and backwards to suite your arm
support.
Seat Depth Adjustment
H
Pull the lever under the right-side of the seat to adjust fore and aft position.
Tilt Tensio
I
Pull out the knob at the right side, turn knob clockwise to provide a stronger
tilt tension, and vise versa. Adjust such that minimum effort is required to
push back when recline.
Headrest Height
J
J
Adjust height by holding both sides of headrest and pull up or down to your
desired height.
F
F
D
E
B
C
A
n Control
(Only applicable for 1199 model)
G
H
I
