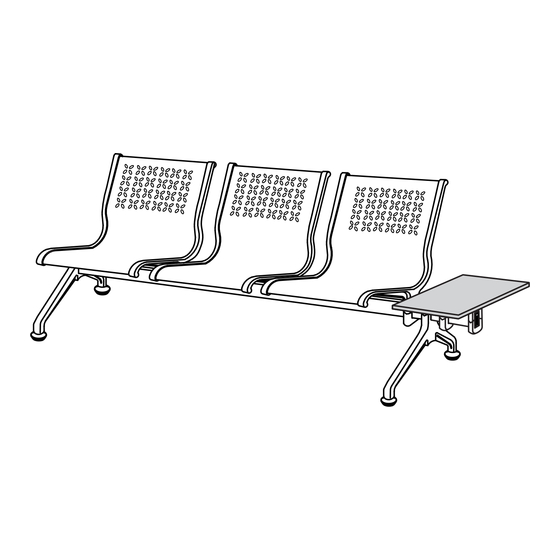

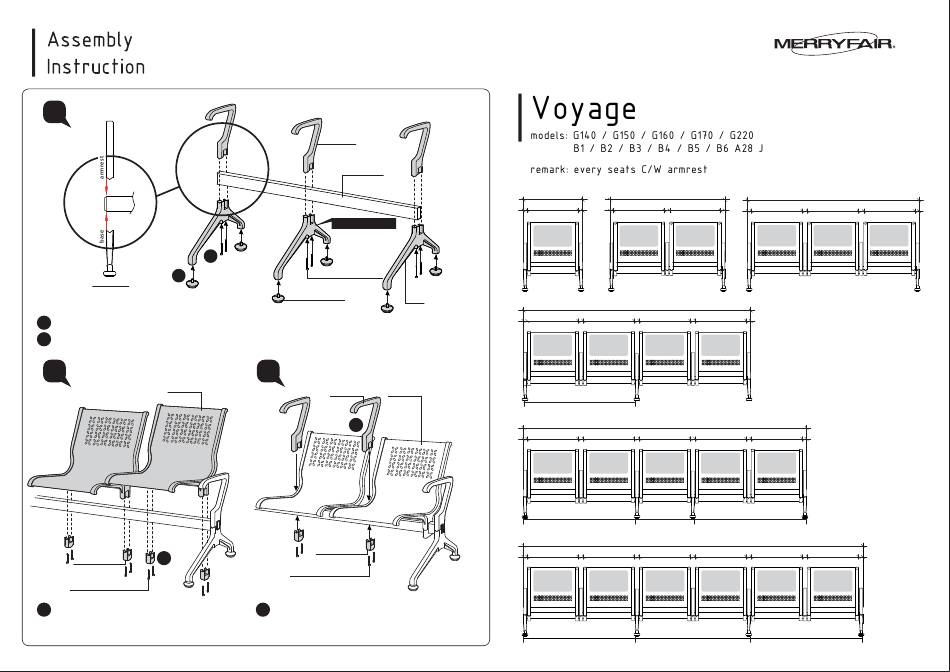

1
seater beam
B
A
Diagram "A"
Front View
A
Insert adjustable glider into base.
B
Slot base and armrest into the seater beam and tighten with M10 X 100 allen cap screw.
2
seat shell
C
u-bracket lower
M10 x 70 allen cap screw
C
Slot seat shell and u-bracket lower into
seater beam (following measurement given)
and tighten with M10 X 70 allen cap screw.
armrest
seater beam
for 4 / 5 / 6 / seater
M10 x 100 allen cap screw
adjustable glider
base
3
armrest
seat shell
D
u-bracket lower
M10 x 70 allen cap screw
D
Slot armrest and u-barcket lower into the seater beam
(adjust the armrest so that it is at the center of 2 seat
shell) and tighten with M10 X 70 allen cap screw.
1 seater = 688mm
2 seater = 1283mm
64
560
64
49
65
4 seater = 2473mm
42
50
49
50
1220
5 seater = 3068mm
42
46
46
46
1214
640
6 seater = 3663mm
44
43
43
43
1212
1239
3 seater = 1878mm
49
43
56
56
42
46
42
1214
43
43
44
1212
43
