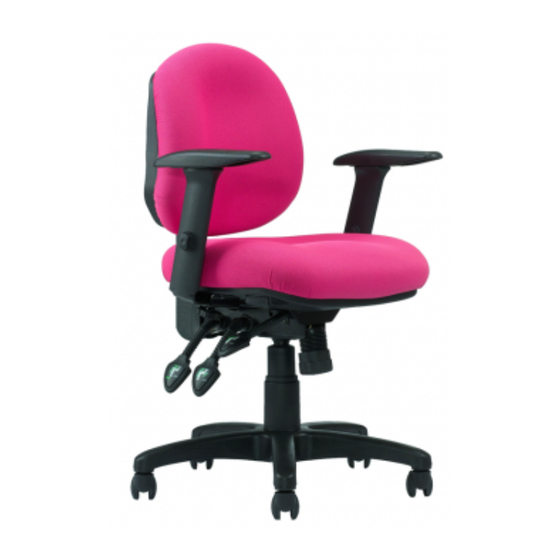

Merryfair Saga+ 978 TG A78 M2 Assembly Instruction

Assembly
Instruction
1
2
3
4
x4
5
x8
M6x30mm
6
User
Instructions
+
SAGA
Seat Height Adjustable
A
Flip up lever on right-side to raise or lower seat. Adjust such that your feet Flip up lever on right-side to raise or lower seat. Adjust such that your feet
are adequately supported on floor. are adequately supported on floor.
Models
Backrest Angle
B
978 TG A78 M2 Pull up lever to unlock backrest. Recline to desired angle, and release
lever to lock.
977 TG A78 M2
Seat Angle
C
978 TG A69 M2
Pull up lever to unlock seat. Recline to desired angle, and release lever to
977 TG A69 M2
lock.
Tilt tension Control
978 TG A4S M2
D
Turn bottom knob clockwise to provide a stronger tilt tension, and vice-versa.
977 TG A4S M2
Adjust such that minimum effort is required to push back when recline.
Armpad Angle
E
Grasp armpads and rotate them inwards or outwards to adjust elbow
support to suite specific tasks. An inward position works during keyboard
use, while an outward position is recommended during mousing.
Armpad Depth
F
Grasp armpads and push them forwards and backwards to suite your arm
support.
Armrest Height
G
Press the button and raise or lower the armrest. Adjust height to adequately
support elbows to take strain off shoulders.
Seat Depth Adjustment
H
Pull the lever under the right-side of the seat to adjust fore or aft position.
Backrest Height
I
Hold backrest by both sides and pull up to desired height. To lower backrest,
pull it to maximum height and then, return to lowest height to start again.
Adjust height so that the backrest curvature follows the curve of your back.
I
E F
A
F
G
H
B C
D
