C
C
M10 x 70 allen cap screw
base
B
A
adjustable glider
A

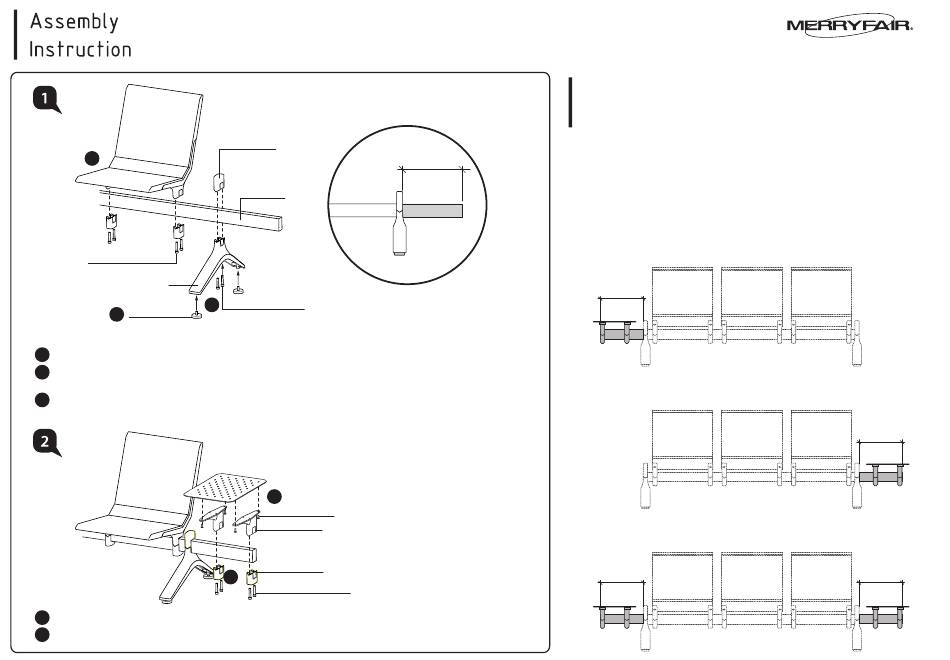

Insert adjustable glider into base.
B
Slot u-bracket upper (or armrest) & base into seater beam (following measurement given)
and tighten with M10 x 55 allen cap screw.
C
Slot seat pad & u-bracket lower into seater beam (following measurement given) and tighten with M10 x 70 allen cap screw.
D
Fix table supporter to side table with M6 x 12 JCBC screw.
E
Slot side table + table supporter and u-bracket lower into side table beam and tighten with M10 x 70 allen cap screw.
u-bracket upper
u-bracket upper
seater beam
base
M10 x 55 allen cap screw
D
M6 x 12 JCBC screw
table supporter
u-bracket lower
E
M10 x 70 allen cap screw
Flite
Models: 557 B1 / B2 / B3 / B4 / B6 A00 J with TS4 SIDE TABLE
313mm
seater beam
313mm
313mm
313mm
313mm
