Summary of Contents for Merryfair Esie 361 NA A15 B

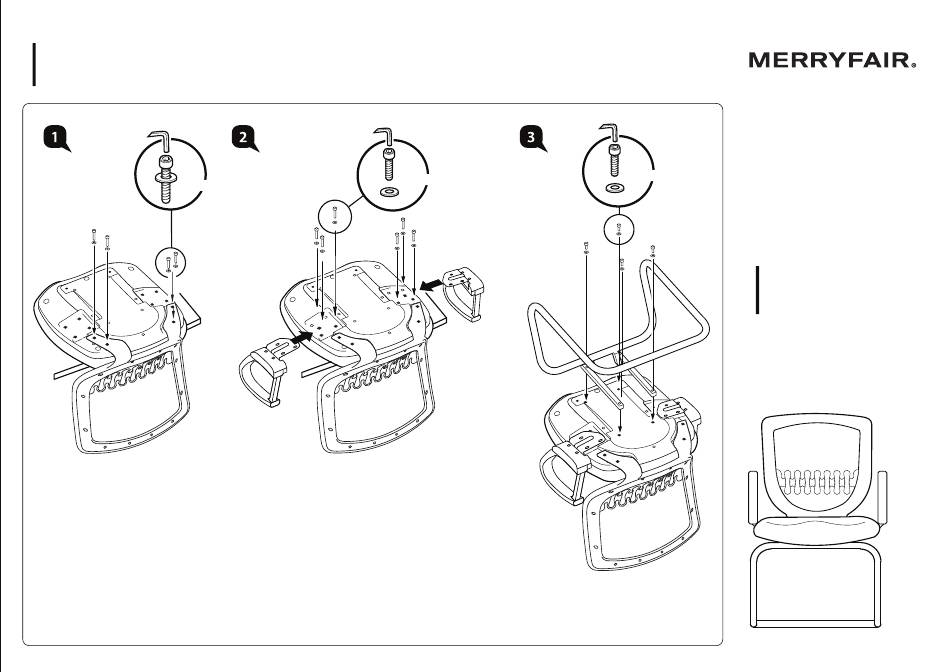

- Page 1 Assembly Instruction M6x25mm M6x25mm M6x45mm Esie Model : 361 NA A15 B...
- Page 2 Assembly Instruction M6x25mm M6x25mm M6x45mm Esie Model : 361 NA A4S B...
-
Page 3: Armrest Height
Esie User Instruction Model : 361 NA A4S B Armrest Height Press the button and raise or lower the armrest. Adjust height to adequately support elbows to take strain off shoulders. Armpad Depth Grasp armpads and push them forwards and backwards to suite your arm support. - Page 4 Assembly Instruction M6x25mm M6x25mm M6x25mm Esie Model : 367 KT A4S N3 M6x45mm...
- Page 5 Esie User Instruction Model : 367 KT A4S N3 Seat Height Adjustable Flip up lever to raise or lower seat. Adjust such that your feet are adequately supported on floor. Multi-Position Tilt Lock Recline to desired position, and flip down lever on left-side to lock. Flip up lever to release the tilt-lock.
- Page 6 Assembly Instruction M6x25mm M6x25mm Esie Model : 367 KT A05 N3 M6x40mm M6x35mm M6x45mm...
- Page 7 Esie User Instruction Model : 367 KT A05 N3 Seat Height Adjustable Flip up lever to raise or lower seat. Adjust such that your feet are adequately supported on floor. Multi-Position Tilt Lock Recline to desired position, and flip down lever on left-side to lock. Flip up lever to release the tilt-lock.
- Page 8 Assembly Instruction M6x25mm M6x25mm M6x25mm Esie Model : 367 KT A15 N3 M6x45mm...
- Page 9 Esie User Instruction Model : 367 KT A15 N3 Seat Height Adjustable Flip up lever to raise or lower seat. Adjust such that your feet are adequately supported on floor. Multi-Position Tilt Lock Recline to desired position, and flip down lever on left-side to lock. Flip up lever to release the tilt-lock.
- Page 10 Assembly Instruction M6x25mm M6x25mm M6x25mm M6x35mm M6x35mm Esie Model : 367 SH A4S N3 M6x45mm...
- Page 11 Esie User Instruction Model : 367 SH A4S N3 Seat Height Adjustable Flip up lever to raise or lower seat. Adjust such that your feet are adequately supported on floor. Tilt Lock Only 2 locking positions for this model. At upright position or recline to the maximum and push in lever to lock.
- Page 12 Assembly Instruction M6x25mm M6x25mm M6x35mm M6x35mm Esie Model : 367 SH A05 N3 M6x40mm M6x35mm M6x45mm...
- Page 13 Esie User Instruction Model : 367 SH A05 N3 Seat Height Adjustable Flip up lever to raise or lower seat. Adjust such that your feet are adequately supported on floor. Tilt Lock Only 2 locking positions for this model. At upright position or recline to the maximum and push in lever to lock.
- Page 14 Assembly Instruction M6x25mm M6x25mm M6x25mm M6x35mm M6x35mm Esie Model : 367 SH A15 N3 M6x45mm...
- Page 15 Esie User Instruction Model : 367 SH A15 N3 Seat Height Adjustable Flip up lever to raise or lower seat. Adjust such that your feet are adequately supported on floor. Tilt Lock Only 2 locking positions for this model. At upright position or recline to the maximum and push in lever to lock.
- Page 16 Assembly Instruction M6x25mm M6x45mm Esie Model : 361 NA A05 B M6x40mm M6x35mm...
