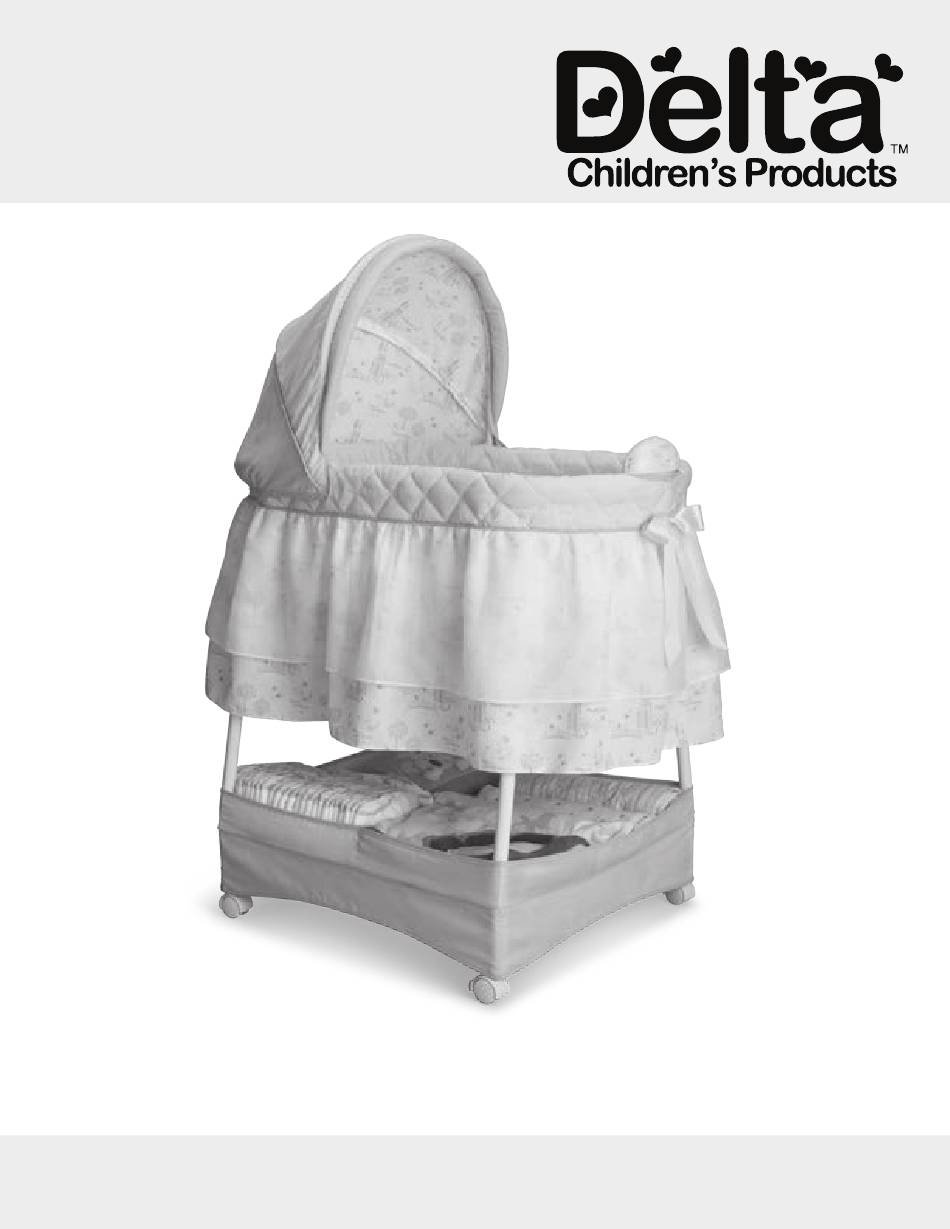

GLIDING BASSINET
27202-XXX GBV3
ASSEMBLY INSTRUCTIONS
ADULT ASSEMBLY REQUIRED
Required: Phillips Screwdriver (not included)
IMPORTANT: Read all instructions before assembly and use of the product.
Keep the instructions for future reference.
Customer Care Tel. 1-(800)-377-3777
Styles and colors may vary
(C)
www.DeltaChildrensProducts.com
DCP Cat# 10-26-12-V3
Advertisement
Table of Contents
Related Manuals for Delta Childrens Products 27202 GBV3 Series
Summary of Contents for Delta Childrens Products 27202 GBV3 Series
- Page 1 GLIDING BASSINET 27202-XXX GBV3 ASSEMBLY INSTRUCTIONS ADULT ASSEMBLY REQUIRED Styles and colors may vary Required: Phillips Screwdriver (not included) IMPORTANT: Read all instructions before assembly and use of the product. Keep the instructions for future reference. www.DeltaChildrensProducts.com Customer Care Tel. 1-(800)-377-3777 DCP Cat# 10-26-12-V3...
-
Page 2: Consumer Information
Consumer Information WARNING Failure to follow these warnings and instructions could result in serious injury or death. • Read all instructions before assembling unit. KEEP INSTRUCTIONS FOR FUTURE USE. DO NOT USE THIS UNIT IF THE INSTRUCTIONS CANNOT BE STRICTLY FOLLOWED. •... - Page 3 Parts IMPORTANT! Please remove all parts from the package and identify them before assembly. Fabric Liner Fabric Storage Liner Frame Base Legs Mattress Pad Support Tubes X4 Mattress Support Canopy Locking Caster (X4) G8 x 4cm Screw – 8 Sheet M6 x 2cm Screw –...
-
Page 4: Bassinet Assembly
Bassinet Assembly Support Legs Plastic Slider Support Note: You may need the help of another adult to help steady all parts for assembly. • Place the frame on a flat surface with the support legs facing up. • Locate the four (x4) support tubes. •... - Page 5 Bassinet Assembly • Locate the four (x4) casters. • Insert the casters into the base legs. Push down until you hear the caster “click” into place. • Pull up on the caster to assure it is properly attached to the bassinet. •...
- Page 6 Attaching Music Module (Bassinet Assembly) • To attach Music Module, remove screw plate in Music Module. • Plug battery power line on underside of mattress support to Music Module. Loosen screws • Locate battery Compartment on underside of Mattress Support. Loosen screws in Battery Compartment with Phillips Head screwdriver.
- Page 7 Bassinet Assembly Mattress Board Plastic Mattress *Not Actual Size Board Support • Locate the mattress board and four (x4) M6 X 2cm screws. • Place the mattress board into the frame lining up the four through holes with the plastic mattress board support nuts. •...
- Page 8 Consumer Information WARNING Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. • A mobile is intended for visual stimulation and is not intended to be grasped by the child. • From birth to 5 months. •...
-
Page 9: Battery Safety Information
Battery Safety Information In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Do not mix old and new batteries or batteries of different types: Alkaline, standard (carbon zinc) or rechargeable (nickel-cadmium). - Page 10 Locking/Unlocking Bassinet Care Lock Arm • The frame, mattress pad, storage basket, canopy, mobile and mobile arm may be wiped clean using a mild cleaning solution and a damp cloth. Do not use bleach. Do not use harsh or abrasive cleaners. Rinse clean with water to remove residue.
- Page 11 Notes Customer Service www.DeltaChildrensProducts.com Tel. (800) 377-3777...
- Page 12 Manufactured for and distributed by: 114 West 26th Street, New York, NY 10001 Customer Service Tel. 1-(800)-377-3777 www.DeltaChildrensProducts.com customerservice@DeltaChildrensProducts.com MADE IN CHINA...
