Delta Childrens Products 7334-A Assembly Instructions Manual

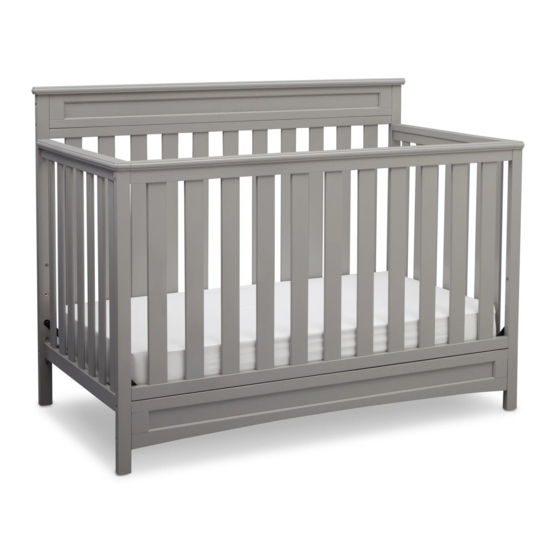

Geneva 4-in-1 crib
Hide thumbs
Table of Contents

Advertisement

Quick Links

4 in 1 Crib
THIS PRODUCT IS NOT INTENDED FOR
INSTITUTIONAL OR COMMERCIAL USE.
When contacting Delta Consumer Care please reference the above information. Before contacting Delta
Consumer Care please ensure that the information above matches the information found on the label on
the Crib End bottom rail, please reference the information found on the product when contacting Delta
Consumer Care.
To register your product for important safety alerts and updates to your product please visit
www.DeltaChildren.com and click on Product Registration.
APRIL 12, 2014, 24560, R1
Read all instructions before assembly and use.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly, keep out of
reach of children until assembly is complete.
Consumer Care:
www.DeltaChildren.com
Delta Children's Products
114 West 26th Street
New York, NY 10001
Style #:
Date:
Conforms to
ASTM F1169 Full
Size Crib & F1821
Safety Standards
Tele.212-645-9033
___________
Lot:
___________
___________
©2014 DELTA ENTERPRISE CORP.
A
REV

Advertisement

Table of Contents
loading

Related Manuals for Delta Childrens Products 7334-A

Summary of Contents for Delta Childrens Products 7334-A

  • Page 1 Read all instructions before assembly and use. KEEP INSTRUCTIONS FOR FUTURE USE. ADULT ASSEMBLY REQUIRED Due to the presence of small parts during assembly, keep out of reach of children until assembly is complete. 4 in 1 Crib Consumer Care: www.DeltaChildren.com Delta Children’s Products 114 West 26th Street...
  • Page 2 CAUTION: ANY MATTRESS USED IN THIS CRIB SHALL BE AT LEAST 27 1/4 BY 51 5/8 IN. WITH A THICKNESS NOT EXCEEDING 6 IN. WARNING: *Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant.
  • Page 3 TODDLER BED WARNING INFANTS HAVE DIED IN TODDLER BEDS FROM ENTRAPMENT. Openings in and between toddler bed parts can entrap head and neck of a small child. NEVER use toddler bed with children younger than 15 months. ALWAYS follow assembly instructions. The maximum user weight is 50lbs (22.7kg) WARNING STRANGULATION HAZARD...
  • Page 4 PARTS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT. A. Back Top Rail x 1 Part # 24291 B. Back Rail x 1 H. Right Back Post x 1 G. Left Back Post x 1 Part # 24559 Part # 24298 Part # 24297 D.

  • Page 5: Table Of Contents

    PARTS: HARDWARE KIT IS PART #24299-988 FOR COLOR 648. SEE FRONT COVER. K. M6 x 75 mm Bolt x 10 Part # 5472 No drills necessary. Do not use power screwdriver. L. M6 x 55 mm Bolt x 6 Flat Head Screwdriver Part # 5468 (not supplied) N.
  • Page 6 Section 1: Crib Assembly Step 1 Parts and tools required to complete step. E. Left Crib Side x 1 H. Right Back Post x 1 R. M6x17mm Barrel Nut x 4 LEFT INSIDE BOTTOM LABEL PRODUCT LABEL M4 Allen Wrench Supplied G.
  • Page 7 Section 1: Crib Assembly Step 2 Parts and tools required to complete step. K. M6 x 75 mm Bolt x 2 M4 Allen Wrench Supplied B. Back Rail x 1 From Step 1 R. M6x17mm Barrel Nut x 2 Attach (1) Back Rail (Part B) to the assemblies from step 1 using (2) M6x75 mm Bolts (Part K) and (2) M6 x 17 mm Barrel Nuts (Part R).
  • Page 8 Section 1: Crib Assembly Step 3 Parts and tools required to complete step. A. Back Top Rail x 1 From Step 2 M4 Allen Wrench Supplied L. M6 x 55 mm Bolt x 2 K. M6 x 75 mm Bolt x 2 R.

  • Page 9: Part

    Section 1: Crib Assembly Step 4 Parts and tools required to complete step. M4 Allen Wrench Supplied J. Mattress Support x 1 From Step 3 N. M6 x 18 mm Bolt x 4 Attach the Mattress Support (Part J) in all corners using (1) M6x18 mm Bolt (Part N) in each corner. Tighten with the M4 Allen Wrench.

  • Page 10: Part

    Section 1: Crib Assembly Step 5 Parts and tools required to complete step. C. Front Rail x 1 M4 Allen Wrench Supplied R. M6x17mm Barrel Nut x 2 From Step 4 K. M6 x 75 mm Bolt x 2 Attach (1) Front Rail (Part C) to the assembly from step 4 using (2) M6x75 mm Bolts (Part K) and (2) M6 x 17 mm Barrel Nuts (Part R).

  • Page 11: Part

    Section 1: Crib Assembly Step 6 Parts and tools required to complete step. From Step 5 M4 Allen Wrench Supplied D. Stabilizer Bar x 1 R. M6x17mm Barrel Nut x 4 K. M6 x 75 mm Bolt x 4 P. Φ4x30 mm Metal Pin x 2 Attach (1) Stabilizer Bar (Part D) to the assembly from step 5 using (2) Φ4x30 mm Metal Pins (Part P), (4) M6x75 mm Bolts (Part K) and (4) M6 x 17 mm Barrel Nuts (Part R).

  • Page 12: Part

    Section 1: Crib Assembly Step 7 Parts and tools required to complete step. Read all instructions before assembly and use. KEEP INSTRUCTIONS FOR FUTURE USE. Assembly Instruction ADULT ASSEMBLY REQUIRED Due to the presence of small parts during assembly, keep out of reach of children until assembly is complete.

  • Page 13: Part

    Section 2: Toddler Bed Conversion Step 1 Parts and tools required to complete step. M4 Allen Wrench Supplied Finished Crib Remove the Front Rail and the Stabilizer Bar installed in Step 5 and 6 of Section 1 crib assembly.

  • Page 14: D. Stabilizer Bar X

    Section 2: Toddler Bed Conversion Step 2 Parts and tools required to complete step. M4 Allen Wrench Supplied D. Stabilizer Bar x 1 R. M6x17mm Barrel Nut x 4 From Section 2 Step 1 K. M6 x 75 mm Bolt x 4 Attach (1) Stabilizer Bar (Part D) to the assembly from section 2 step 1 using (4) M6x75 mm Bolts (Part K) and (4) M6x17 mm Barrel Nuts (Part R).
  • Page 15 Section 2: Toddler Bed Conversion Step 3 WARNING: SEE PAGE 3 FOR TODDLER BED WARNINGS The mattress support must be in the lowest position. Store all hardware safely. Read all warnings on page 3. As shown, use as a day bed or love seat sofa. Do Not use without stabilizer bar installed.

  • Page 16: Part

    Section 3: Full Size Bed Conversion Step 1 Parts and tools required to complete step. M4 Allen Wrench Supplied You have the option to convert the crib to a Full Size Bed. Simply follow the steps in reverse order to disassemble the crib.

  • Page 17: Part

    Section 3: Full Size Bed Conversion Step 2 Parts and tools required to complete step. N. M6 x 18 mm Bolt x 4 M4 Allen Wrench From Section 3 Step 1 Supplied Attach Bed Frame to the Headboard (From Section 3 Step 1) using (4) M6x18mm Bolts (Part N). Follow all instructions supplied with the Bed Frame.

  • Page 18: Part

    Consumer Care: www.DeltaChildren.com Delta Children’s Products 114 West 26th Street New York, NY 10001 Tele.212-645-9033 Warranty: This Delta Crib is warranted to be free from defects for a period of 1 year from the date of purchase under normal use. This warranty extends only to the original retail purchaser and is valid only when supplied with proof of purchase, or if received as a gift, when the registration is on file with Delta.
