Overview

The OP831 offers an economical approach for bidirectional insertion loss
measurements for either singlemode cables or multimode cables. For the multimode
testing the OP831 is equipped with a 850nm LED, a 1300nm LED or a switched
850nm/1300nm dual LED source.
The source for the singlemode configuration consists of a dual wavelength laser with
1310nm and 1550nm wavelengths. For all models the power meter is equipped with
a fiber terminated InGaAs detector. The internal 2x2 switch routes the light in either
A-B direction or B-A direction.
The OP831 also can be combined with a 2xN optical switch for the testing of
bidirectional insertion loss on multi-fiber cables, cables harnesses or qualification
testing on a series of cables.

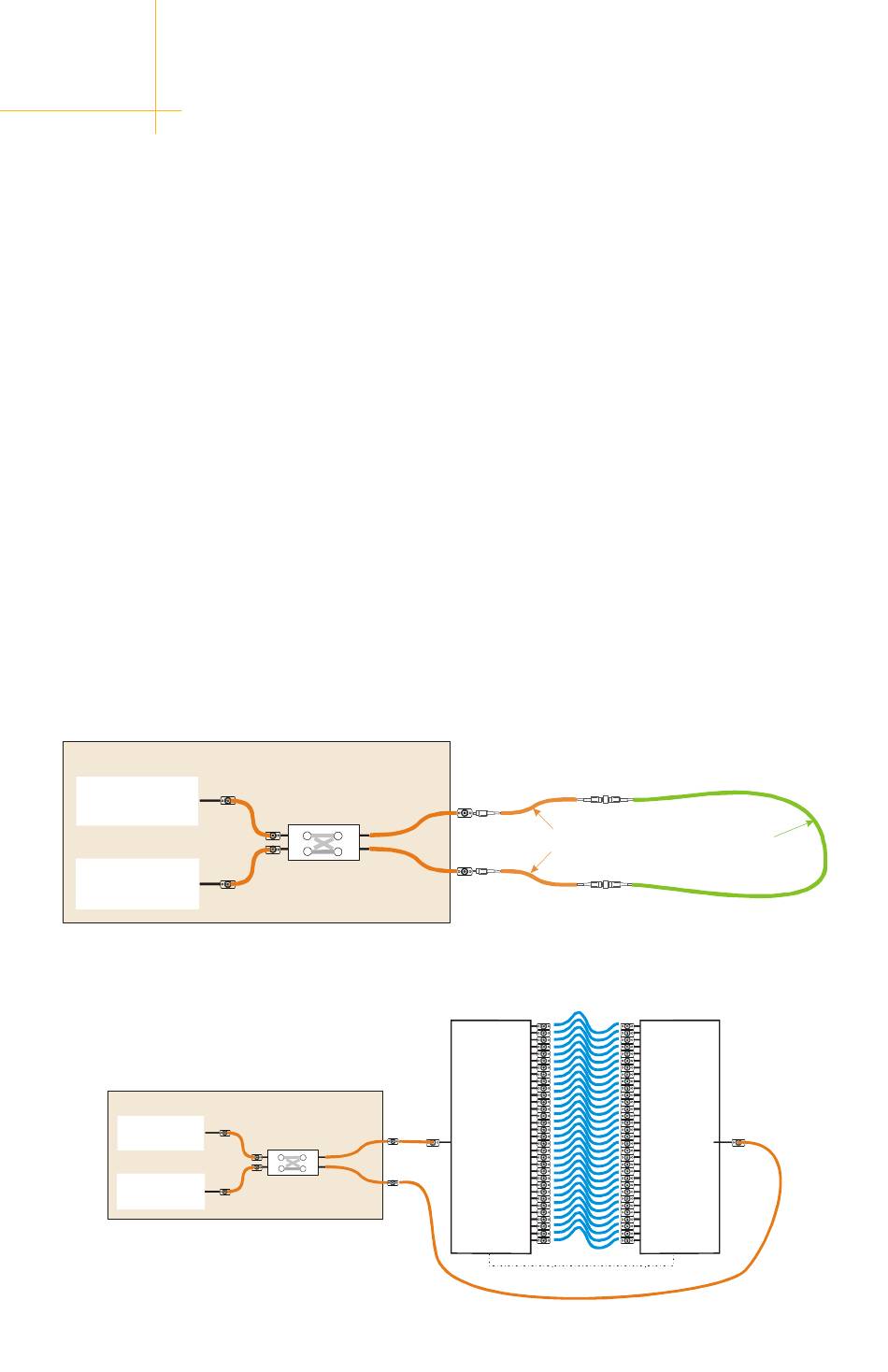

Principle of Operation

Single Cable Bidirectional Operation
OP831 Bidirectional Insertion Loss
LED
Laser
OPM
Multifiber Bidirectional Operation
OP831 Bidirectional Insertion Loss
LED
Laser
OPM
2x2 switch
A
2x2 switch
B
3 of 15
A
reference
cables
B
cables under test
2 xN
Switc h
(A sid e )
cable
under
test
2 xN
Switc h
(B sid e )
