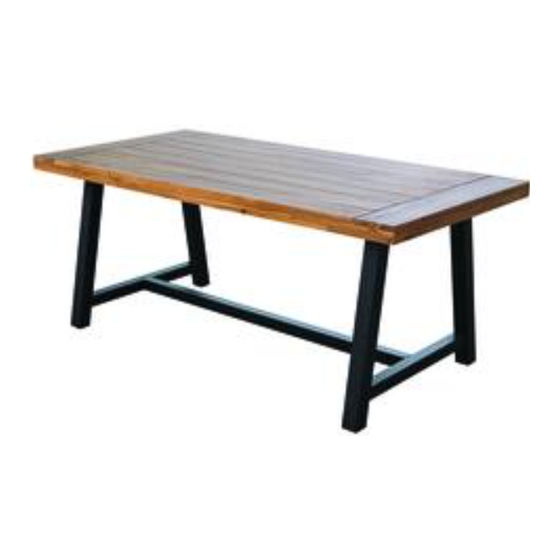

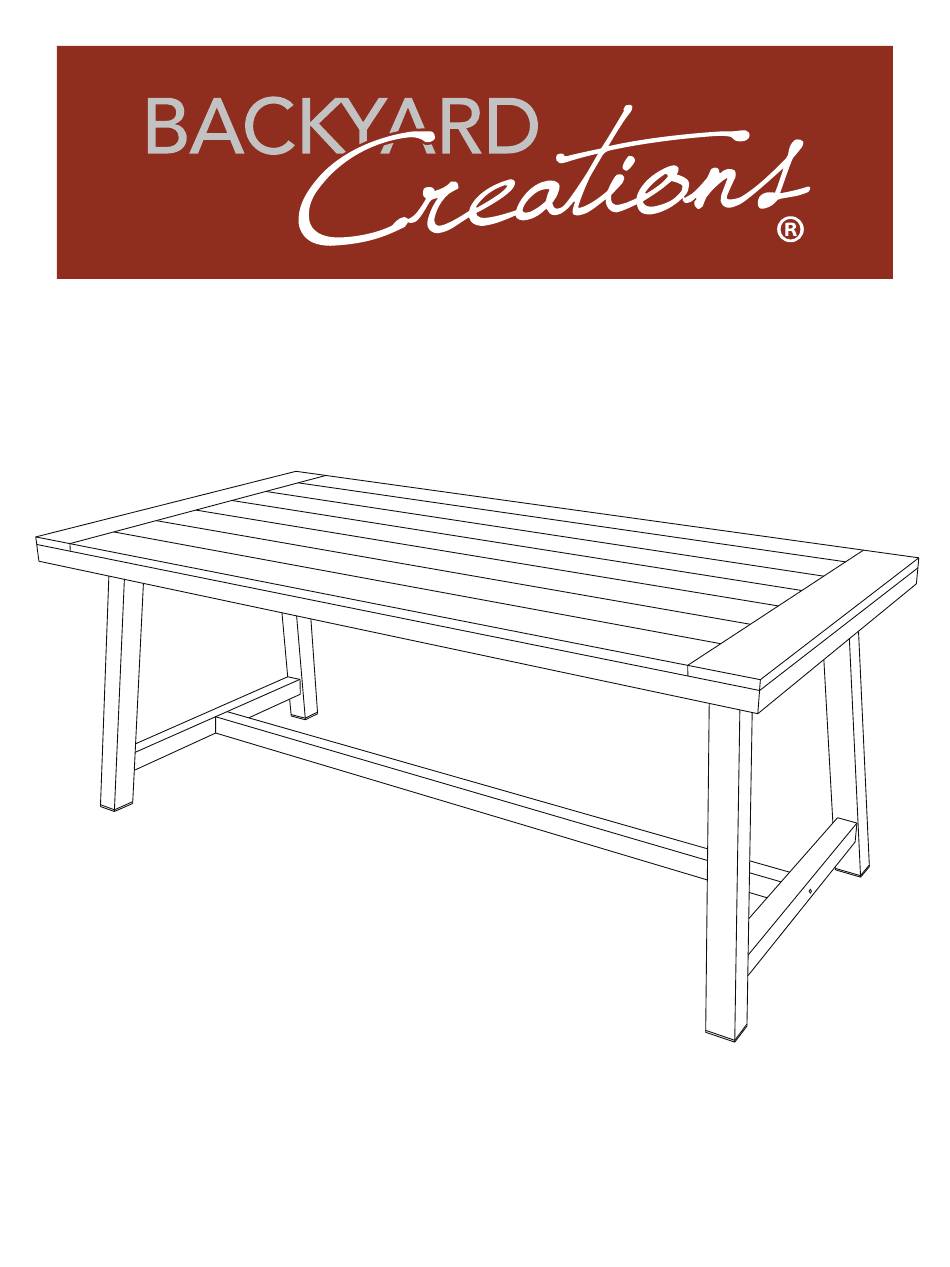

- Page 1 ATKINS WOOD TABLE NATURAL / WALNUT / GRAY SKU # 272-0882, 272-2292, 272-2294 Questions or Missing Parts Please call 1-888-243-9985 between 8:30 am to 5:00 pm EST Or email: service@merryproducts.com Made in Vietnam...
- Page 2 Table of Contents Pre-Assembly .............. 3-4 Table of Contents ............2 Safety Information ............2 Hardware Included .............. 3 Package Contents ..............4 Warranty ..............2 Assembly ..............5-6 1 Year Frame Limited Warranty ..........2 ..............2 What Is Covered What Is Not Covered ..............
- Page 3 Pre - Assembly HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Part Description Quantity Short Bolt (M8x65mm) Spring Washer Big Flat Washers (M8x2mm) Nut M6 Long Bolts (M6x65mm) Allen Key Long Bolts (M6x100mm) Y Wrench Small Flat Washers (M6x2mm)
- Page 4 Pre - Assembly (continued) PACKAGE CONTENTS *Note: DO NOT TIGHTEN ANY BOLTS BEFORE THE UNIT IS PUT TOGETHER. Part Description Quantity Leg Connector...
- Page 5 Note: DO NOT TIGHTEN ANY BOLTS Assembly BEFORE THE UNIT IS PUT TOGETHER. Attaching the legs to the table top and nut (G), using the Allen Wrench (H) and Y Wrench (I). Attaching the legs to the table top - continued Attach the legs (3) to the top (1) with long bolts (D), using the Allen Wrench (H) and Y Wrench (I).
- Page 6 Note: DO NOT TIGHTEN ANY BOLTS Assembly (continued) BEFORE THE UNIT IS PUT TOGETHER. Attaching the leg connector *Note: PROCEED TO FULLY TIGHTEN ALL OF THE HARDWARE.
